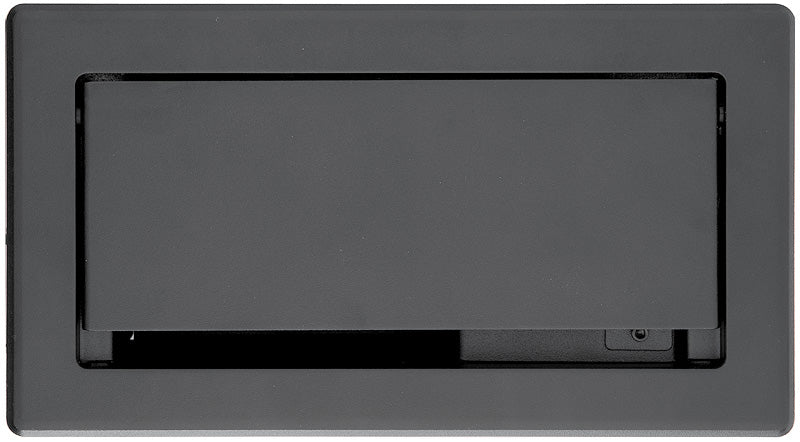

Extron Cable Cubby 202 FR (part number 60-1401-02) — the French-outlet build of the compact Cable Cubby 202 furniture-mount enclosure.

French installations need their own socket pattern at the working surface, and this part number supplies one already fitted inside the enclosure. The rest of the body is given over to a Cable Pass-Through Bracket that accepts up to four AV cables. Because the bracket is split, an integrator can lay a terminated cable into place from the tabletop instead of feeding a connector through from beneath, which matters when the furniture is already assembled and the knee space is inaccessible.

Key Capabilities

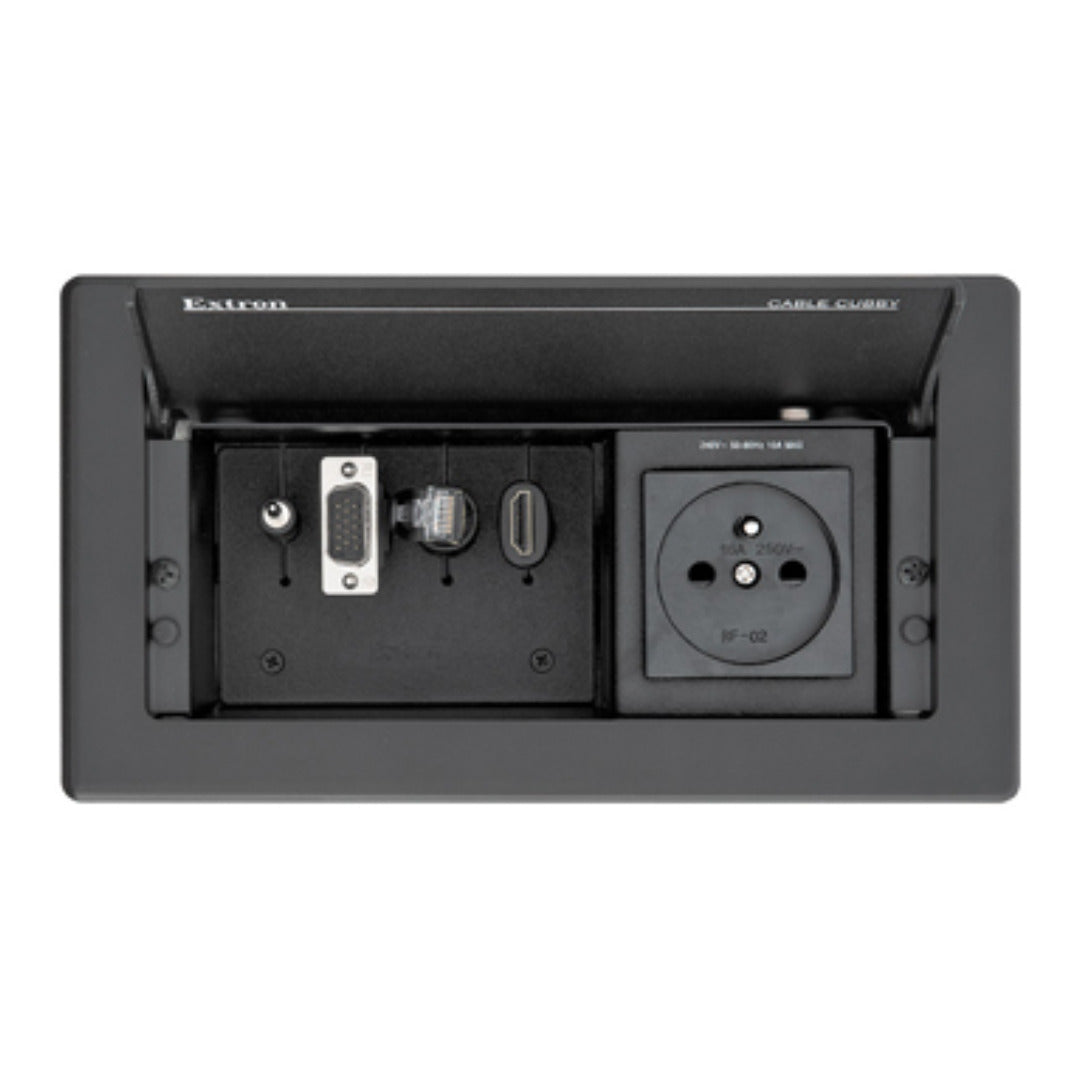

• One unswitched French AC outlet rated 240 VAC, 50-60 Hz, 10 A maximum total.
• Cable Pass-Through Bracket for up to four AV cables.
• Top-service split-ring design keeps maintenance above the table.

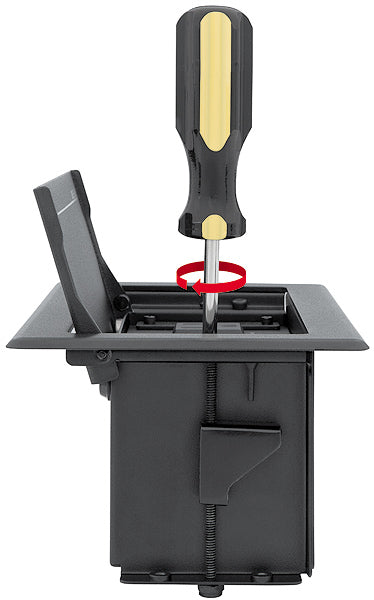

• Integrated clamp system secures the box using common hand tools.
• Metal enclosure 3.20 in (81 mm) deep; allow 2.50 in (64 mm) more for cord bend radius.
• Suits surfaces 0.25 in to 1.75 in (6 mm to 44 mm) thick.

Where It Is Used

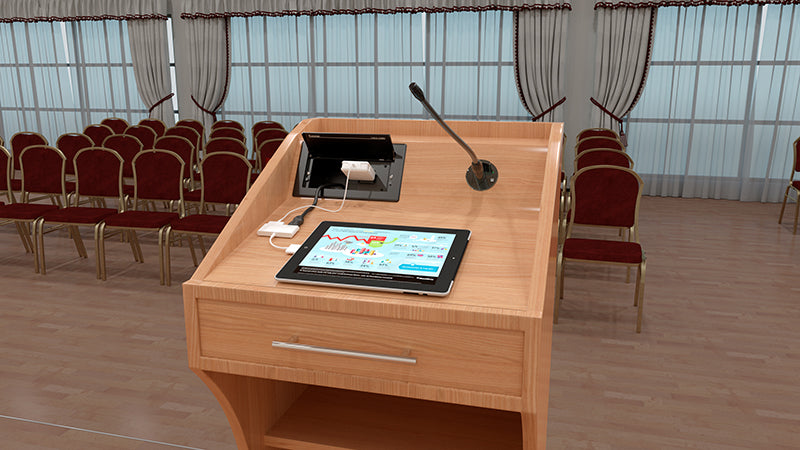

French corporate meeting rooms, university and grande ecole teaching spaces, municipal offices and healthcare conference rooms, particularly on thin desktops where a deeper enclosure will not fit.

Specifications at a Glance

• Power output: 240 VAC, 50-60 Hz, 10 A max total
• Top plate (outer rim): 7.99 in W x 4.39 in D (203 mm x 112 mm)
• Surface cutout: 7.00 in W x 3.25 in D (178 mm x 82 mm)
• Product weight: 1.8 lbs (0.8 kg)
• Warranty: 3 years parts and labor

Optional Retractor and AAP bracket kits are ordered separately. Also referenced as Extron CableCubby202FR, Cable-Cubby-202-FR, part number 60140102.
