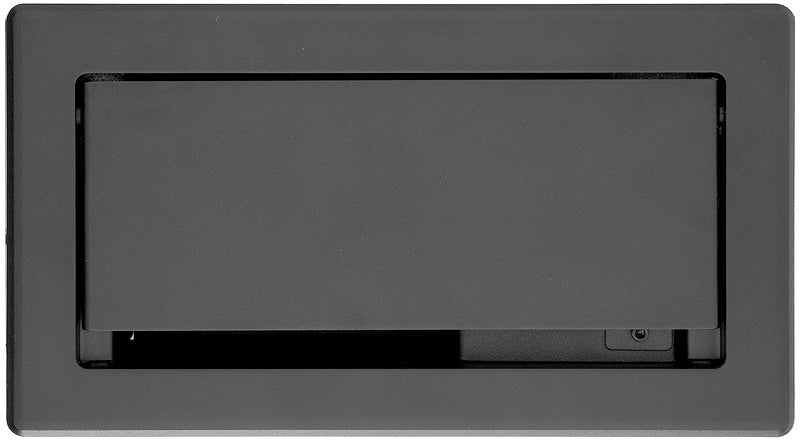

Extron Cable Cubby 202 EU (part number 60-1400-02) — a compact furniture-mount cable access enclosure carrying one unswitched European AC outlet and a Cable Pass-Through Bracket.

The 202 is the small end of the Cable Cubby range: a shallow metal box that gives a desk or table one mains socket and a route for up to four AV cables, without the bulk of a full connectivity enclosure. The bracket uses a split-ring arrangement, so a cable can be dropped in or lifted out from the top of the enclosure after the box has already been fitted. A clamp system built into the body holds it against the furniture using common hand tools.

Key Capabilities

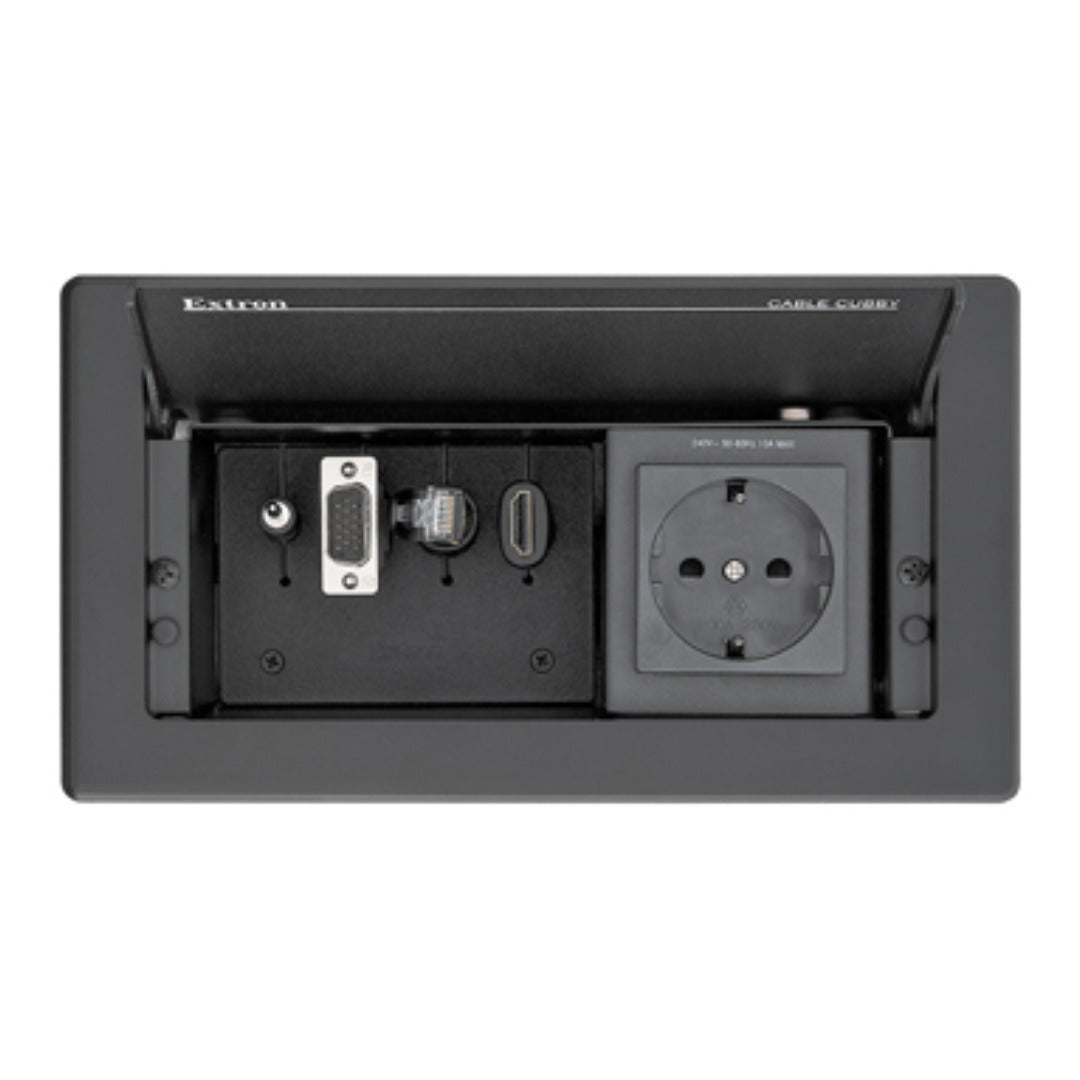

• One unswitched European AC outlet rated 240 VAC, 50-60 Hz, 10 A maximum total.
• Cable Pass-Through Bracket carries up to four AV cables.
• Split-ring bracket lets cables be installed or serviced from above post-install.

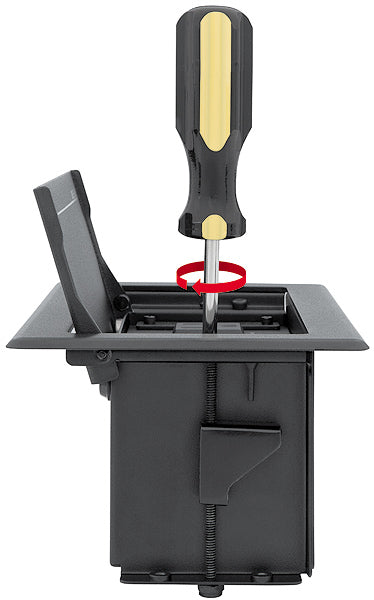

• Integrated clamp system fixes the enclosure with common hand tools.
• Shallow metal body only 3.20 in (81 mm) deep under the surface.
• Fits table surfaces from 0.25 in to 1.75 in (6 mm to 44 mm) thick.

Where It Is Used

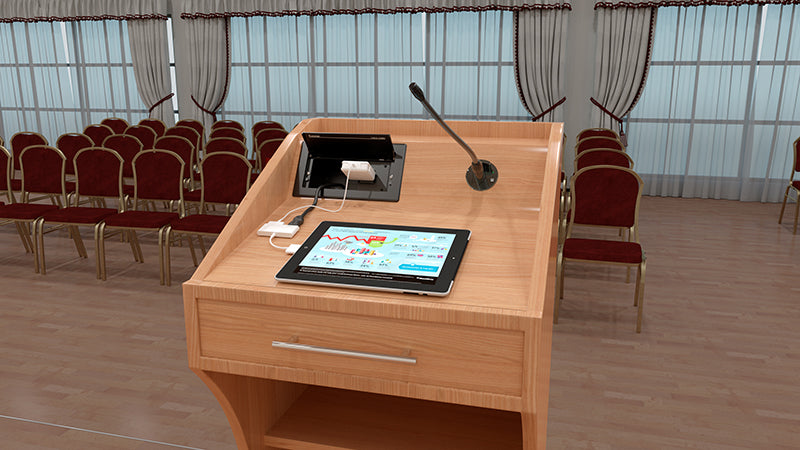

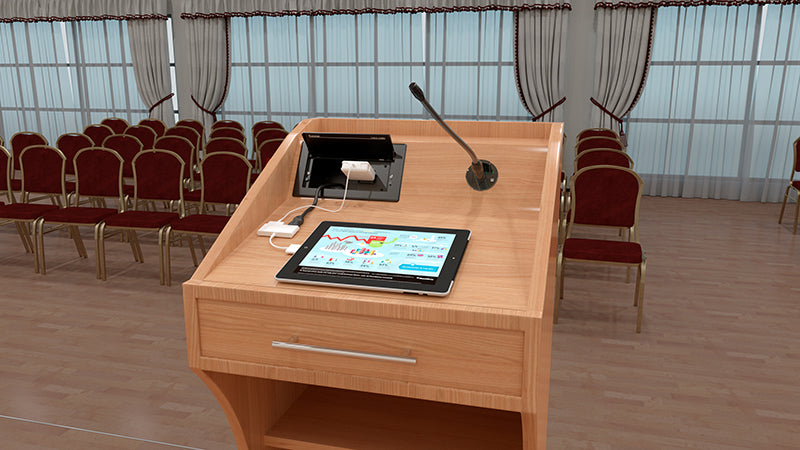

European meeting rooms, hot-desks and touchdown benches, university seminar tables and clinical review desks where a full-size table box would be excessive but a socket and a laptop cable still have to reach the surface.

Specifications at a Glance

• Power output: 240 VAC, 50-60 Hz, 10 A max total
• Top plate (outer rim): 7.99 in W x 4.39 in D (203 mm x 112 mm)
• Surface cutout: 7.00 in W x 3.25 in D (178 mm x 82 mm)
• Product weight: 1.8 lbs (0.8 kg)
• Regulatory: CE, NOM, RoHS, WEEE

Optional Retractor and AAP bracket kits are ordered separately. Also referenced as Extron CableCubby202EU, Cable-Cubby-202-EU, part number 60140002.
