Extron Cable Cubby 1402 (part number 60-1708-02) — a double-sided, furniture-mountable cable access enclosure for AV connectivity, remote control and power.

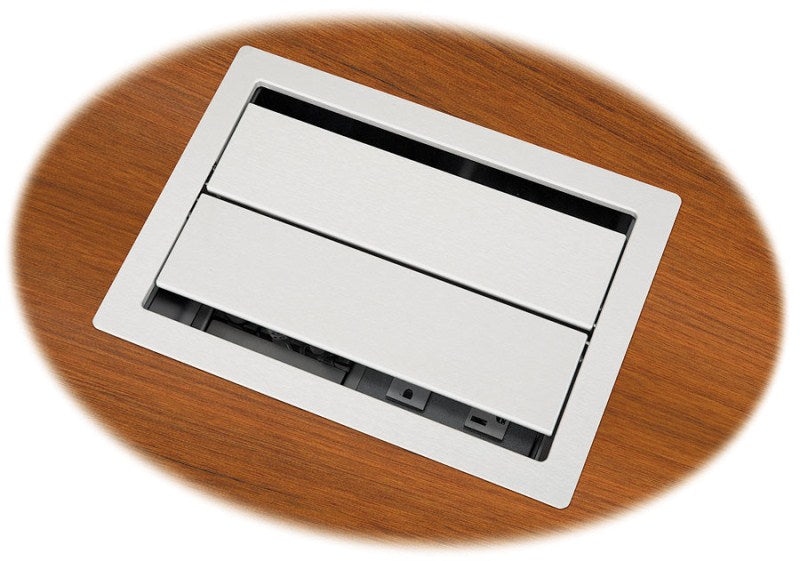

The 1402 is the model to reach for when one central opening has to serve people sitting on both sides of a table. It opens either way, and each side has its own power module bay and its own bracket set for three Retractor modules, eight AV cables, or three single-space AAP AV Connectivity Modules. The redesigned body sits 2 in (51 mm) shallower than the model it replaced, an integrated clamp system fixes it without additional hardware, and a lid damper keeps the action quiet in a live room.

Key Capabilities

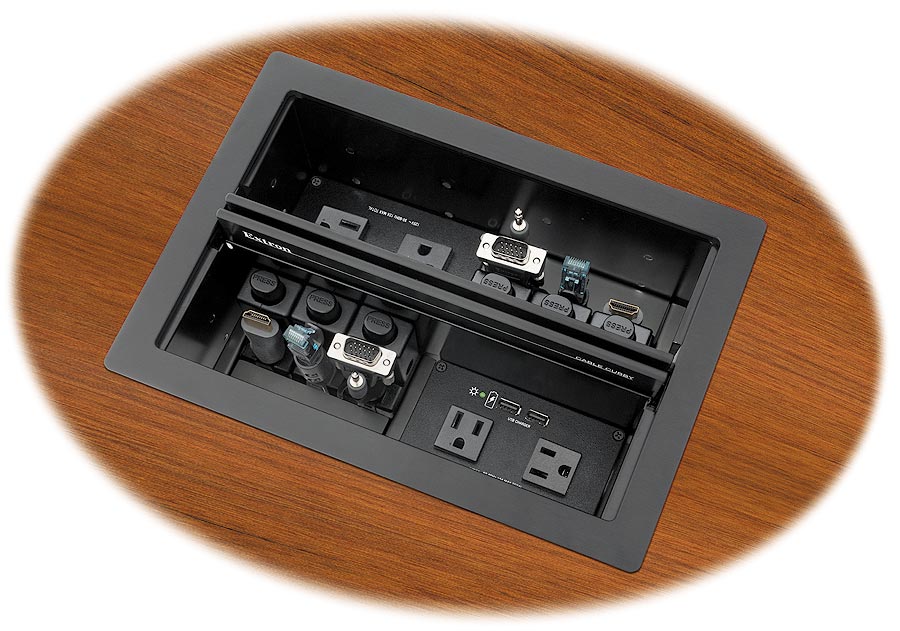

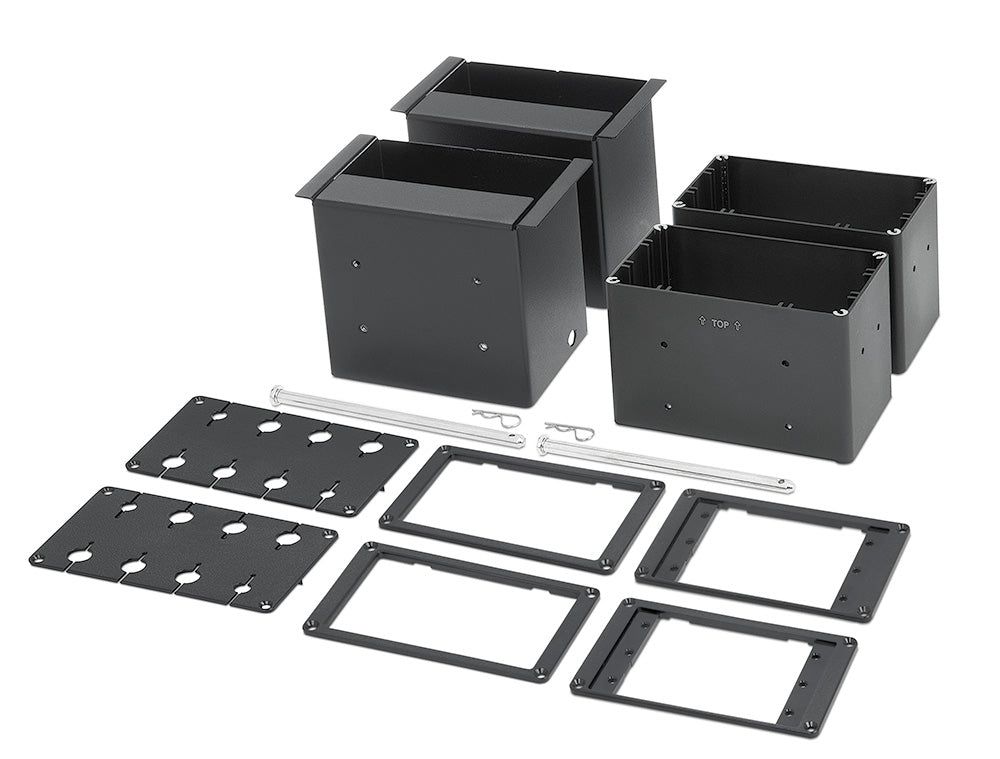

• Double-sided enclosure with independent capacity on each side.

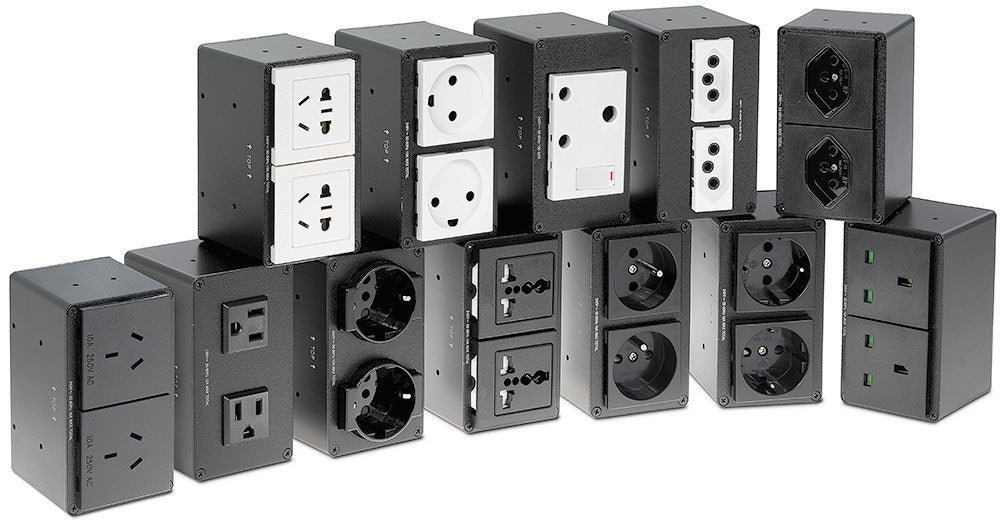

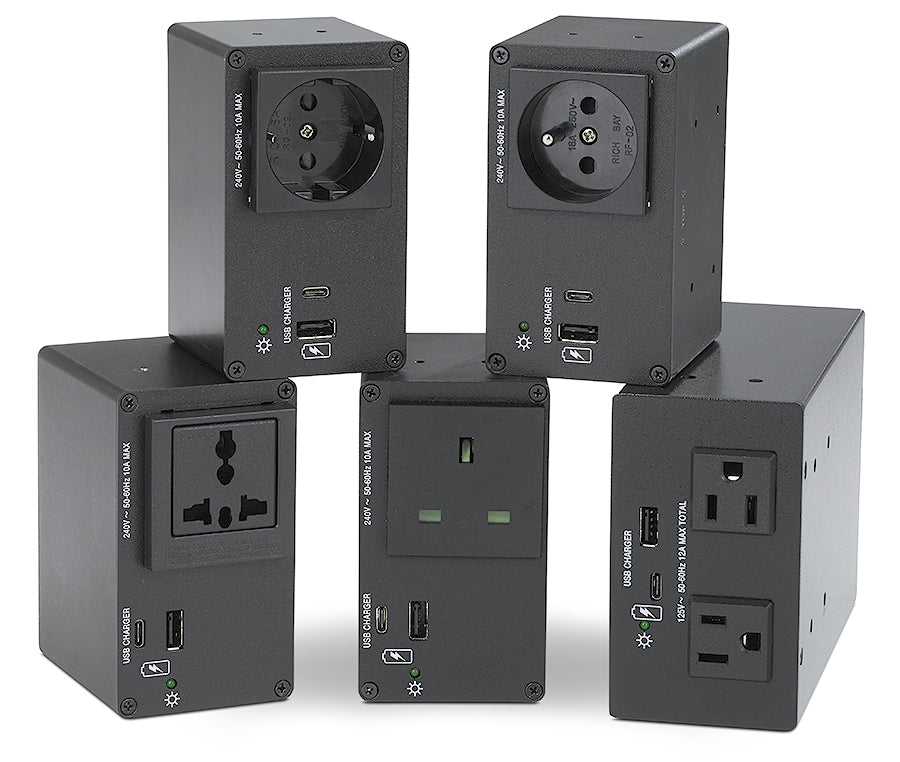

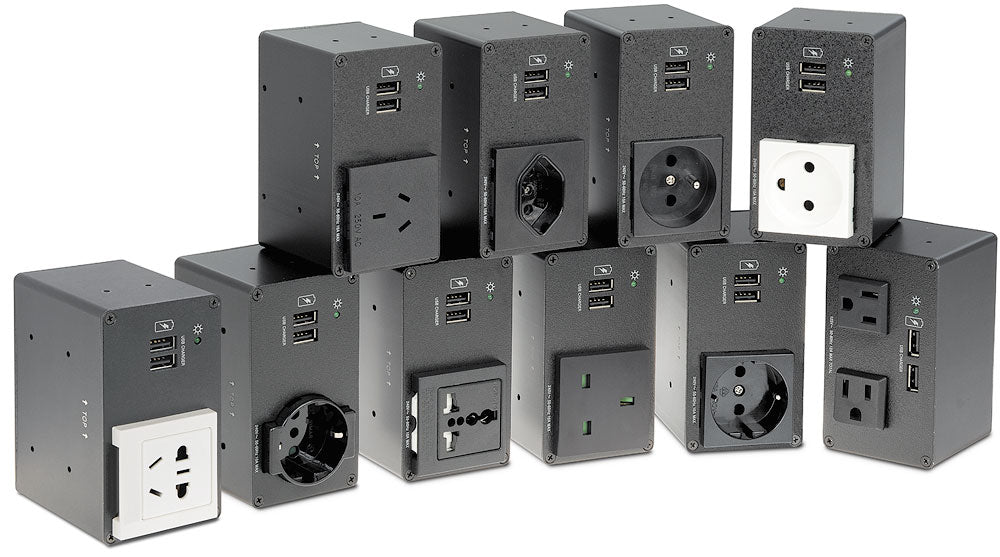

• One AC or AC+USB series power module per side.

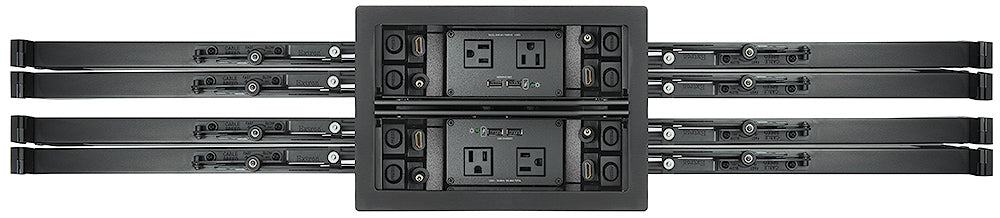

• Retractor Bracket holds three Retractor Series or Retractor Series XL modules.
• Cable Pass-Through Bracket supports up to eight AV cables.
• Connectivity Bracket supports three single-space AAP modules.
• Metal enclosure only 4.46 in (113 mm) deep below the surface.

Where It Is Used

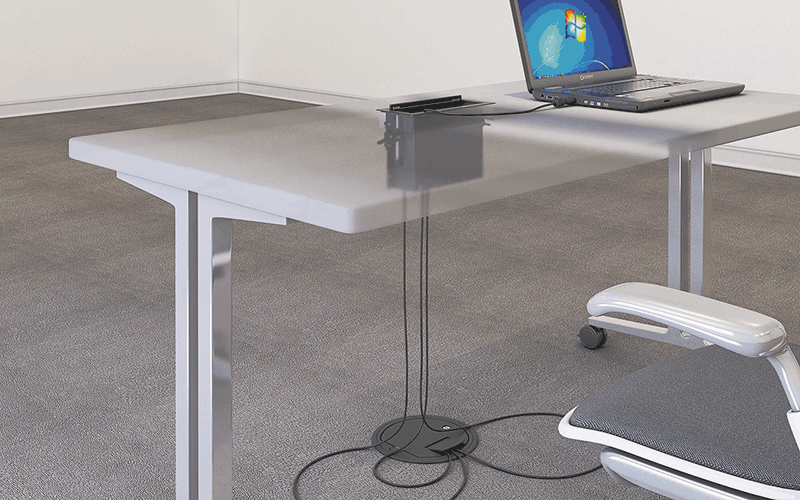

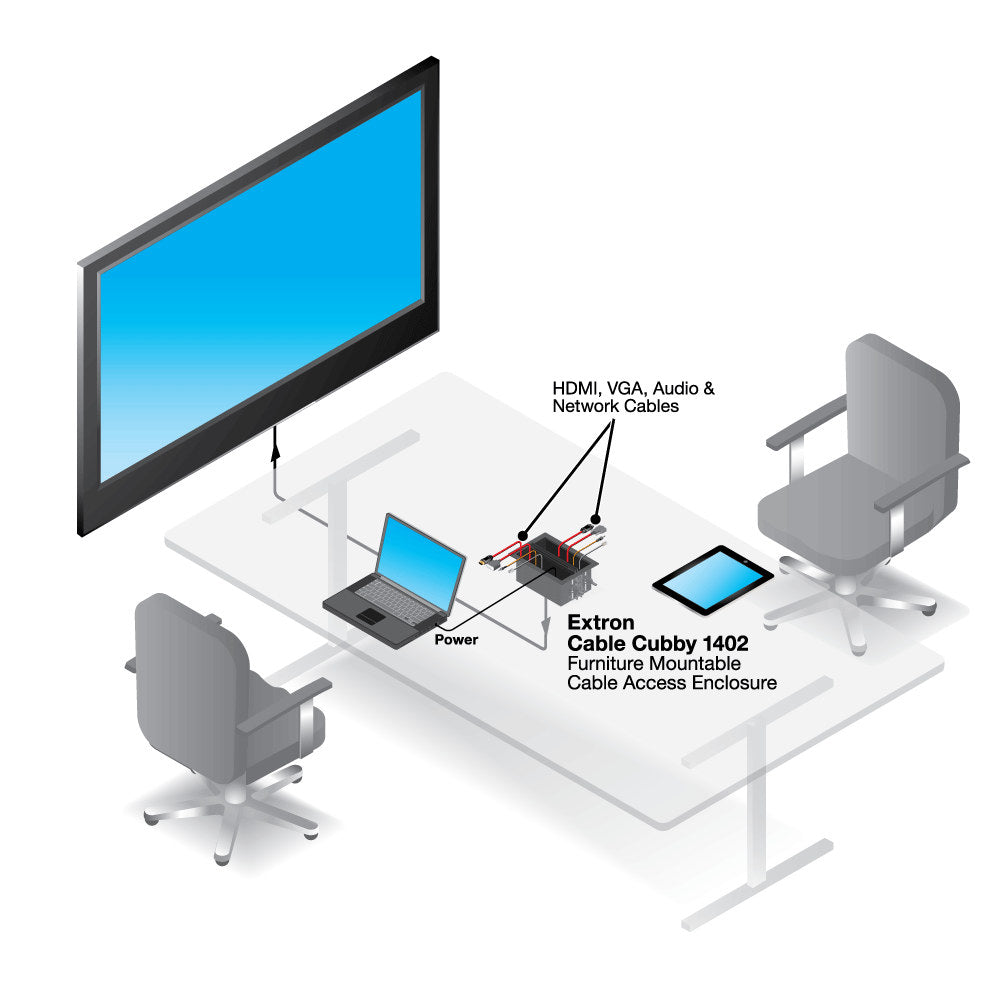

Central positions on long conference tables, lecture-hall benches, council and courtroom furniture, and training rooms where two rows of participants share a single cut in the surface rather than one box each.

Specifications at a Glance

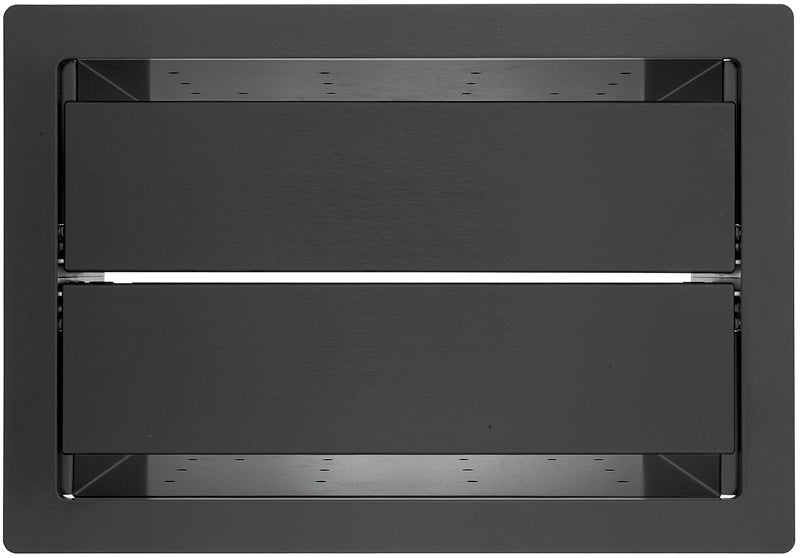

• Top plate (outer rim): 10.57 in W x 7.42 in D (269 mm x 189 mm)
• Surface cutout: 10.00 in W x 6.75 in D (254 mm x 172 mm)
• Enclosure depth: 4.46 in H (113 mm)
• Table thickness range: 0.50 in to 2.50 in (13 mm to 63 mm)
• Regulatory: CE, RoHS, WEEE

Also referenced as Extron CableCubby1402, Cable-Cubby-1402, part number 60170802.
