Extron Cable Cubby 1202 (part number 60-1707-02) — a slim furniture-mountable cable access enclosure for AV connectivity, remote control and power.

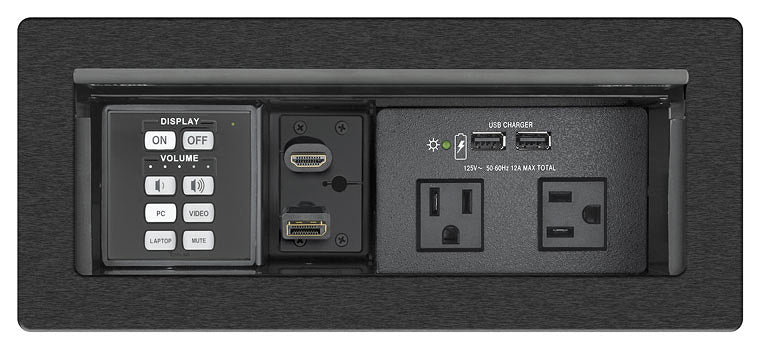

The 1202 was redesigned to sit 2 in (51 mm) shallower than the model before it, which is the difference between fitting and not fitting on a thin desk or a folding table. Inside, the enclosure carries one AC or AC+USB series power module along with the brackets needed for three Retractor modules, eight AV cables, or three single-space AAP AV Connectivity Modules. An integrated clamp system pulls the body against the underside of the surface without any additional hardware, and a lid damper keeps the closing action quiet.

Key Capabilities

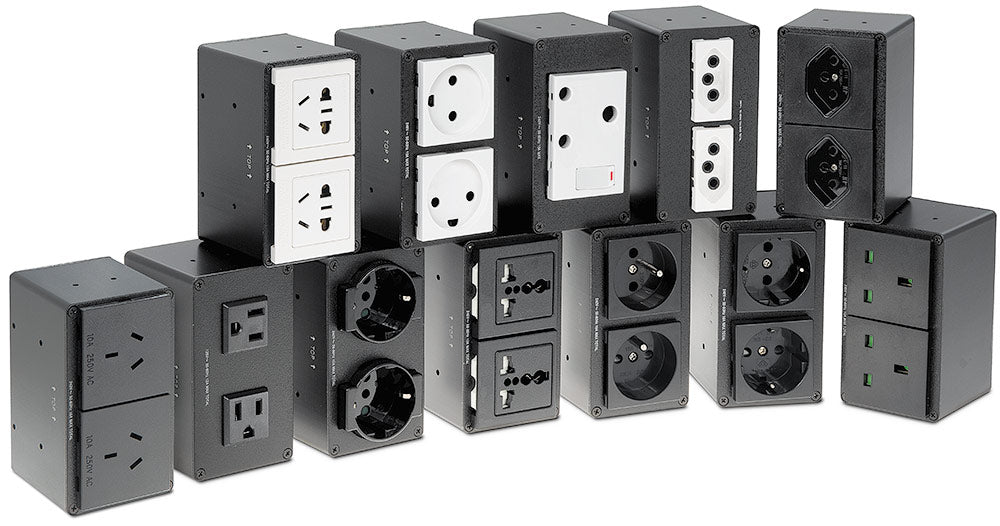

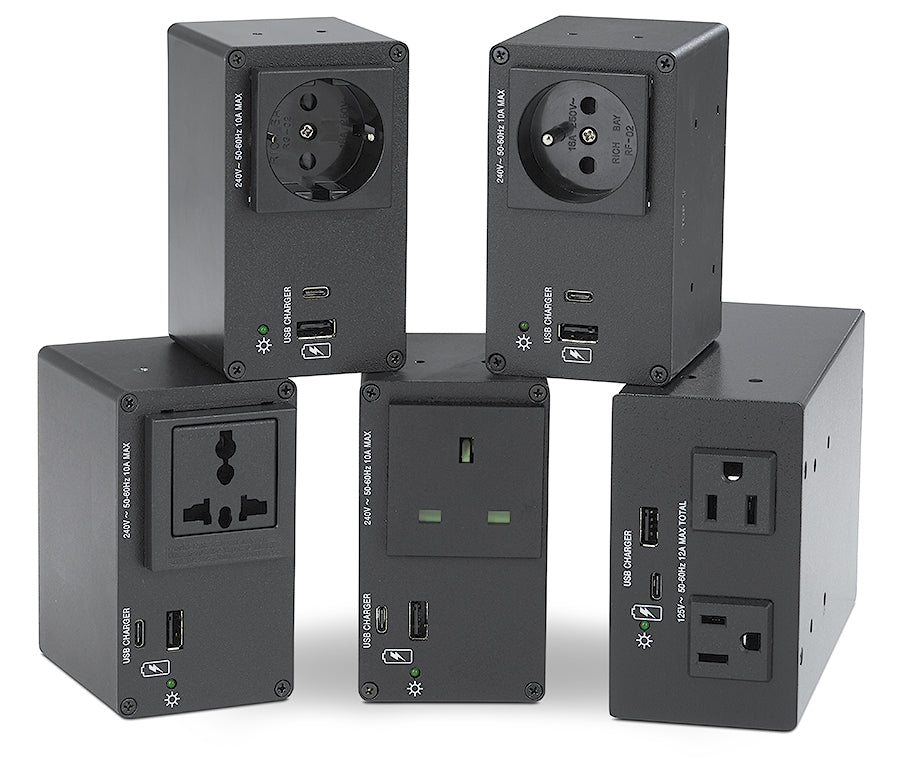

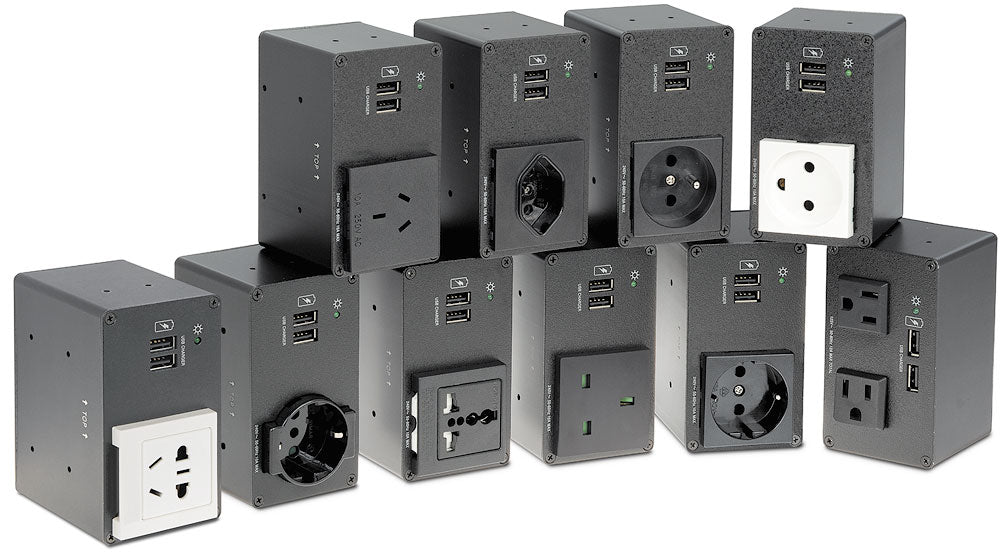

• Takes one AC or AC+USB series power module.

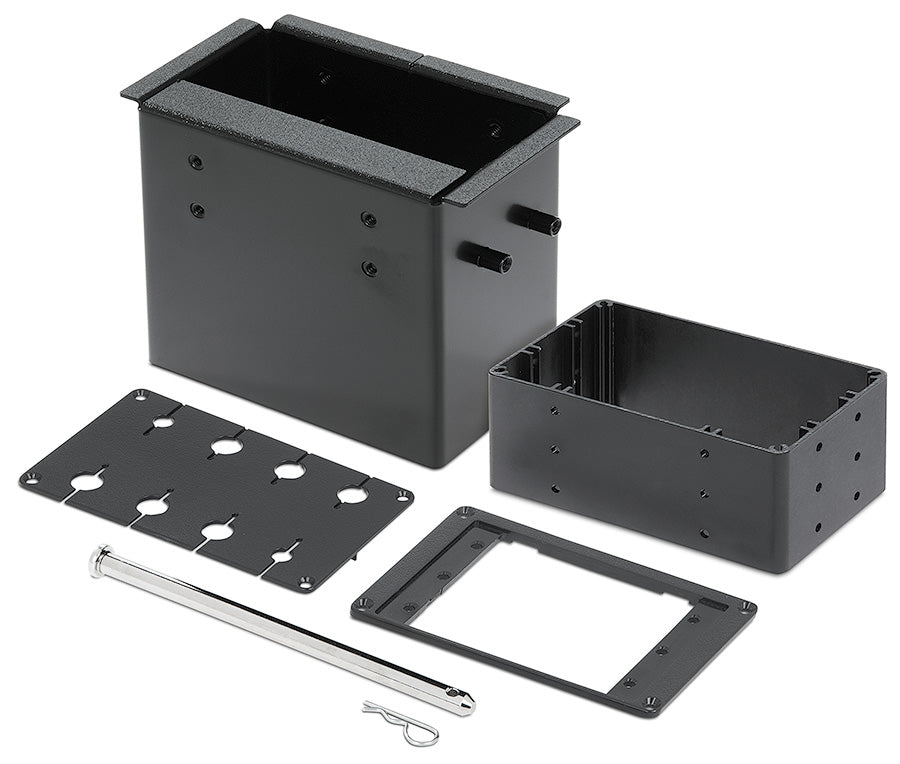

• Retractor Bracket holds three Retractor Series or Retractor Series XL modules.
• Cable Pass-Through Bracket supports up to eight AV cables.
• Connectivity Bracket supports up to three single-space AAP modules.
• Integrated clamp system secures the enclosure without extra parts or tools.
• Metal enclosure only 4.46 in (113 mm) deep below the surface.

Where It Is Used

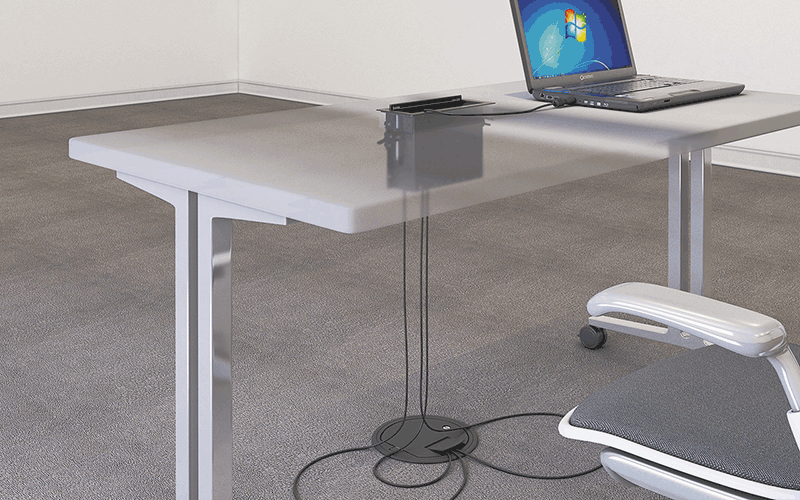

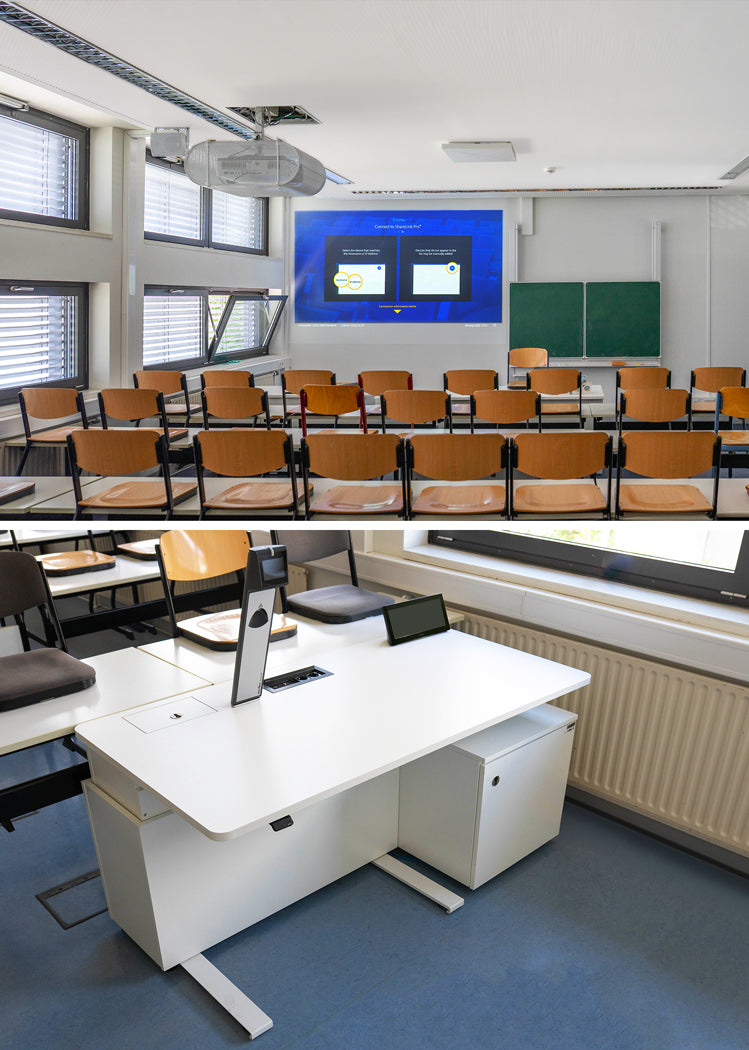

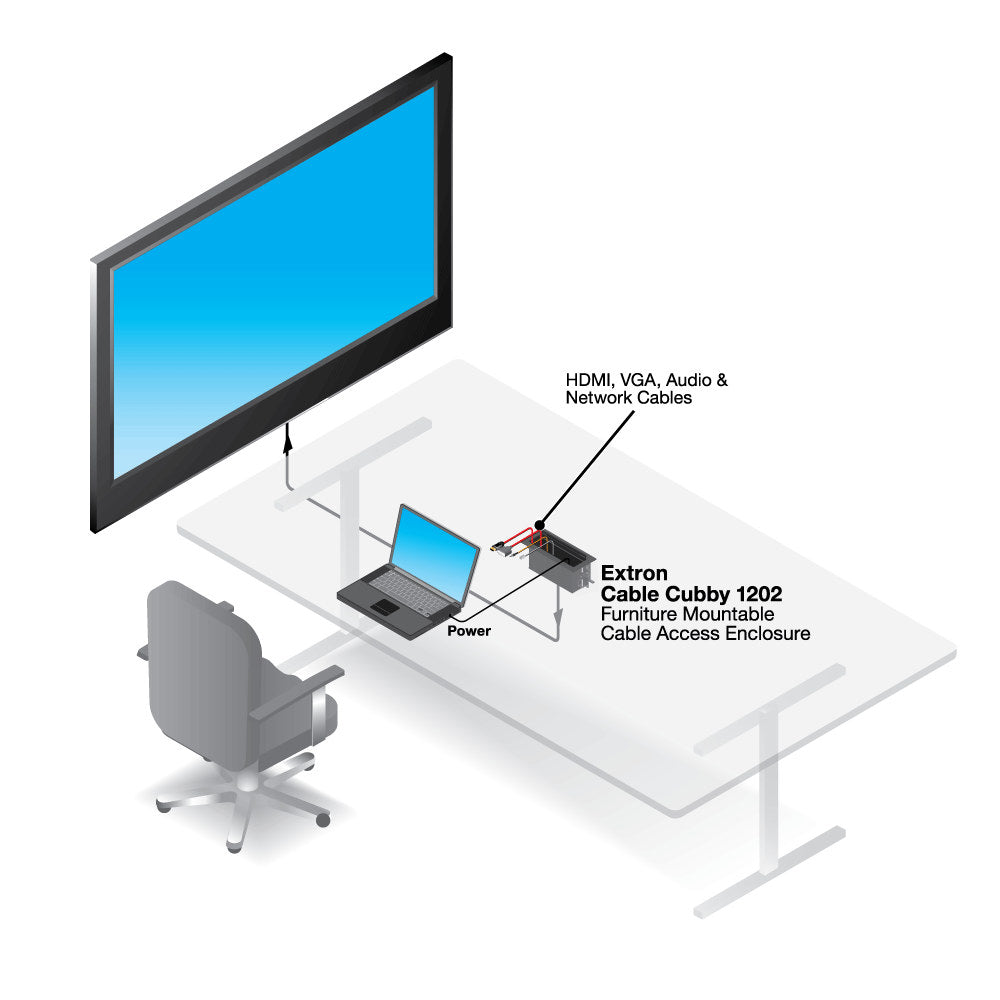

Conference tables, desks, lecterns and shared work areas where under-surface space is limited. The shallow body suits modular rooms with semi-permanent folding tables, and the top-service design keeps maintenance out of the knee space.

Specifications at a Glance

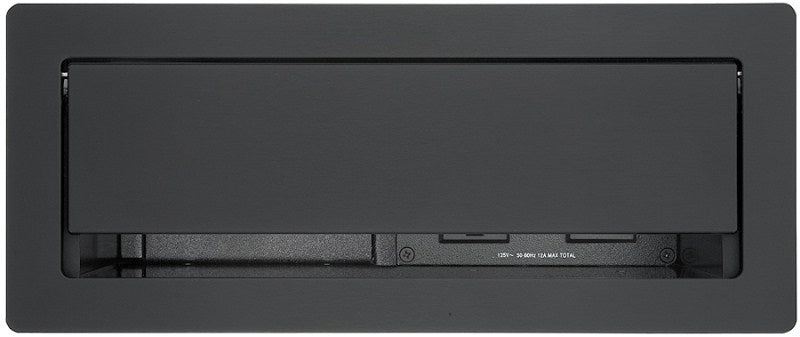

• Top plate (outer rim): 10.57 in W x 4.58 in D (269 mm x 116 mm)
• Surface cutout: 10.00 in W x 4.00 in D (254 mm x 102 mm)
• Enclosure depth: 4.46 in H (113 mm)
• Table thickness range: 0.50 in to 2.50 in (13 mm to 63 mm)
• Regulatory: CE, RoHS, WEEE

Also referenced as Extron CableCubby1202, Cable-Cubby-1202, part number 60170702.
