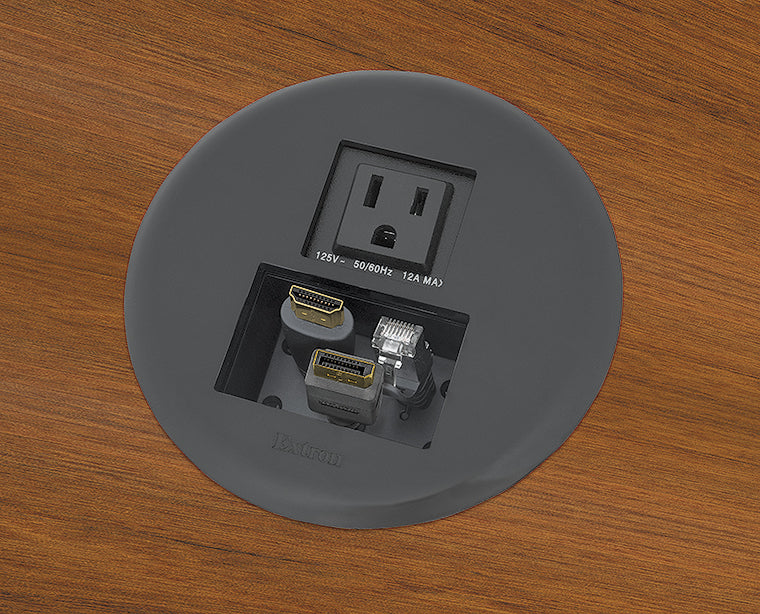

Extron Cable Cubby 100 US AC (part number 60-1592-01) — the US-market powered build of Extron's round furniture-mount table box, combining one AC outlet with AV connectivity in a single 4 in cutout.

Where a presenter needs both a laptop connection and somewhere to plug a charger, running two separate boxes into the tabletop is wasted joinery. This configuration puts an unswitched US AC outlet inside the same enclosure that carries the signal path, leaving room for two MAAP Mini AV Connectivity Modules, one Retractor Series module, or three AV cables alongside it. The bezel sits flush with the surface and the split-ring opening means a lead can be added or swapped later without pulling the box.

Key Capabilities

• One unswitched US AC power outlet rated 125 VAC, 50-60 Hz, 6 A maximum.
• Room alongside the outlet for two MAAP modules, one Retractor module, or three AV cables.
• Installs into a single 4.00 in (102 mm) round hole cut in the furniture surface.
• Metal body with a plastic top bezel measuring 5.20 in (132 mm) across.
• Listed to c-UL and UL, and compliant with RoHS and WEEE.
• Installed weight of 2.0 lbs (0.9 kg) with the US AC module fitted.

Where It Is Used

North American boardrooms, training rooms, university lecterns, and hospital conference suites where each seat or presentation position needs mains power plus a video and audio connection from one small opening in the table.

Specifications at a Glance

• Power output: 125 VAC, 50-60 Hz, 6 A max
• Surface cutout: 4.00 in (102 mm) diameter circle
• Enclosure under surface: 2.70 in H x 2.80 in W x 3.48 in L
• Product weight with US AC module: 2.0 lbs (0.9 kg)
• Warranty: 3 years parts and labor

Also referenced as Extron CableCubby100USAC, Cable-Cubby-100-US-AC, part number 60159201.
