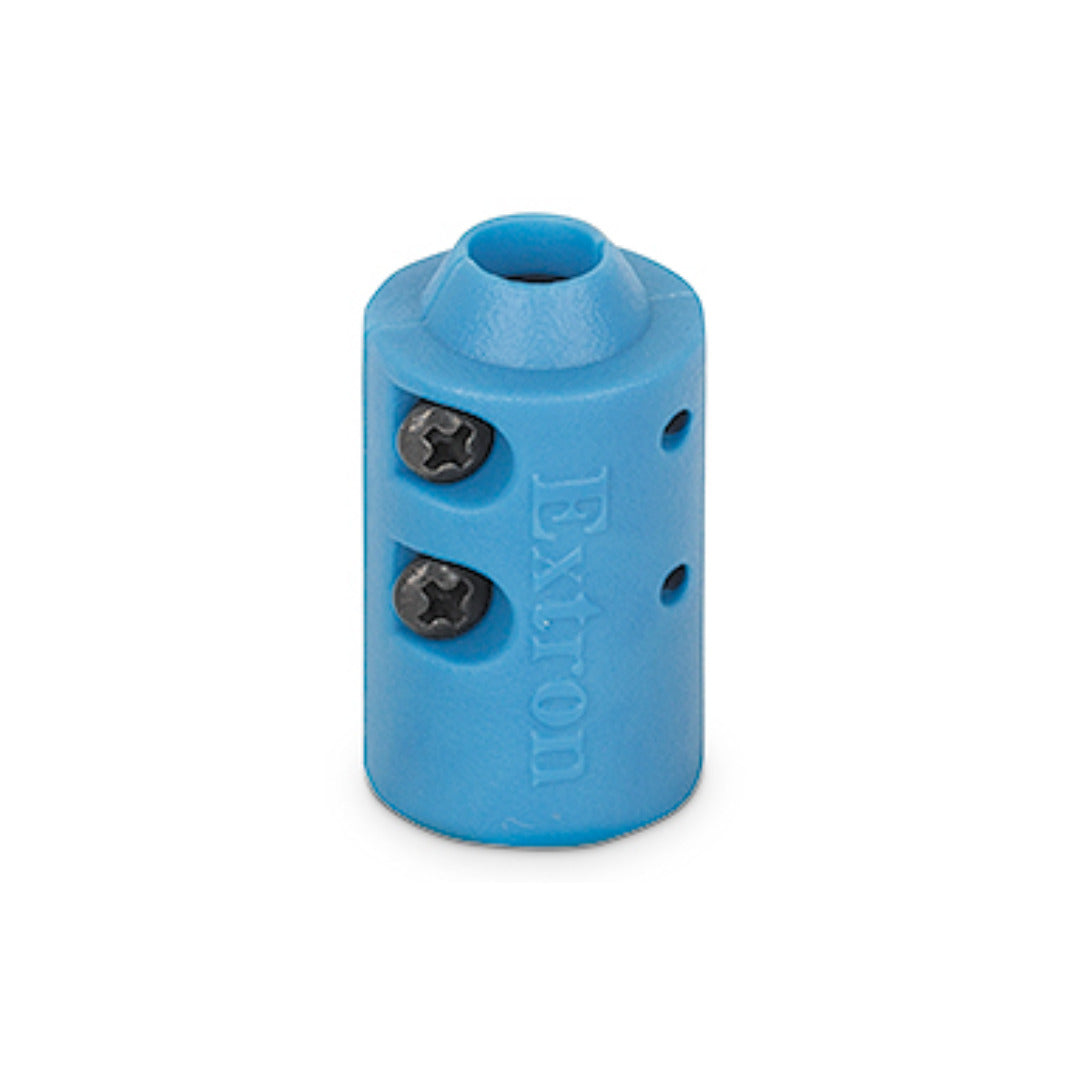

Extron Cable Collar Kit (part number 70-1067-13) — ten blue cable collars that hold pass-through leads upright and mark them clearly by color.

In a table box shared by video, audio, and power leads, the fastest way to cut user error is to give each signal type its own color. This kit supplies ten blue collars, each of which closes around a single cable and seats it vertically in the well of an Extron Cable Cubby, TouchLink, or AVEdge enclosure. The cable stops slumping, the connector stays reachable, and blue becomes a permanent visual label for whichever source the integrator assigns it to.

Key Capabilities

• Ten blue collars in every kit, one color throughout, for consistent room-to-room coding.
• Cover and base halves locate on molded pins, then close with four supplied fasteners.
• Base slot clears breakout cabling, including a VGA lead carrying a separate audio tail.
• Collar measures 25.4 mm long with a 5.6 mm inner diameter for a close cable fit.
• Plastic construction complying with the applicable RoHS and WEEE requirements.
• Backed by a 3-year parts and labor warranty from Extron.

Where It Is Used

Boardrooms and divisible meeting rooms, university lecture theatres, and training suites where a Cable Cubby feeds a table full of laptops. It is equally useful in AVEdge and TouchLink installations running Retractor Series modules that need each lead to return along a clear path.

Specifications at a Glance

• Color and quantity: blue, 10 collars
• Collar dimensions: 1.0" L x 0.6" OD x 0.22" ID (25.4 mm L x 15.2 mm OD x 5.6 mm ID)
• Material: plastic
• Product weight 0.1 lbs (0.1 kg); shipping weight 1 lb (1 kg)
• Vibration: ISTA 1A in carton

Cables and Retractor Series modules are ordered separately. Also referenced as Extron CableCollarKit, Cable-Collar-Kit, part number 70106713.
