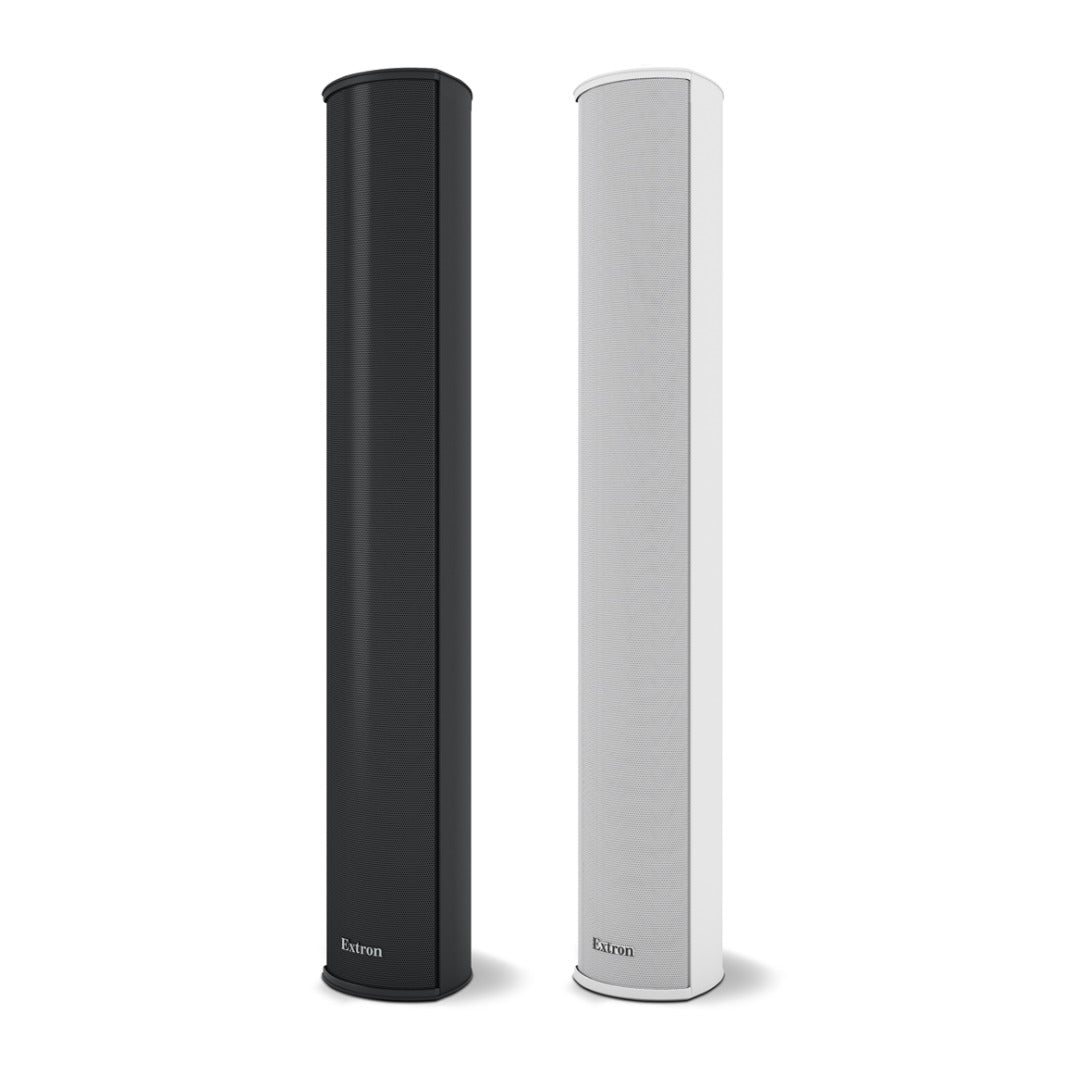

Extron CA 83T PT Column Array Speaker
- • White RAL 9003 powder coat on chassis, endcaps and grille
- • Eight 3 in. drivers, 120 W rms pink noise and 240 W rms program
- • Selectable 70 V, 100 V or 6.5 ohm direct operation
- • Frequency range 113 Hz to 17.1 kHz at -10 dB, full space
- • Pan and tilt bracket up to 148 deg pan and 15 deg tilt
- • IP54 rated enclosure, 16.9 lbs (7.7 kg)
- • 5 years parts and labor warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron CA 83T PT (part number 42-358-03) — white eight-driver column array loudspeaker with the pan and tilt SMK PT CA wall mounting system included.
Column geometry is what makes this speaker useful: eight drivers stacked over 29.8 in. compress the vertical lobe to about 38° at 1 kHz while spreading roughly 180° across the room. Less energy reaches the ceiling and floor, so less returns as reverberation and consonants survive the trip to the back row. Extron places the power tap selector on the bottom of the enclosure, which keeps commissioning simple once the speaker is on the wall.
Key Capabilities
- White RAL 9003 powder coat on chassis, endcaps and grille
- Eight 3 in. (76 mm) drivers, 120 W rms pink noise and 240 W rms program
- Selectable 70 V, 100 V or 6.5 ohm direct operation
- Frequency range 113 Hz to 17.1 kHz at -10 dB, full space
- Pan and tilt bracket offering up to 148° pan and 15° tilt
- IP54 rated enclosure
Where It Is Used
Light-walled interiors take the white version: chapels, galleries, corporate all-hands rooms, seminar rooms and campus classrooms. The pan and tilt bracket is the right pick where floors are level and the array must be angled down and across toward the audience.
Specifications at a Glance
- Maximum SPL 109 dB at 1 m, full space; sensitivity 90 dB SPL at 1 W, 1 m
- Nominal impedance 6.5 ohms; input on a 4 pole 5 mm captive screw connector
- Enclosure 29.8 in. H x 5.0 in. D x 4.5 in. W, 16.9 lbs (7.7 kg)
- SMK PT CA mount 4.5 lbs (2.0 kg), supplied with the speaker
- CE, FCC Class B, ICES, RoHS and WEEE compliant
Also referenced as Extron CA83TPT, CA-83T-PT, part number 4235803.
Specifications
Specifications

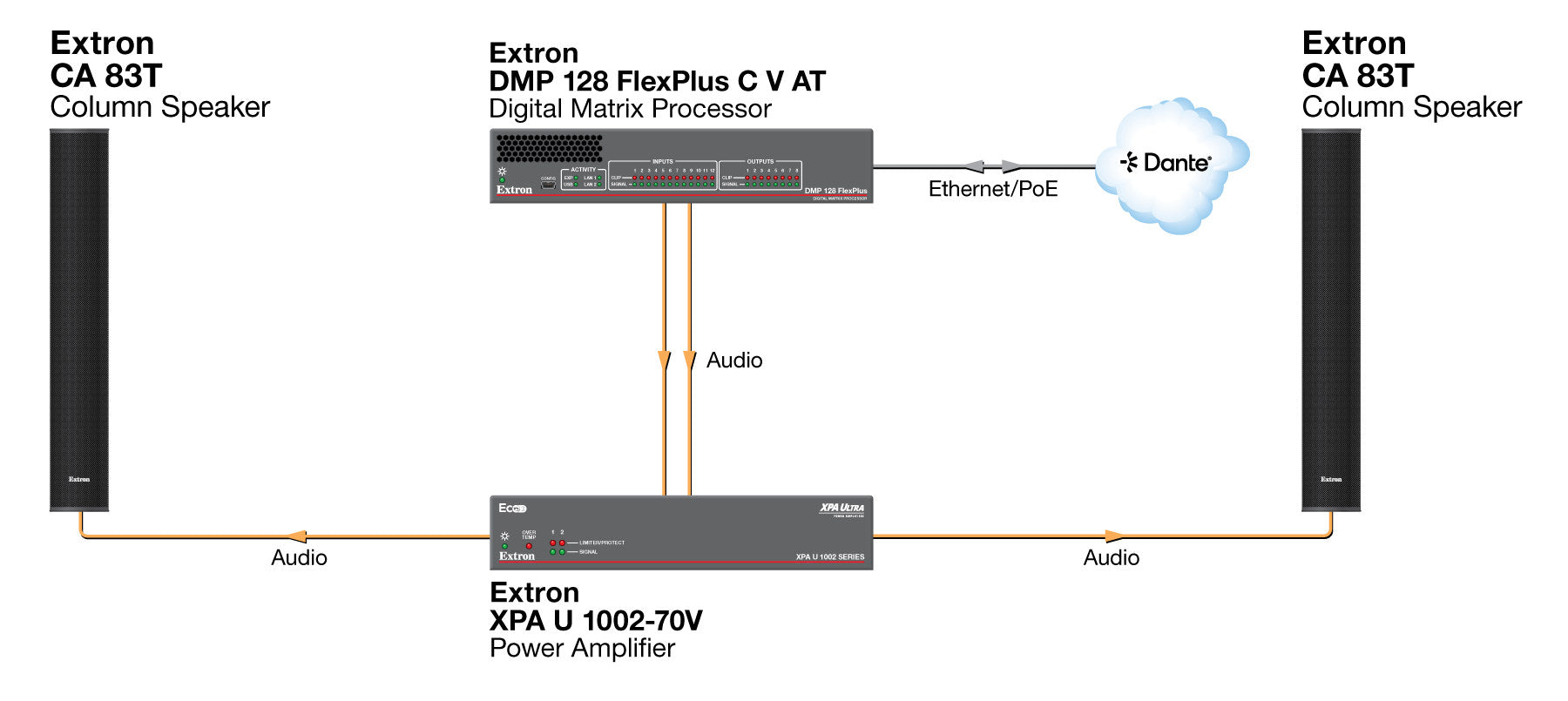

Diagram
