Extron CA 83T PT Column Array Speaker
- • Eight 3 in. drivers handle 240 W rms continuous program
- • 109 dB maximum SPL at 1 m, full space
- • 70 V taps at 64/32/16/8 W or 100 V taps at 64/32/16 W
- • 6.5 ohm direct mode selectable on the same rotary switch
- • IP54 rated aluminum enclosure, 29.8 in. tall
- • Pan and tilt mount included, up to 148 deg pan and 15 deg tilt
- • 5 years parts and labor warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

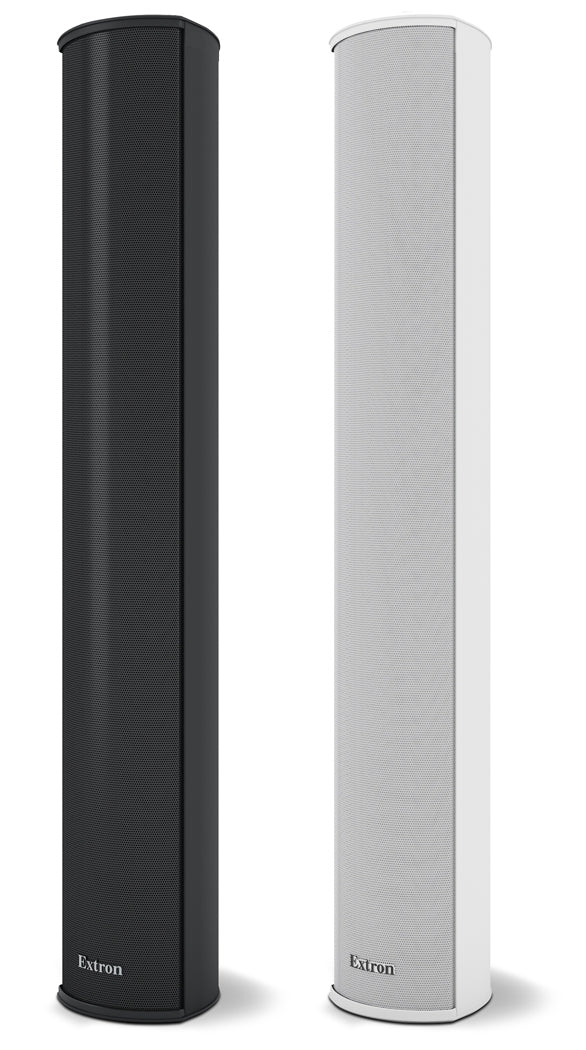

Extron CA 83T PT (part number 42-358-02) — black eight-driver column array loudspeaker supplied with the SMK PT CA pan and tilt wall mount.

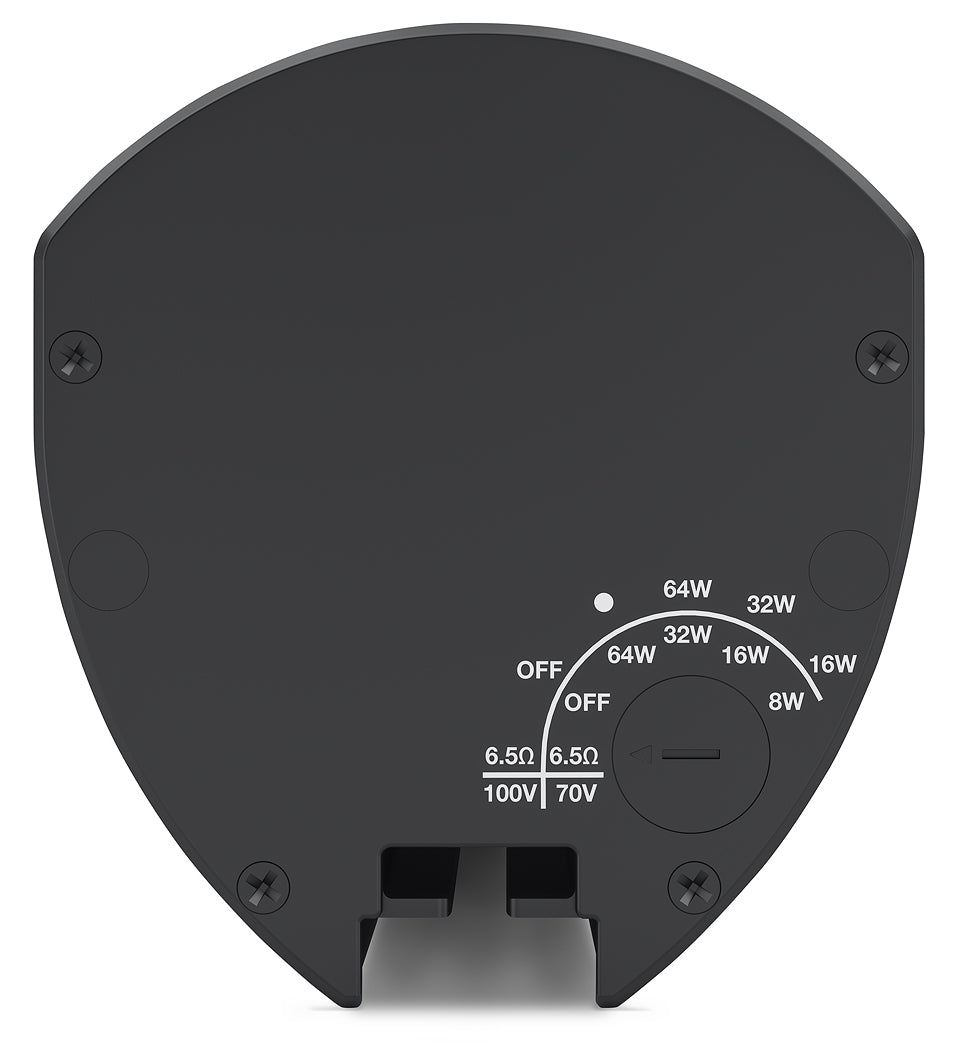

The CA 83T is the mid-size member of Extron's CA family: a 29.8 in. aluminum column holding eight 3 in. (76 mm) paper cone drivers. It works either on its own in small and medium rooms or as a fill speaker alongside CA 163 arrays, because every CA model is voiced to the same tonal target. A rotary tap selector on the underside of the enclosure sets 70 V or 100 V wattage or switches the speaker to 6.5 ohm direct operation, so one part number covers both distribution schemes.
Key Capabilities

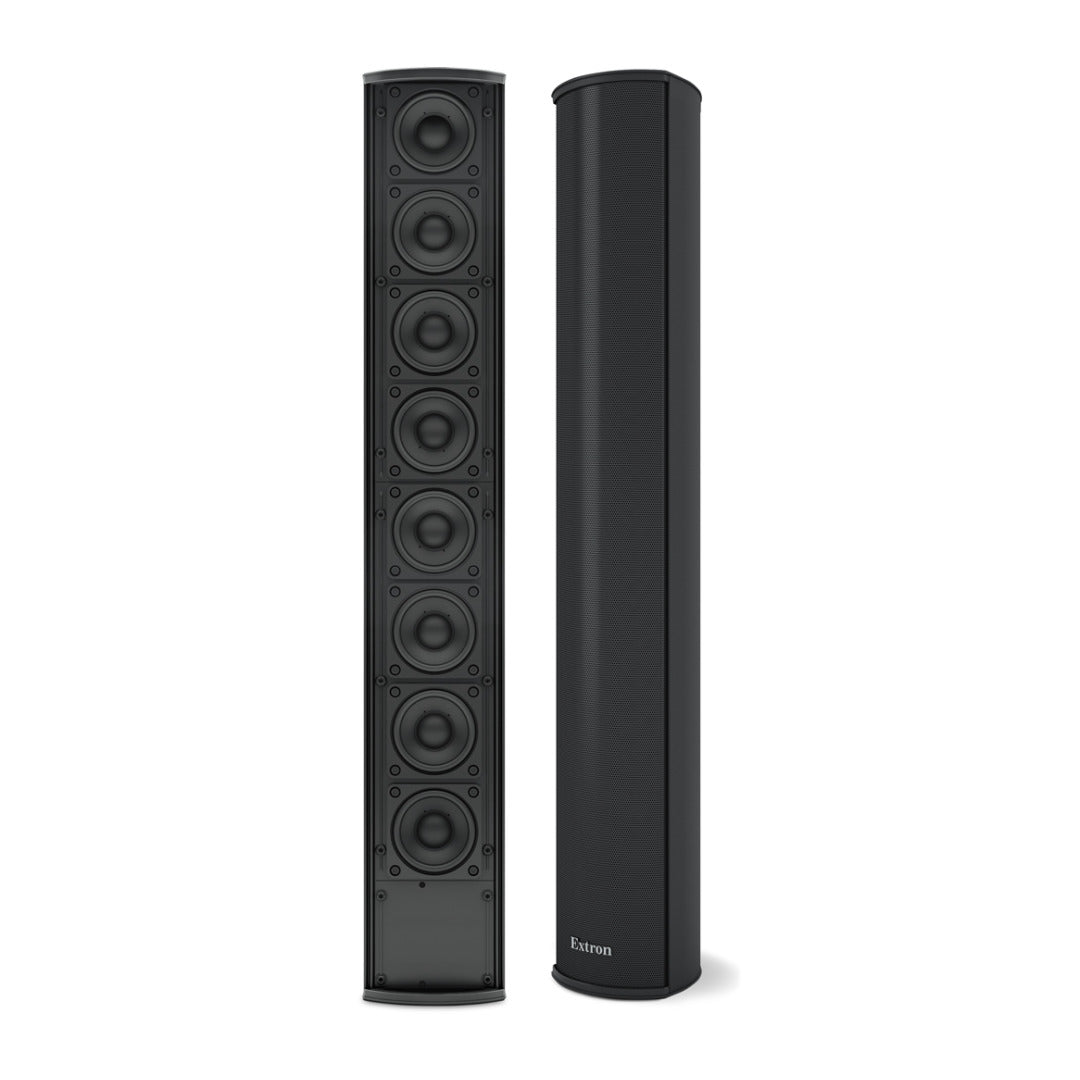

- Eight 3 in. (76 mm) paper cone drivers, 240 W rms continuous program
- Rotary tap selector: 70 V at 64/32/16/8 W or 100 V at 64/32/16 W, plus 6.5 ohm direct
- 109 dB maximum SPL at 1 m, full space
- 90 dB SPL nominal sensitivity, 1 W at 1 m, 6.5 ohms direct
- IP54 ingress protection rating
- Pan and tilt mount with up to 148° of pan and 15° of tilt, included
Where It Is Used
Classrooms, training rooms, meeting spaces, chapels and mid-size lecture halls are the primary targets, and the same speaker serves as side or rear fill in larger rooms fronted by CA 163 columns. The IP54 rating widens its usefulness to covered outdoor areas and dusty industrial interiors.
Specifications at a Glance
- Frequency range 113 Hz to 17.1 kHz, -10 dB, full space, per IEC 60268-5
- Coverage 180° H x 38° V at 1 kHz, 146° H x 18° V at 2 kHz
- Enclosure 29.8 in. H x 5.0 in. D x 4.5 in. W (757 x 127 x 114 mm), 16.9 lbs (7.7 kg)
- Finish powder coat RAL 9011 chassis, RAL 9017 endcaps and grille
- 5 years parts and labor warranty
Also referenced as Extron CA83TPT, CA-83T-PT, part number 4235802.
