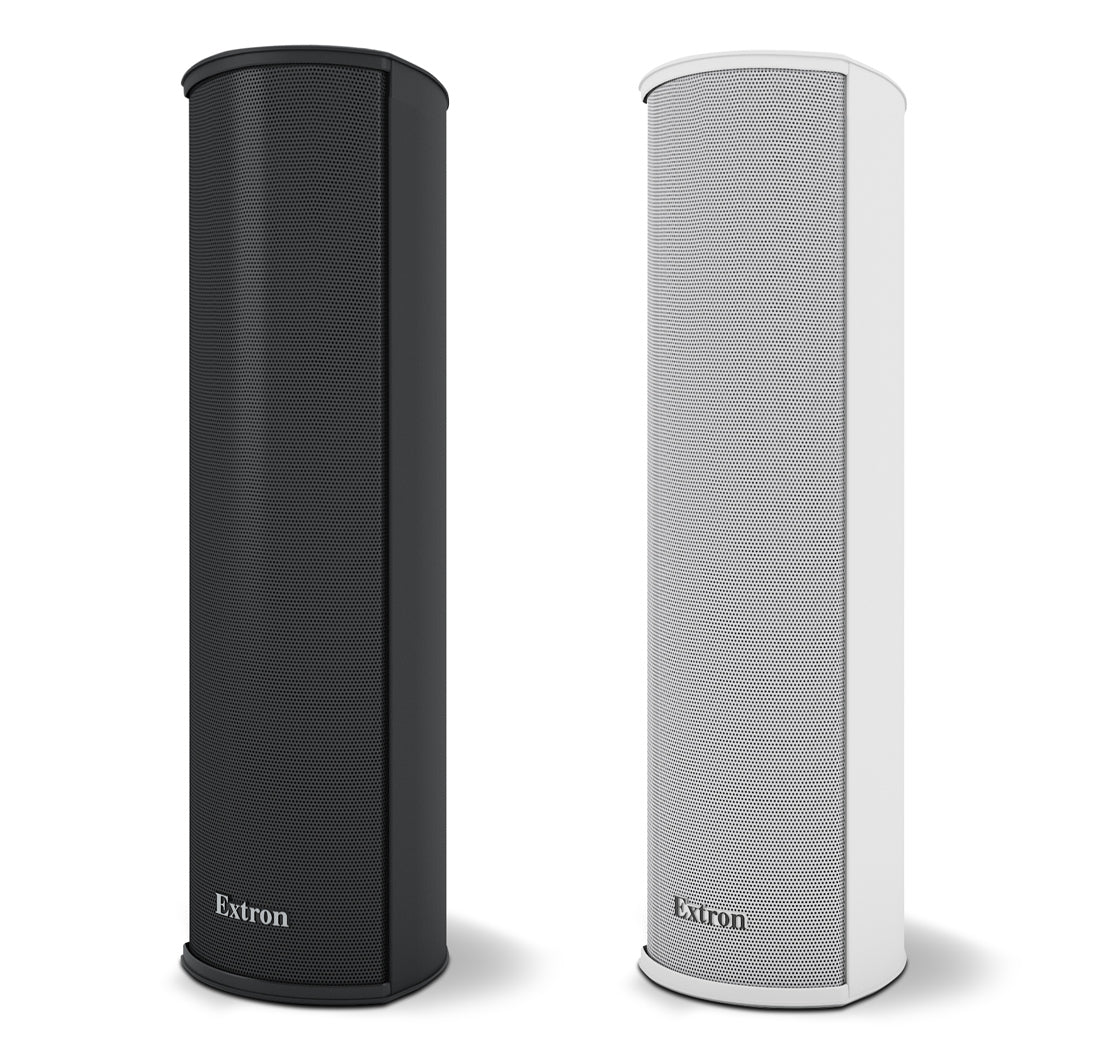

Extron CA 43T LP (part number 42-360-03) — white four-driver column array loudspeaker supplied with the low-profile SMK LP CA wall mounting kit.

White finish plus a bracket that keeps the column flat against the wall is the combination specified when the audio has to work but must not dominate the room. The CA 43T packs four matched 3 in. (76 mm) full-range drivers into 16.93 in. of powder-coated aluminum, handles 120 watts of continuous program, and switches between low impedance and constant voltage operation using a rotary tap selector reachable from the base of the enclosure after installation.

Key Capabilities

• White RAL 9003 finish on chassis, endcaps and grille; paintable
• Low-profile bracket with +/- 5° tilt and under 6 in. total depth
• 120 watts continuous program, 60 watts continuous pink noise
• Selectable 6.5 ohm direct, 70 V or 100 V operation
• Nominal coverage 180° H x 134° V at 500 Hz, measured at 4 m
• IP54 rated with an included secondary tie-off point

Where It Is Used

Museums, chapels, lobbies, meeting rooms and teaching spaces with light finishes are the typical deployments. As a fill speaker it complements CA 163 or CA 83T columns elsewhere in the same room, and EASE compatible GLL data files are published so coverage can be modelled before anything is mounted.

Specifications at a Glance

• Frequency range 125 Hz to 17.1 kHz, -10 dB, full space
• Coverage 143° H x 35° V at 2 kHz and 175° H x 19° V at 4 kHz
• Enclosure 16.93 in. H x 5.0 in. D x 4.5 in. W (430 x 127 x 114 mm)
• One 4-pole 5 mm captive screw connector, up to 12 AWG
• 5 year parts and labor warranty; TAA compliant version available

Also referenced as Extron CA43TLP, CA-43T-LP, part number 4236003.
