Extron CA 163 PT Column Array Speaker
- • 70/100 V operation with a 50 ohm nominal impedance
- • Transformerless high impedance design needs no high pass filtering
- • 94 dB max SPL on a 100 V line and 91 dB on 70 V, 1 m full space
- • Sixteen 3 in. drivers rated 480 W rms continuous program
- • Black RAL 9011 chassis with RAL 9017 endcaps and grille
- • SMK PT CA mount allows 130 deg of pan and 15 deg of tilt
- • 5 year Extron parts and labor warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

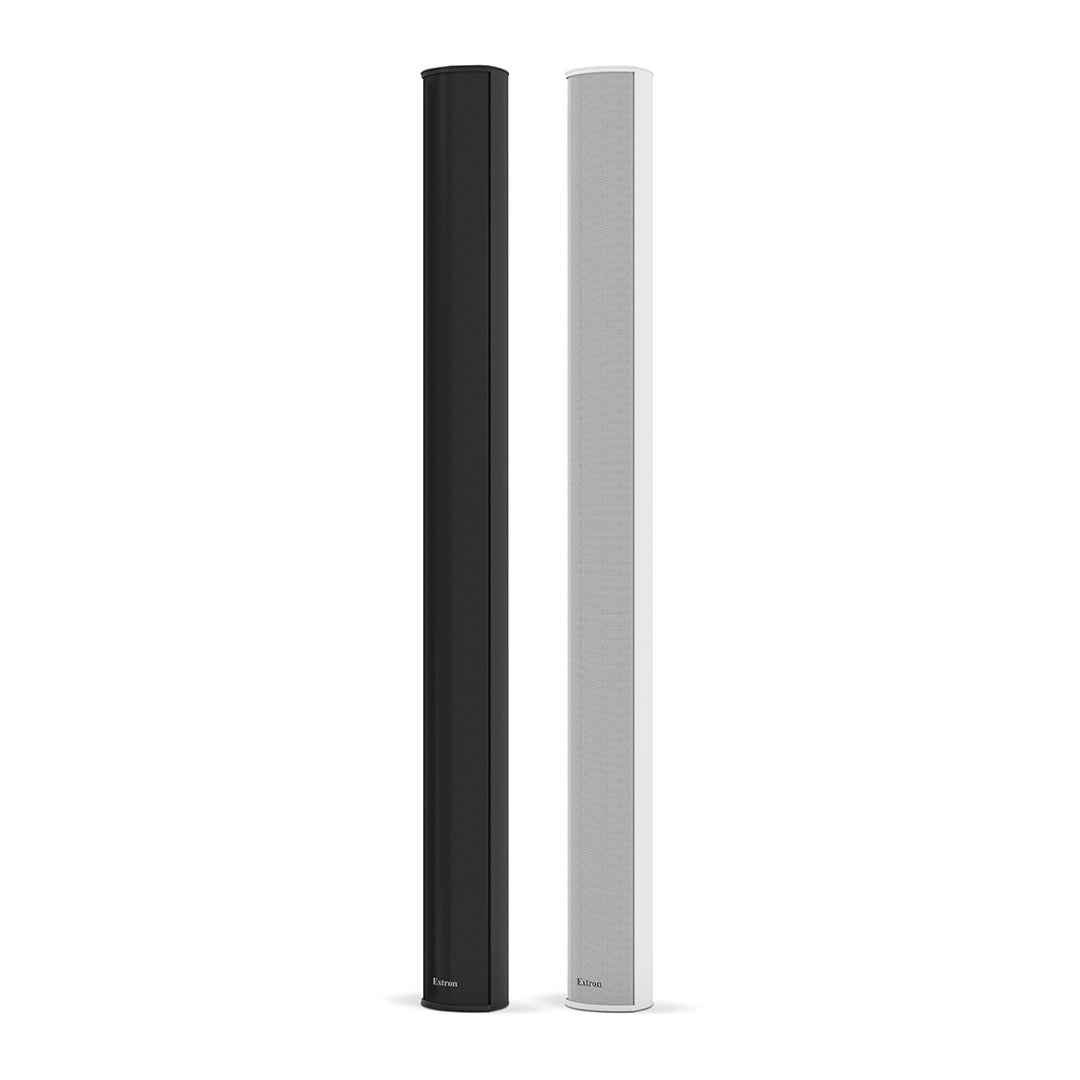

Extron CA 163 PT (part number 42-338-12) — the 70/100 volt, black-finish build of Extron's long throw column array loudspeaker, packaged with the SMK PT CA pan and tilt wall mount.
Distributed audio systems need speakers that tap onto a constant voltage line without losing tonal character. Extron makes the high impedance CA 163 transformerless, so no high pass filtering is required and a 70/100 V unit on a side wall matches the voice of an 8 ohm unit on the front wall. Sixteen 3 in. (76 mm) drivers in a 51.9 in. aluminum column hold vertical coverage near 20° at 1 kHz while spreading roughly 180° horizontally. Part 42-338-12 is the single-speaker black version.
Key Capabilities
- 70/100 V high impedance operation with a 50 ohm nominal impedance
- Transformerless design removes the need for high pass filtering
- 94 dB maximum SPL on a 100 V line, 91 dB on a 70 V line, 1 m full space
- 83 dB SPL nominal sensitivity, 1 W at 1 m, 50 ohms direct
- 480 W rms continuous program from sixteen 3 in. (76 mm) drivers
- SMK PT CA mount allows 130° of pan and 15° of tilt
Where It Is Used
Constant voltage lines are the norm in large distributed systems, so this version lands in convention centers, houses of worship, sports facilities, campus auditoriums and transport terminals. It is also the natural choice for side and rear fill positions in a room whose front wall already carries low impedance CA 163 speakers.
Specifications at a Glance
- Frequency range 105 Hz to 20 kHz, -10 dB, full space, per IEC 60268-5
- Enclosure 51.9 in. H x 5.0 in. D x 4.5 in. W, powder coat RAL 9011 and RAL 9017
- One 4 pole 5 mm captive screw connector for input and loop-through
- Speaker weight 27.6 lbs (12.5 kg)
- 5 year parts and labor warranty
Also referenced as Extron CA163PT, CA-163-PT, part number 4233812.
