Extron CA 163 PT Long Throw Column Array Speaker 8 Ohm White 42-338-03
Extron CA 163 PT Long Throw Column Array Speaker 8 Ohm White 42-338-03

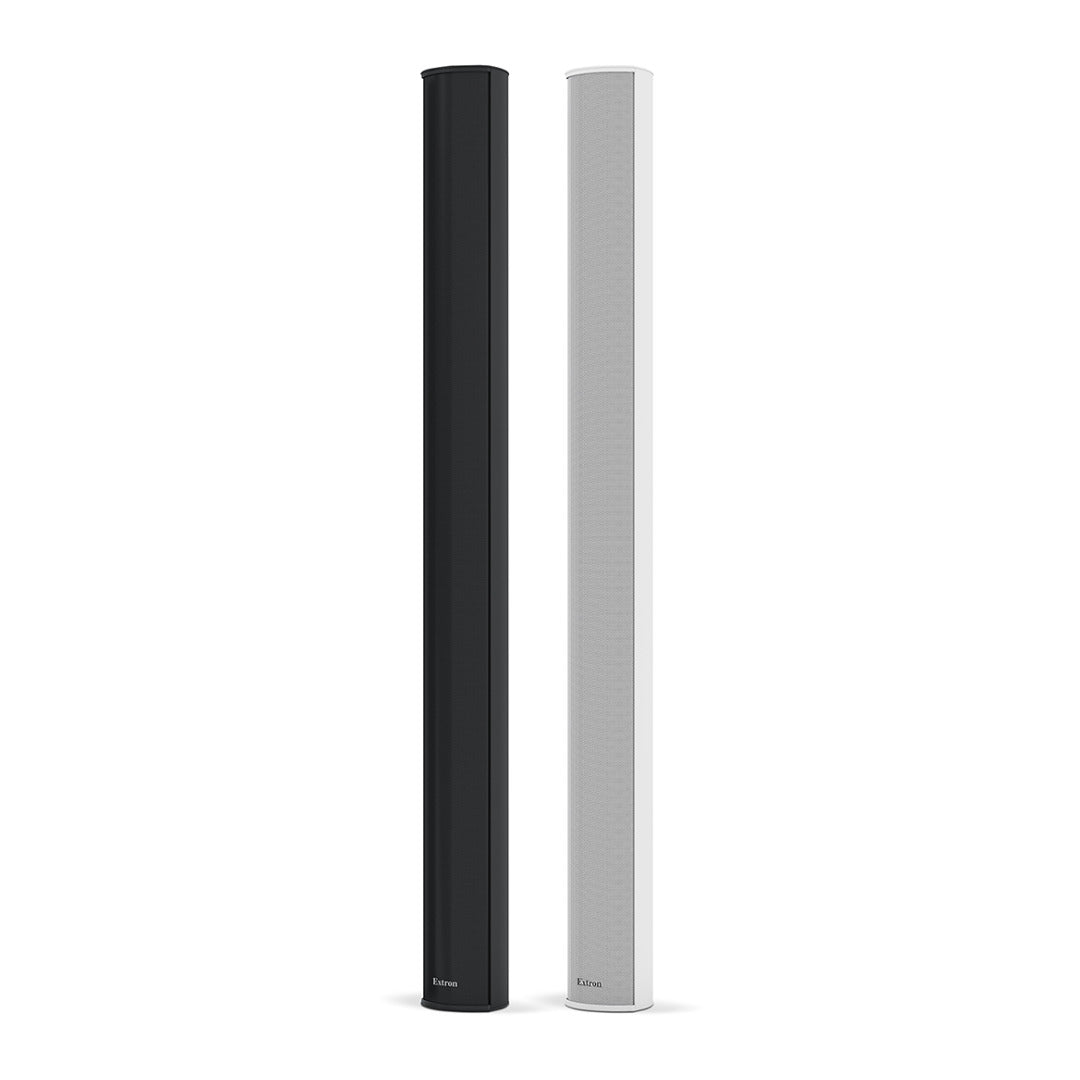

Extron CA 163 PT Column Array Speaker
- • White RAL 9003 finish on chassis, endcaps and grille
- • Sixteen 3 in. paper cone drivers handle 480 W rms continuous program
- • 93 dB SPL nominal sensitivity at 1 W and 1 m, full space
- • Low impedance 6.5 ohm version for direct amplifier connection
- • Frequency range spans 105 Hz to 20 kHz at -10 dB, full space
- • Pan and tilt wall mount weighs just 4.5 lbs (2.0 kg)
- • One-person installation with the SMK PT CA mounting system
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron CA 163 PT (part number 42-338-03) — long throw column array loudspeaker in white, wired for 8 ohm low impedance operation and shipped with the SMK PT CA pan and tilt wall mount.
Reverberant rooms scatter loudspeaker output onto ceilings and floors, and the reflected energy smears consonants until announcements stop being understood. A column array attacks that problem geometrically. Sixteen 3 in. (76 mm) paper cone drivers stacked in a 51.9 in. extruded aluminum enclosure narrow vertical coverage to about 20° at 1 kHz, while horizontal coverage remains close to 180°. Part 42-338-03 is the single-speaker, low impedance build finished in white powder coat.
Key Capabilities
- Column of sixteen 3 in. (76 mm) paper cone drivers, 51.9 in. tall
- 480 W rms continuous program, 240 W rms continuous pink noise
- 6.5 ohm nominal impedance for direct connection to an 8 ohm amplifier
- 93 dB SPL nominal sensitivity, 1 W at 1 m, full space
- 118 dB maximum SPL at 1 m, full space
- White RAL 9003 finish on chassis, endcaps and grille
Where It Is Used
The white finish disappears against light walls in worship spaces, university lecture halls, civic auditoriums, gymnasiums and transport concourses. Any room with a long reverberation time and a level seating floor is a candidate, and the pan and tilt bracket lets the installer aim the array once the room is populated.
Specifications at a Glance
- Frequency range 105 Hz to 20 kHz (-10 dB); response 200 Hz to 16 kHz (-3 dB)
- Enclosure 51.9 in. H x 5.0 in. D x 4.5 in. W (1318 x 127 x 114 mm)
- Speaker weight 27.6 lbs (12.5 kg); SMK PT CA mount 4.5 lbs (2.0 kg)
- Coverage 180° H x 20° V at 1 kHz, 178° H x 18° V at 4 kHz
- CE, FCC Class B, ICES, RoHS, WEEE; 5 year parts and labor warranty
Also referenced as Extron CA163PT, CA-163-PT, part number 4233803.
