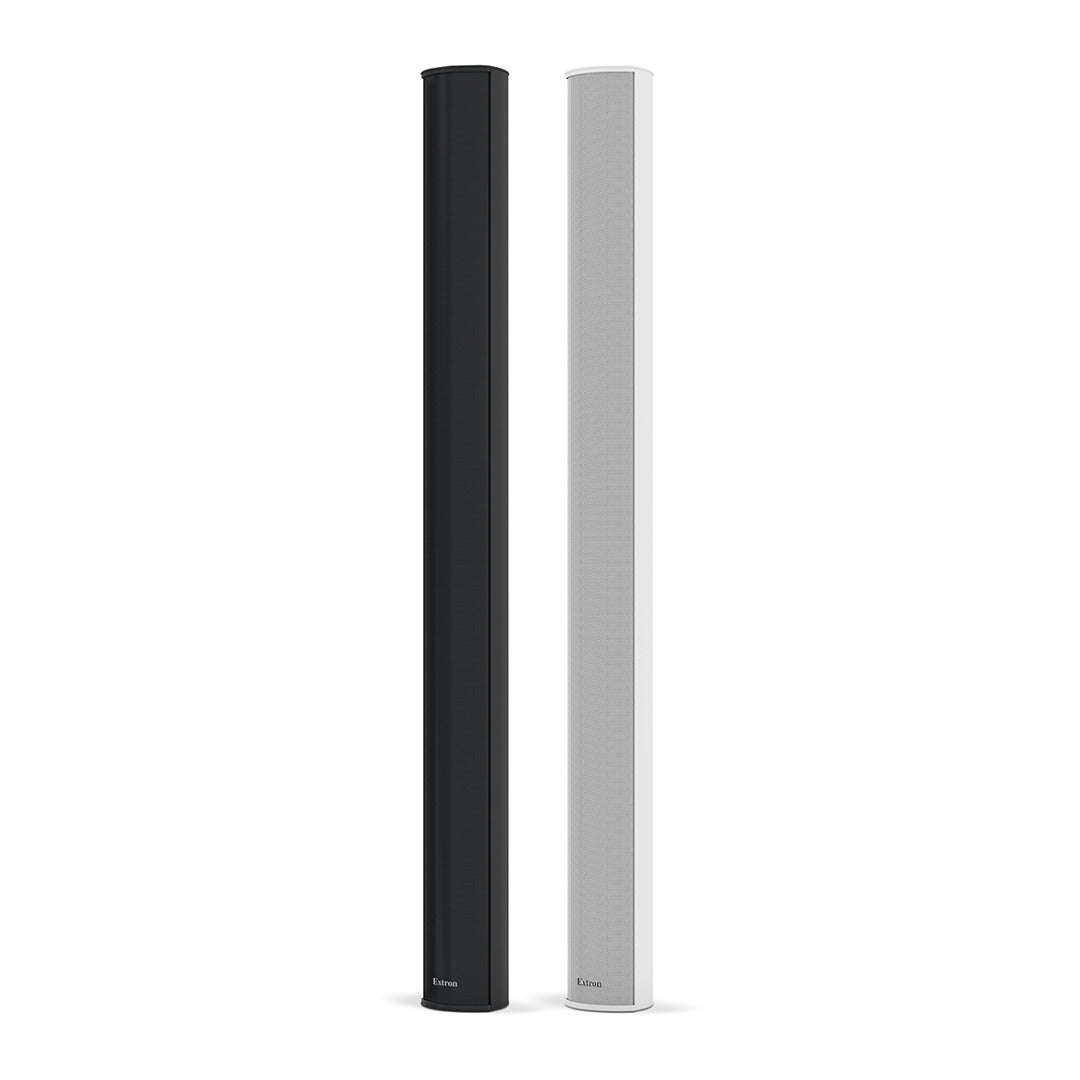

Extron CA 163 LP Column Array Speaker
- • White RAL 9003 finish on chassis, endcaps and grille
- • 70/100 V high impedance operation at 50 ohms nominal, transformerless
- • 94 dB max SPL on 100 V and 91 dB on 70 V, measured at 1 m
- • Sixteen 3 in. drivers rated 480 W rms continuous program
- • Low-profile bracket provides +/- 5 deg of vertical tilt
- • Nominal coverage 180 deg H x 20 deg V at 1 kHz
- • 5 year Extron parts and labor warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron CA 163 LP (part number 42-339-13) — white 70/100 volt long throw column array loudspeaker with the two-piece low-profile wall mount.
This part combines the three attributes integrators most often need together in a finished room: a constant voltage tap, a white finish that vanishes against light walls, and a bracket that holds the array close to the wall. The acoustic engine is unchanged, sixteen 3 in. (76 mm) paper cone drivers across 51.9 in. of extruded aluminum, delivering wide horizontal coverage with a compressed vertical lobe so reverberant surfaces receive far less energy.
Key Capabilities
- White RAL 9003 finish on chassis, endcaps and grille
- 70/100 V high impedance operation at 50 ohms nominal, transformerless
- 94 dB maximum SPL on 100 V and 91 dB on 70 V, measured at 1 m
- Sixteen 3 in. (76 mm) drivers rated 480 W rms continuous program
- SMK LP CA bracket provides +/- 5° of vertical tilt
- Nominal coverage 180° H x 20° V at 1 kHz
Where It Is Used
Raked auditoriums, chapels, council chambers, museums and campus lecture halls that run 70 V or 100 V distribution are the natural home for this part. The shallow bracket keeps the column visually quiet on a finished wall, which matters where the room design is as scrutinised as the audio coverage.
Specifications at a Glance
- Frequency range 105 Hz to 20 kHz (-10 dB); response 200 Hz to 16 kHz (-3 dB)
- 83 dB SPL sensitivity, 1 W at 1 m, 50 ohms direct, full space
- Enclosure 51.9 in. H x 5.0 in. D x 4.5 in. W (1318 x 127 x 114 mm)
- Speaker 27.6 lbs (12.5 kg); SMK LP CA mount 1.2 lbs (0.5 kg)
- Operating range +32 to +122°F (0 to +50°C)
Also referenced as Extron CA163LP, CA-163-LP, part number 4233913.
