Extron CA 163 LP Column Array Speaker
- • White RAL 9003 powder coat on chassis, endcaps and grille
- • Two-piece low-profile bracket with +/- 5 deg vertical tilt
- • 240 W rms continuous pink noise, 480 W rms continuous program
- • 93 dB SPL nominal sensitivity, 1 W at 1 m, 6.5 ohms direct
- • 118 dB maximum SPL at 1 m, full space
- • Single 4 pole 5 mm connector carries input and loop-through
- • 5 year Extron parts and labor warranty
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron CA 163 LP (part number 42-339-03) — white 8 ohm long throw column array loudspeaker supplied with Extron's low-profile SMK LP CA wall mounting system.
Column arrays win in reverberant rooms because of geometry rather than raw output: stacking drivers vertically compresses the vertical lobe so that less sound ever reaches the ceiling or the floor to bounce back. Extron gives the CA 163 sixteen 3 in. (76 mm) paper cone drivers over 51.9 in. of aluminum extrusion, producing about 180° horizontally and roughly 20° vertically at 1 kHz. This part number covers the white, single-speaker, 8 ohm variant.
Key Capabilities
- White RAL 9003 powder coat across chassis, endcaps and grille
- Two-piece low-profile bracket with +/- 5° vertical tilt
- 240 W rms continuous pink noise and 480 W rms continuous program
- 93 dB SPL nominal sensitivity, 1 W at 1 m, 6.5 ohms direct
- 118 dB maximum SPL at 1 m, full space
- Input and loop-through on a single 4 pole 5 mm captive screw connector
Where It Is Used
White finishes suit light interiors: chapels, museums, university halls, corporate town-hall spaces and civic chambers. The low-profile mount is intended for rooms with raked seating, where the audience already sits below the speaker axis and only a small amount of downward tilt is needed.
Specifications at a Glance
- Frequency response 200 Hz to 16 kHz, -3 dB, full space
- Enclosure 51.9 in. H x 5.0 in. D x 4.5 in. W, 27.6 lbs (12.5 kg)
- SMK LP CA mount 1.2 lbs (0.5 kg), ships separately from the speaker
- Storage range -40 to +158°F (-40 to +70°C), 10% to 90% noncondensing
- CE, FCC Class B, ICES, RoHS and WEEE compliant
Also referenced as Extron CA163LP, CA-163-LP, part number 4233903.
Specifications
Specifications

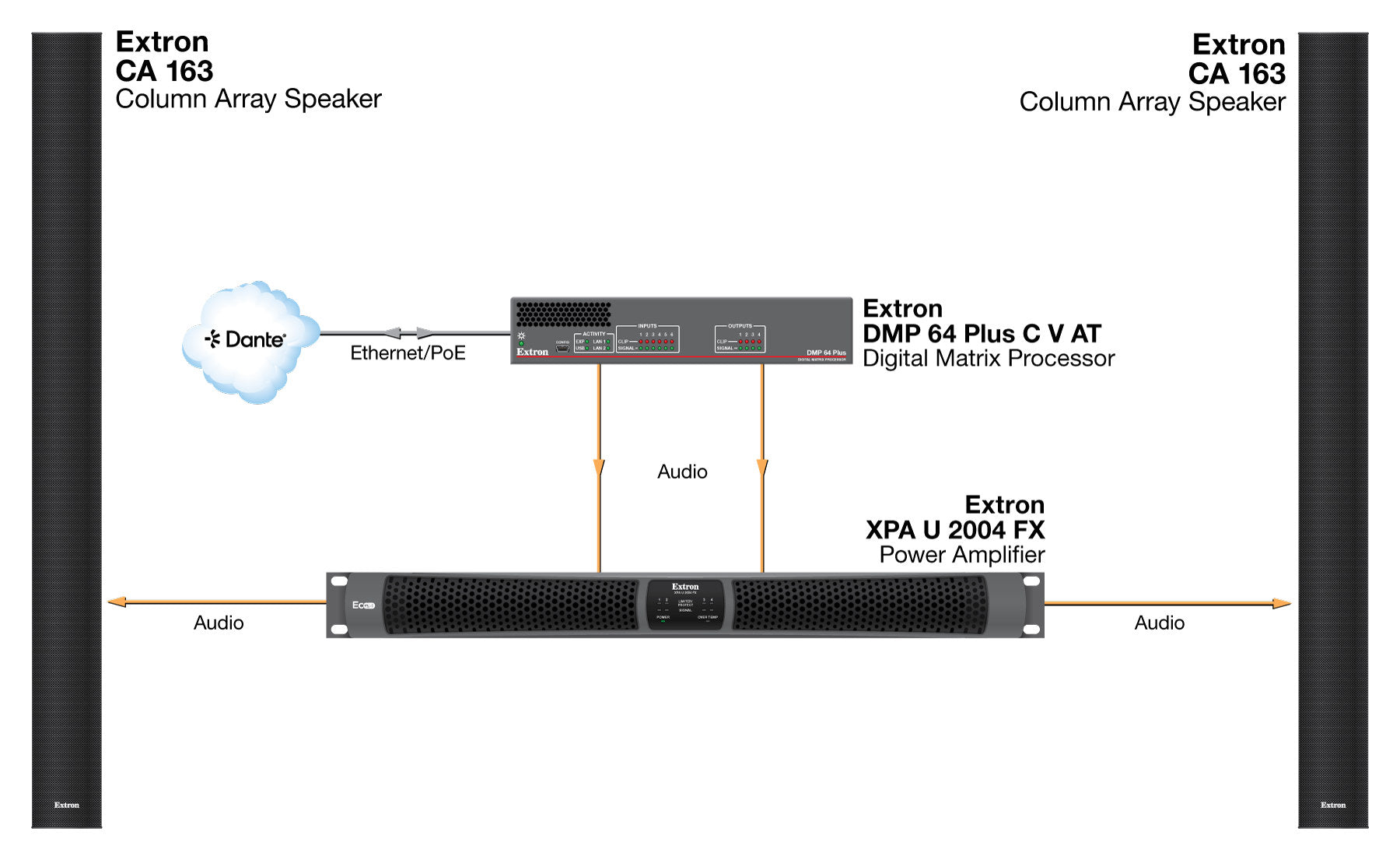

Diagram
