Extron BT 100 AT D (part number 60-1691-01) — a single-gang decorator-style wallplate that puts Bluetooth audio directly onto a Dante network.

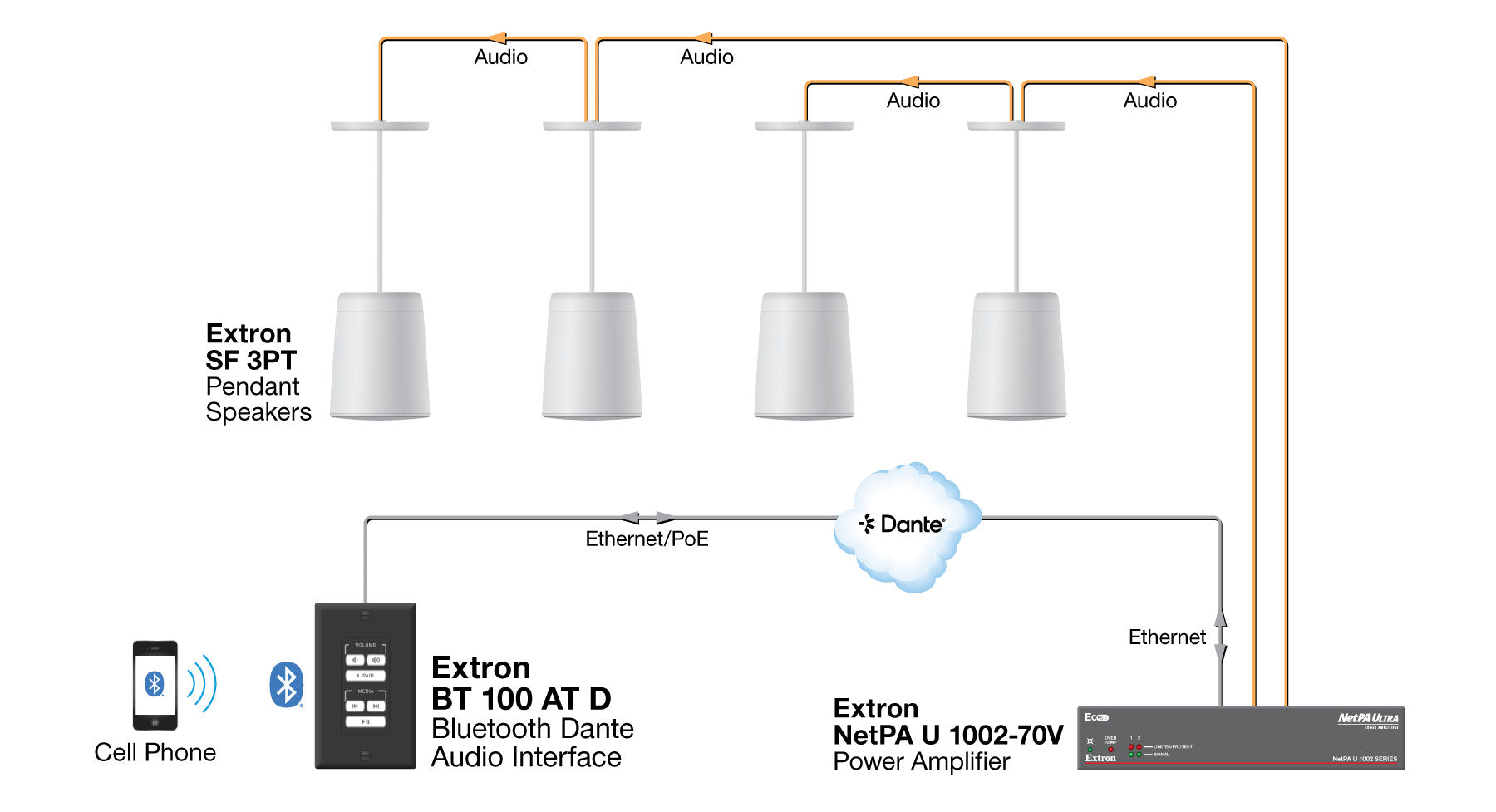

Conference rooms increasingly need a fast way to bring a personal cell phone call into the room's audio system without patching in an analog cable or juggling a separate speakerphone. The BT 100 AT D answers that by pairing with a Bluetooth-enabled phone or tablet and handing the audio off to any Dante-equipped processor, such as an Extron DMP Plus Series AT model, over the same network cable that also carries control data and PoE power. Full-duplex operation means the call bridges both directions, and the unit doubles as a simple Bluetooth speaker for program playback when no call is active.

Key Capabilities

• Full-duplex Bluetooth-to-Dante audio for two-way call bridging
• Stereo program audio playback from a paired Bluetooth device

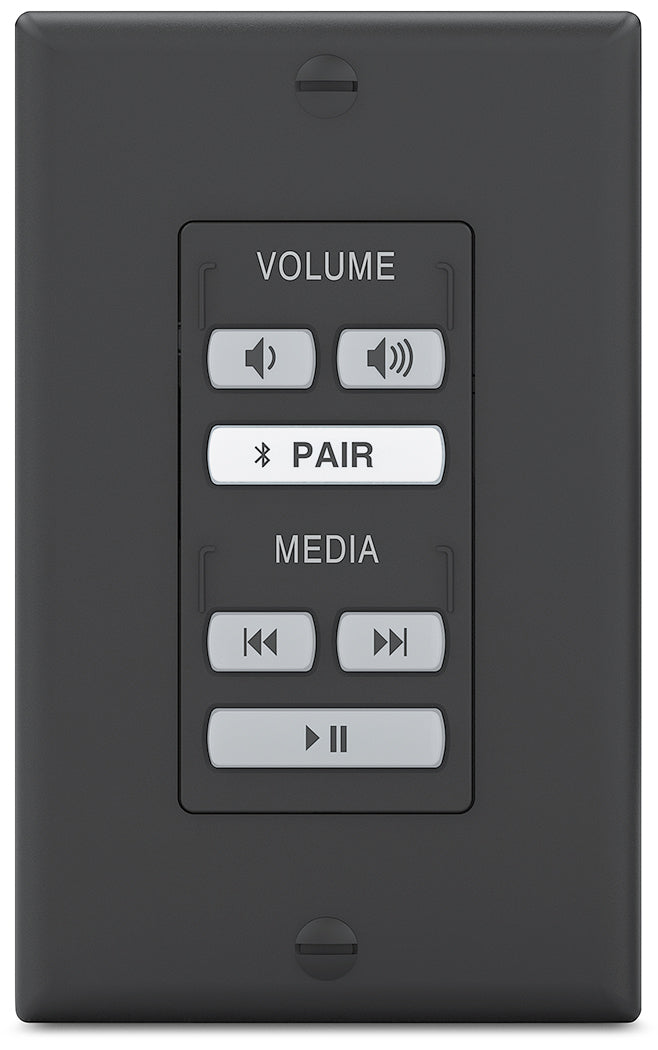

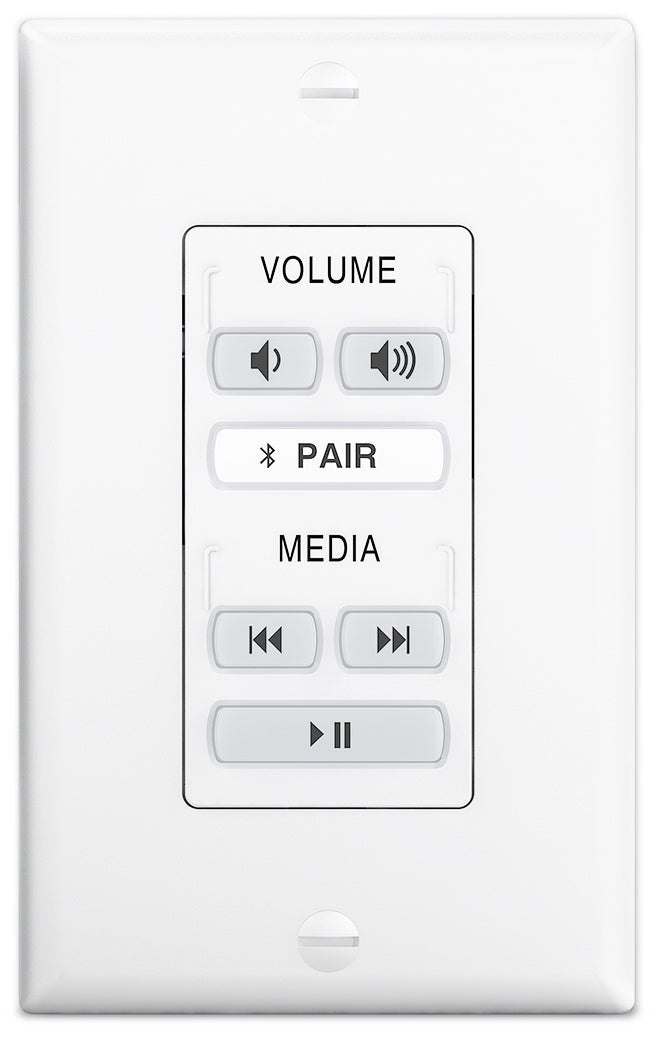

• Single-gang decorator-style wallplate in white and black
• Powered entirely over PoE — one network cable for audio, control and power
• Configurable via USB-C or RS-232 before or after installation
• Controllable via front-panel buttons, RS-232 or the Dante network

Where It Is Used

Built for huddle rooms, boardrooms and training rooms running a Dante audio backbone, the BT 100 AT D gives a wall or table location Bluetooth pairing for ad hoc calls and music playback without adding a separate audio processor at that location.

Specifications at a Glance

• Connectivity: Bluetooth to Dante network
• Power: PoE
• Control: Front panel, RS-232, Dante network (LAN)
• Configuration: USB-C, RS-232
• Form factor: Single-gang decorator-style wallplate

Also referenced as Extron BT100ATD, BT-100-AT-D, part number 60169101.
