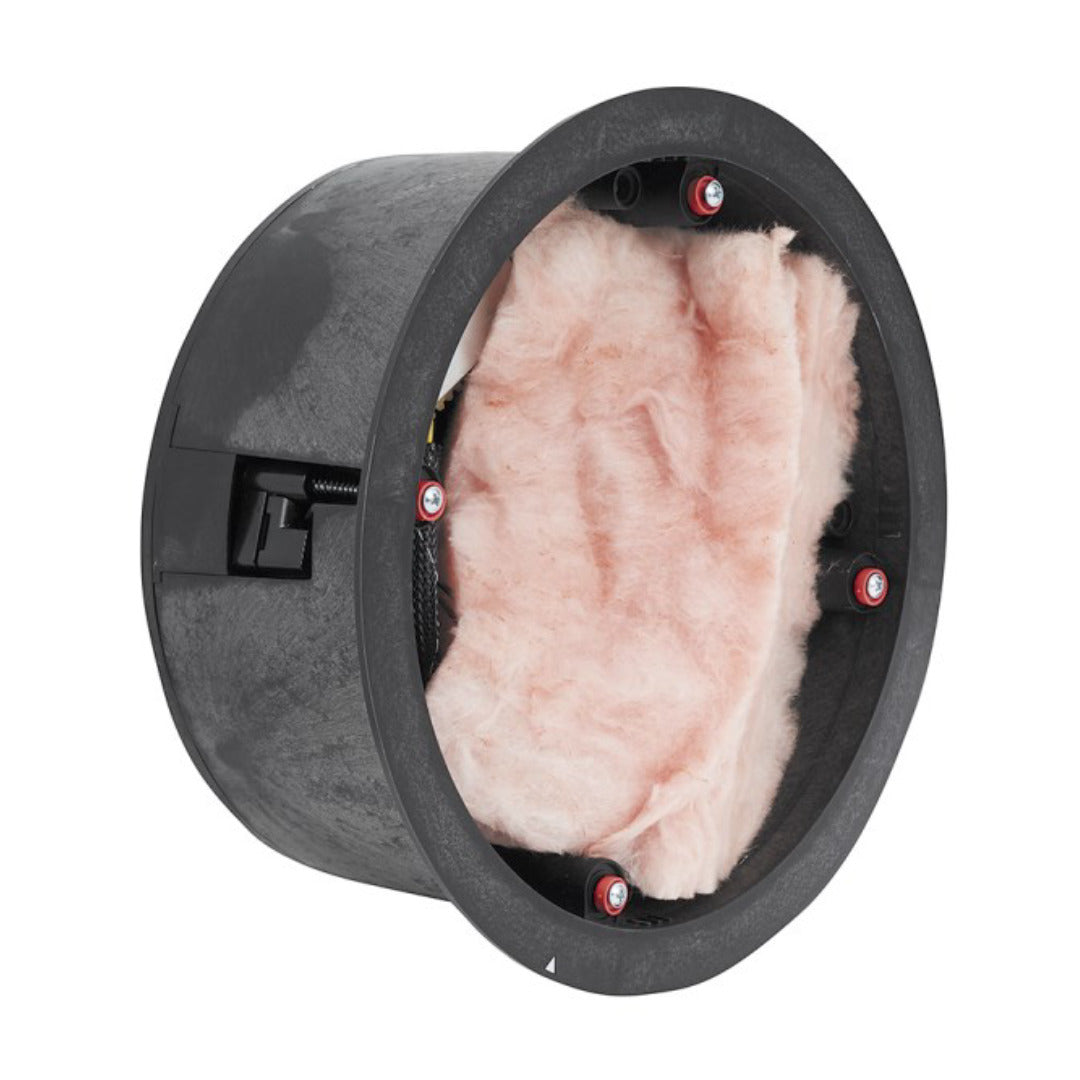

Extron BCK SF 26CT LP (part number 70-1283-01) — low-profile plenum-rated back can pair for the SF 26CT LP two-way ceiling speaker, sold without the driver assembly.

The BCK SF 26CT LP swaps in a shallower 4.72" back can where plenum clearance is too tight for the standard SF 26CT enclosure, while still accepting the same DAK SF 26CT LP driver assembly kit to become a complete speaker. Buying the can separately supports staged installs, rough-in ahead of driver delivery, or replacing a damaged enclosure without touching the driver.

Key Capabilities

• Low-profile plenum-rated back can pair for the Extron SF 26CT LP ceiling speaker
• Composite fire-resistant (UL94V-0) enclosure only 4.72" H x 10.64" diameter
• Cutout diameter of 9.3" with locking arms for ceiling tiles up to 2.25" thick
• UL 2043 listed for plenum airspace use, UL 1480 listed for pro audio systems
• Ships with cutout template, mounting screws, 4 V-rails, 2 C-rings, and captive screw connectors
• Pairs with the DAK SF 26CT LP driver assembly kit to complete the full SF 26CT LP speaker

Where It Is Used

Used on SF 26CT LP installations where plenum height above the ceiling grid is restricted, in conference rooms, classrooms, auditoriums, and houses of worship.

Specifications at a Glance

• Enclosure: Plenum-rated composite back can, UL94V-0, low profile
• Cutout: 9.3" diameter
• Ceiling thickness: Up to 2.25"
• Pairs with: DAK SF 26CT LP driver assembly kit

Also referenced as ExtronBCKSF26CTLP, Extron-BCK-SF-26CT-LP, part number 70128301.
