Extron BB 710M In-Wall Back Box for TLP 1000MV 70-971-01
- • Extron BB 710M back box for TLP 1000MV touchpanel
- • Steel, 7.0 x 8.2 x 2.5 in, 1.6 lbs
- • Eight 1/2 in and 3/4 in conduit knockouts
- • Sales, replacement and exchange
- • Part# 70-971-01 / 7097101
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Manufacturer: Extron; Model: BB 710M; Part number: 70-971-01 (also written 7097101)

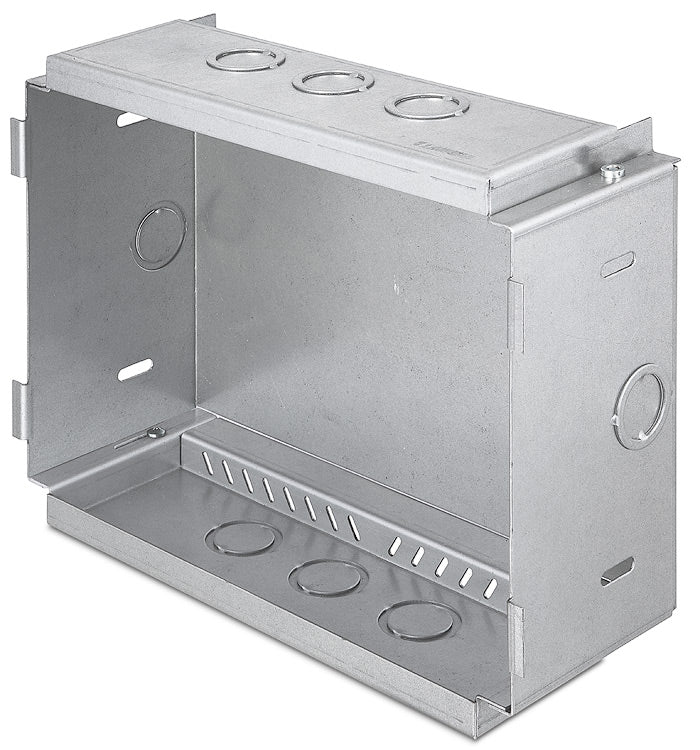

The Extron BB 710M (70-971-01) is a new in-wall back box available through Ampronix for the Extron TLP 1000MV TouchLink touchpanel. Steel enclosure: 7.0 in H x 8.2 in W x 2.5 in D, 1.6 lbs (0.74 kg). Eight conduit knockouts (1/2 in and 3/4 in). Panel surface cutout: 6.0 in H x 7.7 in W. Installed during rough-in before drywall for a clean, flush-mount touchpanel installation.
Key capabilities
- Purpose-built in-wall back box matched to the TLP 1000MV footprint
- Steel construction: 7.0 in H x 8.2 in W x 2.5 in D, 1.6 lbs (0.74 kg)
- Eight conduit knockouts: 1/2 in and 3/4 in diameter
- Panel surface cutout: 6.0 in H x 7.7 in W
- Installed during rough-in for a clean, supported touchpanel opening
Where it is used
Boardrooms, lobbies, and control rooms during rough-in wherever a TLP 1000MV touchpanel will be flush wall-mounted. Sized to the panel footprint so the electrical contractor can route cable during framing and the AV team finishes with a rigid, code-ready opening.
Specifications at a glance
- Compatible panel: TLP 1000MV; enclosure: steel, 7.0 x 8.2 x 2.5 in, 1.6 lbs; knockouts: 8 (1/2 in and 3/4 in)
Frequently asked questions about the Extron BB 710M Back Box for TLP 1000MV Touchpanel
Is the Extron BB 710M 70-971-01 available new or refurbished?
Ampronix stocks the BB 710M (70-971-01) as a new item through its authorized Extron distribution agreement.
Which touchpanel does the BB 710M support?
The BB 710M is designed specifically for the TLP 1000MV. For other TLP models, contact Ampronix to confirm the correct back box.
Does Ampronix offer replacement and exchange for Extron touchpanel mounting accessories?
Ampronix supplies a full range of Extron back boxes and TLP touchpanel mounting accessories.
Ampronix is an authorized Extron distributor and carries a full range of Extron TLP touchpanel and mounting accessories.
Also referenced as Extron BB710M, BB-710M, part number 7097101.
Related: Extron products, Video Solutions.
Specifications
Specifications

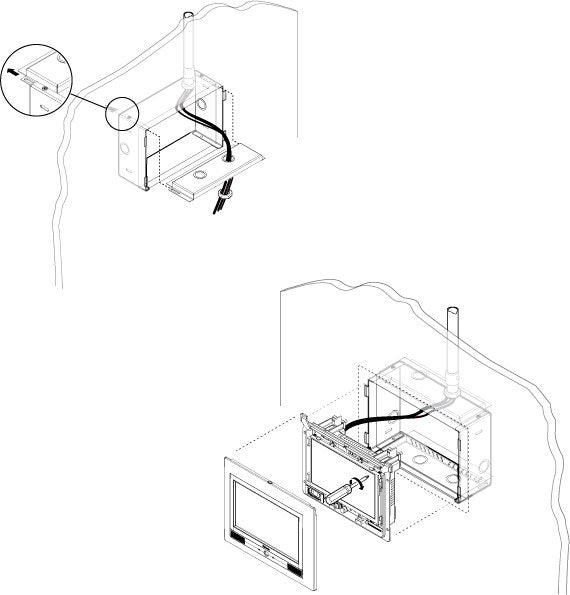

Diagram
