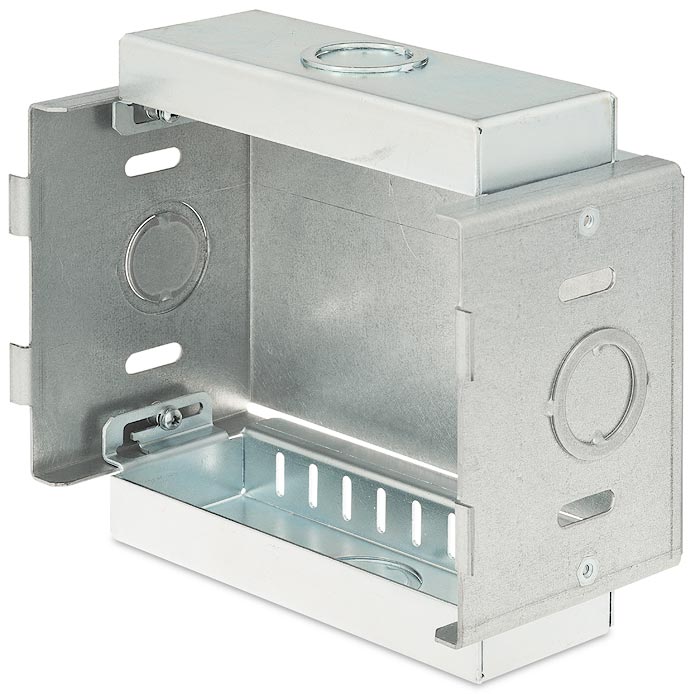

The Extron BB 1 (70-1007-01) is an in-wall back box built for the TLP Pro 320M and TLP Pro 520M TouchLink touchpanels. It is constructed of clear zinc coated steel and provides a recessed enclosure that lets the touchpanel sit flush with the wall surface.

Mounting a touchpanel directly into drywall without a back box leaves wiring exposed and the panel loosely supported. The BB 1 solves this with a purpose-sized steel enclosure and four conduit knockouts that let installers route low-voltage cable cleanly behind the panel before it is fastened in place.

Key Capabilities

• In-wall back box for TLP Pro 320M and 520M touchpanels
• Steel construction, clear zinc coated for corrosion prevention
• 5.02" H x 5.98" W x 2.80" D enclosure
• 4 conduit knockouts per unit, 1/2" and 3/4" diameter
• Product weight just 1 lb (0.45 kg)

Where It Is Used

Integrators install the BB 1 during rough-in, before drywall goes up, in conference rooms, offices and classrooms where a TLP Pro 320M or 520M touchpanel will control the room. Placing the box during framing lets electricians pull low-voltage cable through the knockouts and terminate it inside the box, so the finished touchpanel installs onto a rigid, code-ready opening rather than an unsupported hole in the wall.

Specifications at a Glance

• Compatible touchpanels: TLP Pro 320M, TLP Pro 520M
• Enclosure: 5.02" H x 5.98" W x 2.80" D, steel
• Conduit knockouts: 4 per unit, 1/2" and 3/4"
• Product weight: 1 lb (0.45 kg)

Also referenced as BB1, BB-1, part number 70100701.
