Extron Backlit Button Labels Text and Icon Sheet 2 Label Sheet 33-1763-01
Extron Backlit Button Labels Text and Icon Sheet 2 Label Sheet 33-1763-01
Extron Backlit Button Labels Text and Icon Sheet 2 Backlit Button Label Sheet
- • Extron backlit button labels text and icon sheet 2
- • Text and icon labels, sheet 2
- • For 0.59 in backlit button format
- • Sales, replacement and exchange
- • Part# 33-1763-01 / 33176301
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Manufacturer: Extron; Model: Backlit Button Labels Text and Icon Sheet 2; Part number: 33-1763-01 (also written 33176301)

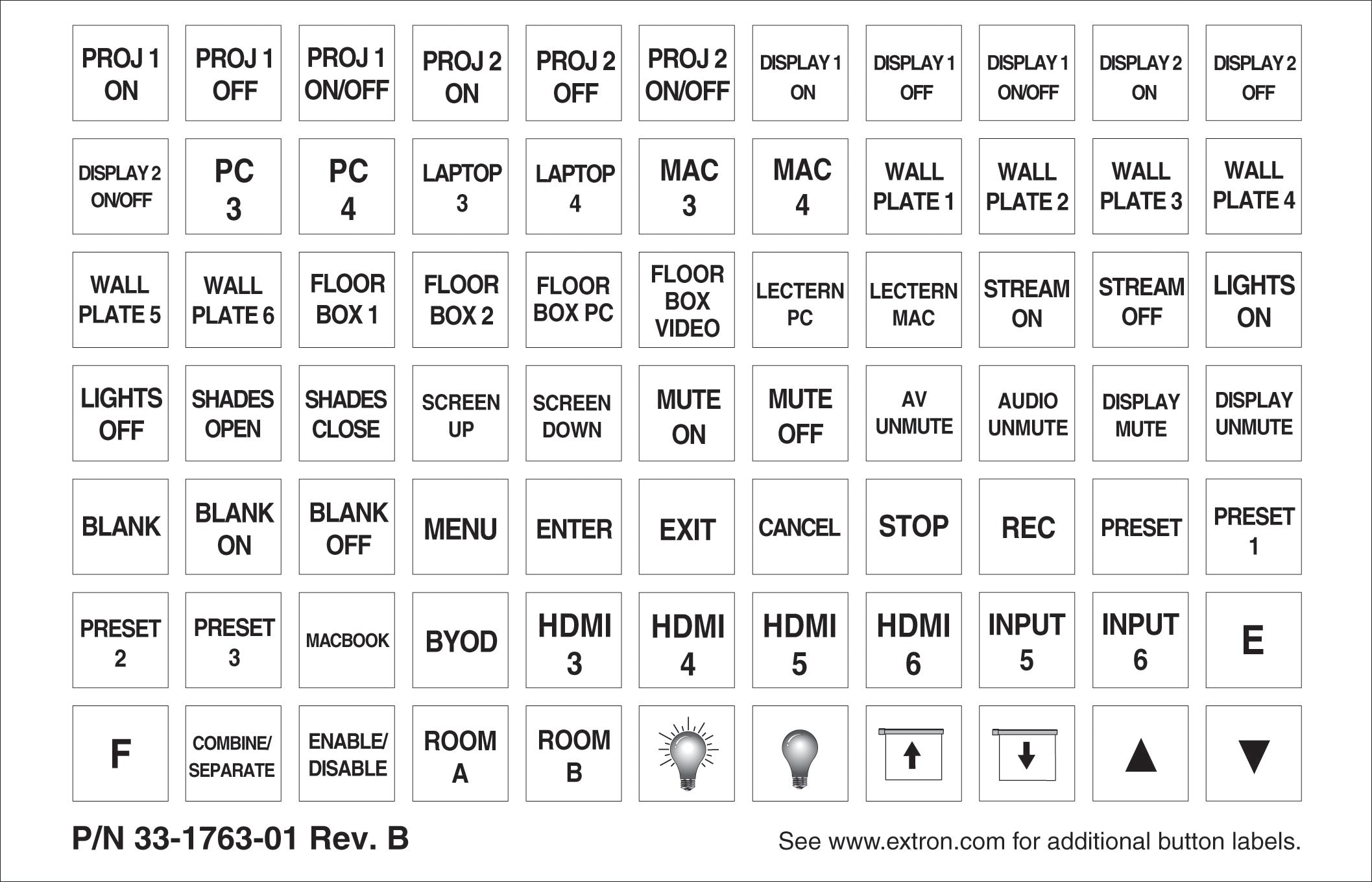

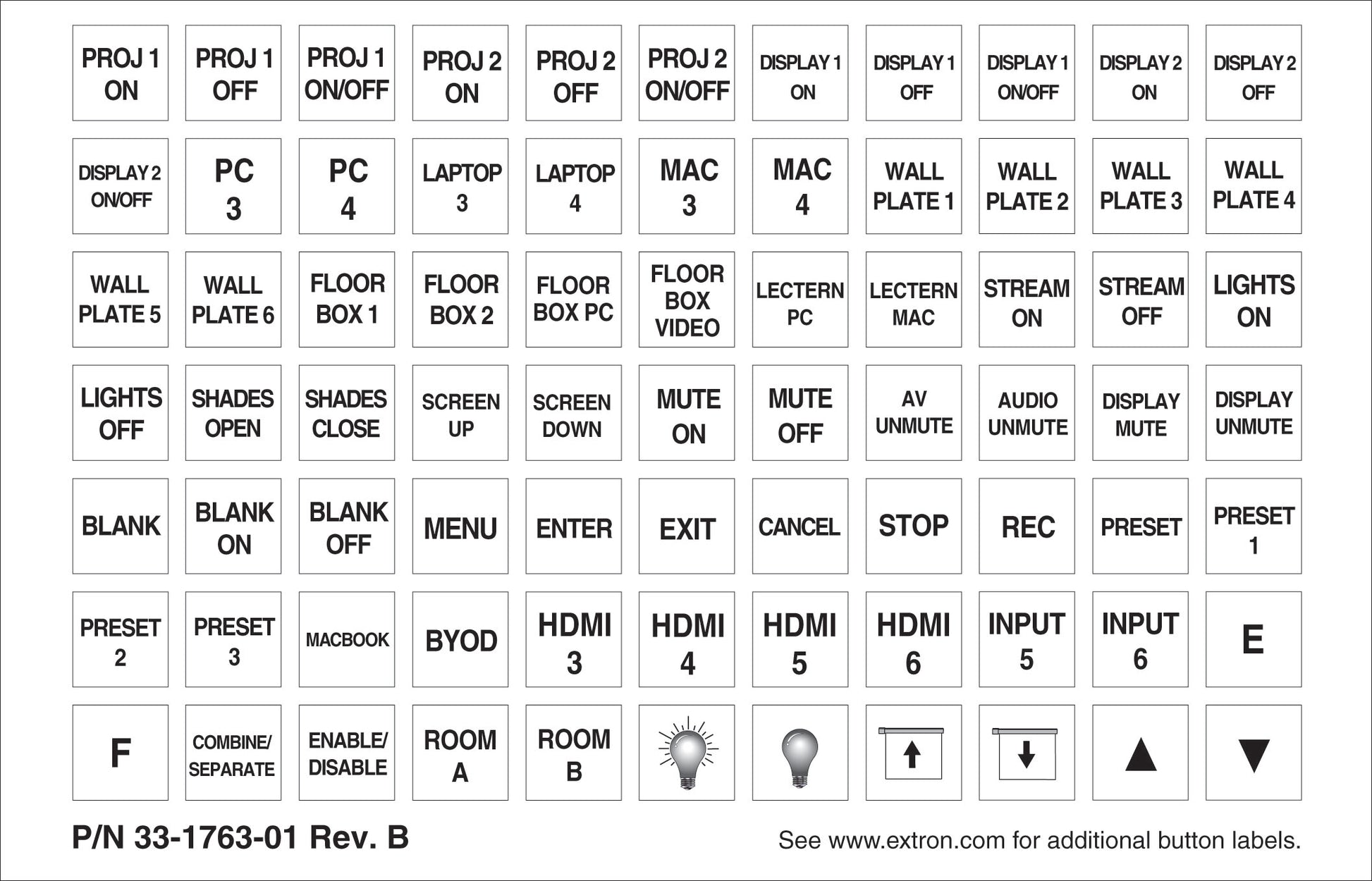

The Extron Backlit Button Labels Text and Icon Sheet 2 (33-1763-01) is a retired button label set, stocked by Ampronix for installations built with this part. Labels individual buttons for Extron's 0.59 in backlit button panels on select MediaLink controllers, secondary control panels, matrix switcher models, IP Intercom 100/200 Series, System 5 IP, USP 405, and control modules CM-3BLB, CM-9BLB, CCR 2BLB, and CCR 4BLB. Retired by Extron.
Key capabilities
- Text and Icon Labels, Sheet 2 for Extron's 0.59 in backlit button footprint
- Fits select MediaLink, matrix switcher, IP Intercom, System 5 IP, USP 405, and CM/CCR control modules
- Retired by Extron; stocked by Ampronix for existing installations
Where it is used
Existing Extron backlit keypad installations where a replacement Text and Icon Sheet 2 label set is needed.
Specifications at a glance
- Label type: Text and Icon Sheet 2; button format: 0.59 in backlit buttons (retired)
Frequently asked questions about the Extron Backlit Button Labels Text and Icon Sheet 2 Label Sheet
Is the Extron Backlit Button Labels Text and Icon Sheet 2 33-1763-01 still available?
Ampronix stocks the 33-1763-01 as remaining inventory; contact Ampronix to confirm current availability.
What is the difference between Sheet 1 and Sheet 2?
The two sheets carry different combinations of text and icon labels for the 0.59 in button format. Contact Ampronix to confirm which sheet suits your installation.
Does Ampronix offer replacement and exchange for Extron button label accessories?
Ampronix supplies a full range of Extron button labels, caps, and control panel accessories.
Ampronix is an authorized Extron distributor and carries a full range of Extron button label and control panel accessories, including current and legacy variants.
Also referenced as Extron BacklitButtonLabels Text Icon Sheet2, part number 33176301.
Related: Extron products, Video Solutions.
