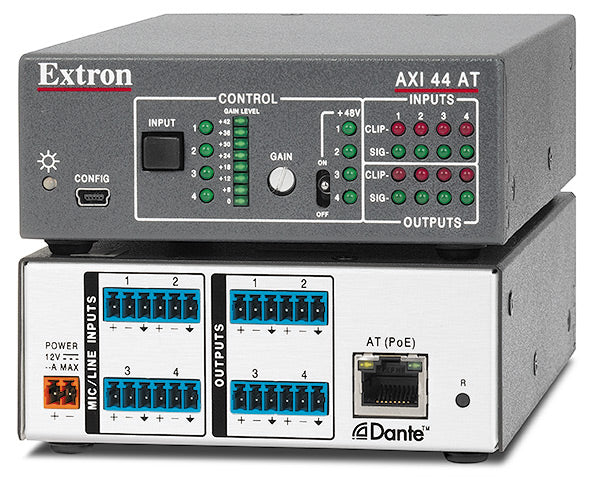

Extron AXI 44 AT (part number 60-1628-01) — a quarter-rack Dante audio interface taking four mic or line sources onto the network and returning four channels as analog line level.

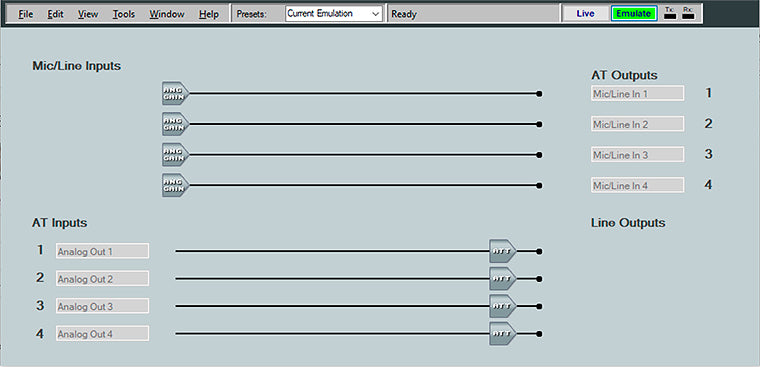

Same idea as the two-channel version in this family, twice the density, and still in a quarter-rack box. Four mic or line inputs arrive on a pair of 6-pole captive screw connectors, each with independently switchable 48 V phantom power, and are digitised at 24-bit for transport over Dante. Four line level outputs bring any four network channels back locally. Because everything travels on Ethernet, four microphone positions can sit a long way from the rack without a multicore, and PoE 802.3at means the same cable powers the unit. Input select, gain and phantom power are set from the front panel, from DSP Configurator, or by SIS command over USB.

Key Capabilities

Four mono mic/line inputs with 48 VDC phantom power switchable per input.
Four line level outputs carrying any four channels from the Dante network.
Uncompressed 24-bit audio, selectable at 44.1, 48, 88.2 or 96 kHz.
Input gain adjusts 0 dB to +42 dB in 3 dB steps, independently per input.
Signal to noise reaches 115 dB digital in to analog out; crosstalk stays under -90 dB at 1 kHz.
Runs on PoE 802.3at or 12 VDC, drawing 7.0 watts at the device.

Where It Is Used

Multi-microphone conference and boardrooms, lecture theatres with several podium and lapel positions, courtrooms and council chambers, and any Dante system built around a DMP 128 Plus AT or comparable processor where analog sources are scattered around a building rather than gathered in a rack.

Specifications at a Glance

I/O: 4 mic/line in, 4 line out, on (2) 6-pole 3.5 mm captive screw each
Network: 1 RJ-45, Dante/AES-67 selectable, 4 Rx and 4 Tx channels
Audio: 20 Hz to 20 kHz ±0.3 dB, CMRR above 65 dB at 1 kHz
Enclosure: metal, 1.66" H x 4.32" W x 6.00" D, 0.65 lbs
Warranty: 3 years parts and labor

Also referenced as Extron AXI44AT, AXI-44-AT, part number 60162801. Extron lists this part as retired; 60-1628-11 adds Dante Domain Manager and AES67 support.

Specifications

Part Number: 60-1628-01 (4 In, 4 Out Dante Audio Interface; listed by Extron as Retired)

Manufacturer: Extron

Model: AXI 44 AT

Condition: New

Gain: Unbalanced output -6 dB, balanced output 0 dB

Frequency Response: 20 Hz to 20 kHz, ±0.3 dB

THD + Noise: <0.02% @ 1 kHz at maximum level

S/N, Analog In to Digital Out: 100 dB, 20 Hz to 20 kHz, at full-scale output (unweighted)

S/N, Digital In to Analog Out: 115 dB, 20 Hz to 20 kHz, at maximum balanced output (unweighted)

Crosstalk: <-90 dB @ 1 kHz, fully loaded

Output Attenuation: -100 dB to 0 dB (in 1 dB steps)

Audio Input: 4 mono mic/line, balanced/unbalanced

Audio Input Connectors: (2) 3.5 mm captive screw connectors, 6-pole

Audio Input Impedance: >10k ohms, balanced/unbalanced

Audio Input Nominal Level: +4 dBu when level is set to 0 dB gain, adjustable from -60 dBu to +4 dBu

Audio Input Maximum Level: >+21 dBu (at rated THD+N) when input gain is set to 0 dB

Equivalent Input Noise: <-120 dBV (1 µVrms) at 40 dB gain

Input Gain Adjustment: 0 dB to +42 dB, 3 dB steps, adjustable per input

CMRR: >65 dB @ 1 kHz

Mic Phantom Power: +48 VDC ±10%, can be switched on or off per input

Audio Output: 4 mono (or 2 stereo), balanced/unbalanced

Audio Output Connectors: (2) 3.5 mm captive screw connectors, 6-pole

Audio Output Impedance: 50 ohms unbalanced, 100 ohms balanced

Audio Output Nominal Level: -10 dBV (316 mV) or +4 dBu (1.23 V)

Audio Output Maximum Level (Hi-Z): >+21 dBu balanced or >+15 dBu unbalanced

Audio Transport: Dante/AES-67, software selectable

AT Port Connector: 1 RJ-45 connector to Dante interface

Network Inputs: 4 channels Rx (2 flows, unicast or multicast)

Network Outputs: 4 channels Tx (2 flows, unicast or multicast)

Audio Format: Uncompressed, 24-bit, selectable at 44.1, 48, 88.2, or 96 kHz

Latency: Deterministic, based on user selection: 1.0 ms (default), 2.0 ms, 5.0 ms

Power Input Requirements: 12 VDC or Power over Ethernet (PoE 802.3at)

Power Supply (optional): External; input 100-240 VAC, 50-60 Hz; output 12 VDC, 1 A, 12 watts

Power Consumption (optional power supply): Device 7.0 watts; device and power supply 9.3 watts

Power Consumption (PoE via XTP PI 100 injector, optional): Device 8.5 watts; device and power injector 11.9 watts

Thermal Dissipation (optional power supply): Device 17.2 BTU/hr; device and power supply 25.1 BTU/hr

Thermal Dissipation (XTP PI 100 injector): Device 22.4 BTU/hr; device and power injector 34.0 BTU/hr

Temperature/Humidity: Storage -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing; operating +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Cooling: Convection, vents

Rack Mount: Yes, with optional 1U high rack shelf

Furniture Mount: Yes, with optional under-desk mounting kit

Enclosure Type: Metal

Enclosure Dimensions: 1.66" H x 4.32" W x 6.00" D (1U high, quarter rack wide) (43 mm H x 110 mm W x 153 mm D)

Product Weight: 0.65 lbs (0.3 kg)

Regulatory Compliance: CE, C-Tick, c-UL, FCC Class A, ICES, UL, VCCI Class A. Complies with the appropriate requirements of RoHS and WEEE.

Product Warranty: 3 years parts and labor

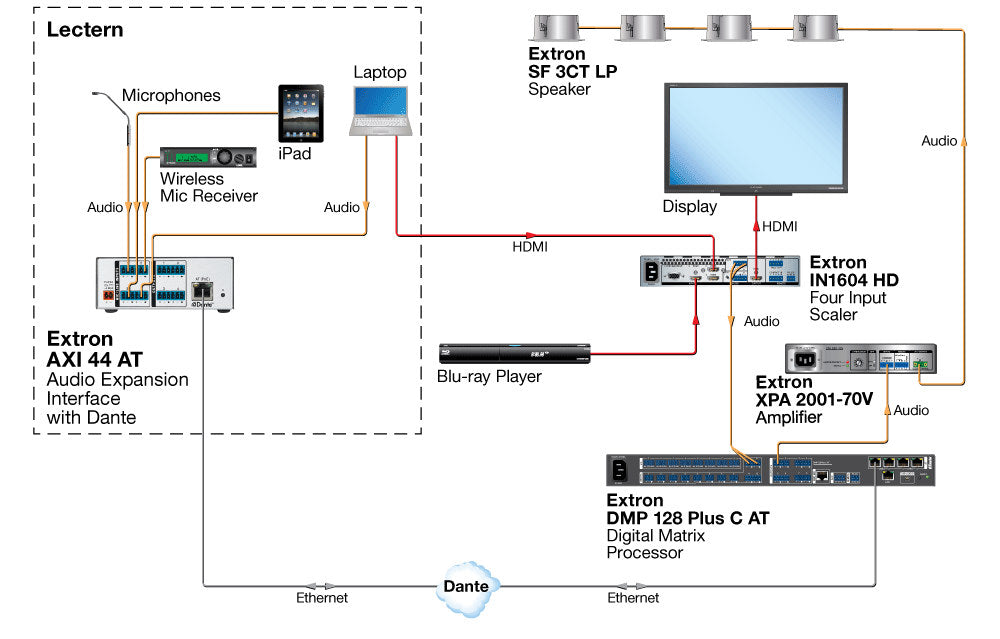

Diagram

Resources

Brochure | AXI 44 AT 60-1628-01 | AXI 44 AT (axi_44_at_revA2.pdf)

Brochure | AXI 44 AT 60-1628-01 | AXI 44 AT (AXI-44-AT_BR_A4_SP_RevA.pdf)

Manual | AXI 44 AT 60-1628-01 | AXI 22 AT and AXI 44 AT

Manual | AXI 44 AT 60-1628-01 | AXI 22 AT and AXI 44 AT Setup Guide

Manual | AXI 44 AT 60-1628-01 | AXI 22 AT and AXI 44 AT User Guide

Manual | AXI 44 AT 60-1628-01 | Cleaning Instruction Card

Manual | AXI 44 AT 60-1628-01 | Extron Dante FAQ

Specifications | AXI 44 AT 60-1628-01 | AXI 44 AT

Panel Drawing | AXI 44 AT 60-1628-01 | AXI 44 AT
