Details

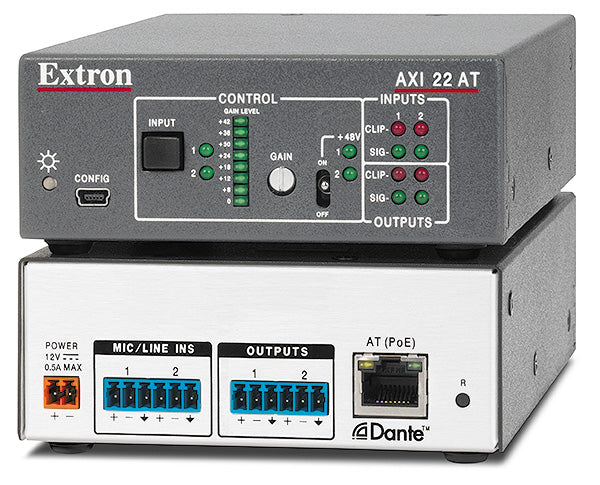

Extron AXI 22 AT (part number 60-1627-01) — a quarter-rack Dante audio interface putting two mic or line sources onto the network and pulling two channels back off it.

The argument for this box is cabling. Rather than running long analog microphone lines back to an AV rack, the AXI 22 AT digitises at the source: two mic or line inputs on a 6-pole captive screw connector, 24-bit conversion at up to 96 kHz, and out over a single Ethernet cable that also carries power if the switch supplies PoE. In the other direction it takes any two channels from the Dante network and presents them as analog line level locally. Input select, gain and 48 V phantom power are all reachable from the front panel, from DSP Configurator, or by SIS command over USB, so a technician does not need a laptop on the network to set a level.

Key Capabilities

Two mono mic/line inputs, balanced or unbalanced, with 48 VDC phantom power switchable per input.
Two line level outputs carrying any two channels from the Dante network.
Uncompressed 24-bit audio, selectable at 44.1, 48, 88.2 or 96 kHz.
Input gain adjusts 0 dB to +42 dB in 3 dB steps, per input; output attenuation -100 dB to 0 dB in 1 dB steps.
Deterministic latency selectable at 1.0 ms default, 2.0 ms or 5.0 ms.
Powered by PoE 802.3at or 12 VDC; device draws 4.4 watts on the optional supply.

Where It Is Used

Lecterns and podiums where a microphone needs to reach a distant DSP, ceiling and table microphone drops in conference rooms, divisible spaces built on a DMP 128 Plus C AT or similar Dante processor, and retrofit work where pulling new analog multicore is impractical. The quarter-rack body mounts under a desk, inside millwork or in a rack shelf.

Specifications at a Glance

I/O: 2 mic/line in, 2 line out, both on 6-pole 3.5 mm captive screw
Network: 1 RJ-45, Dante/AES-67 software selectable, 2 Rx and 2 Tx channels
Audio: 20 Hz to 20 kHz ±0.3 dB, THD+N under 0.02%, crosstalk under -90 dB
Enclosure: metal, 1.66" H x 4.32" W x 6.00" D, 0.65 lbs
Warranty: 3 years parts and labor

Also referenced as Extron AXI22AT, AXI-22-AT, part number 60162701. Extron lists this part as retired; 60-1627-11 adds Dante Domain Manager and AES67 support.

Specifications

Part Number: 60-1627-01 (2 In, 2 Out Dante Audio Interface; listed by Extron as Retired)

Manufacturer: Extron

Model: AXI 22 AT

Condition: New

Gain: Unbalanced output -6 dB, balanced output 0 dB

Frequency Response: 20 Hz to 20 kHz, ±0.3 dB

THD + Noise: <0.02% @ 1 kHz at maximum level

S/N, Analog In to Digital Out: 100 dB, 20 Hz to 20 kHz, at full-scale output (unweighted)

S/N, Digital In to Analog Out: 115 dB, 20 Hz to 20 kHz, at maximum balanced output (unweighted)

Crosstalk: <-90 dB @ 1 kHz, fully loaded

Output Attenuation: -100 dB to 0 dB (in 1 dB steps)

Audio Input: 2 mono mic/line, balanced/unbalanced

Audio Input Connector: (1) 3.5 mm captive screw connector, 6-pole

Audio Input Impedance: >10k ohms, balanced/unbalanced

Audio Input Nominal Level: +4 dBu when level is set to 0 dB gain, adjustable from -60 dBu to +4 dBu

Audio Input Maximum Level: >+21 dBu (at rated THD+N) when input gain is set to 0 dB

Equivalent Input Noise: <-120 dBV (1 µVrms) at 40 dB gain

Input Gain Adjustment: 0 dB to +42 dB, 3 dB steps, adjustable per input

CMRR: >65 dB @ 1 kHz

Mic Phantom Power: +48 VDC ±10%, can be switched on or off per input

Audio Output: 2 mono (or 1 stereo), balanced/unbalanced

Audio Output Connector: (1) 3.5 mm captive screw connector, 6-pole

Audio Output Impedance: 50 ohms unbalanced, 100 ohms balanced

Audio Output Nominal Level: -10 dBV (316 mV) or +4 dBu (1.23 V)

Audio Output Maximum Level (Hi-Z): >+21 dBu balanced or >+15 dBu unbalanced

Audio Transport: Dante/AES-67, software selectable

AT Port Connector: 1 RJ-45 connector to Dante interface

Network Inputs: 2 channels Rx (2 flows, unicast or multicast)

Network Outputs: 2 channels Tx (2 flows, unicast or multicast)

Audio Format: Uncompressed, 24-bit, selectable at 44.1, 48, 88.2, or 96 kHz

Latency: Deterministic, based on user selection: 1.0 ms (default), 2.0 ms, 5.0 ms

Power Input Requirements: 12 VDC or Power over Ethernet (PoE 802.3at)

Power Supply (optional): External; input 100-240 VAC, 50-60 Hz; output 12 VDC, 1 A, 12 watts

Power Consumption (optional power supply): Device 4.4 watts; device and power supply 6.2 watts

Power Consumption (PoE via XTP PI 100 injector, optional): Device 5.0 watts; device and power injector 8.2 watts

Thermal Dissipation (optional power supply): Device 11.6 BTU/hr; device and power supply 35.2 BTU/hr

Thermal Dissipation (XTP PI 100 injector): Device 13.8 BTU/hr; device and power injector 24.7 BTU/hr

Temperature/Humidity: Storage -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing; operating +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Cooling: Convection, no vents

Rack Mount: Yes, with optional 1U high rack shelf

Furniture Mount: Yes, with optional under-desk mounting kit

Enclosure Type: Metal

Enclosure Dimensions: 1.66" H x 4.32" W x 6.00" D (1U high, quarter rack wide) (43 mm H x 110 mm W x 153 mm D)

Product Weight: 0.65 lbs (0.3 kg)

Regulatory Compliance: CE, C-Tick, c-UL, FCC Class A, ICES, UL, VCCI Class A. Complies with the appropriate requirements of RoHS and WEEE.

Product Warranty: 3 years parts and labor

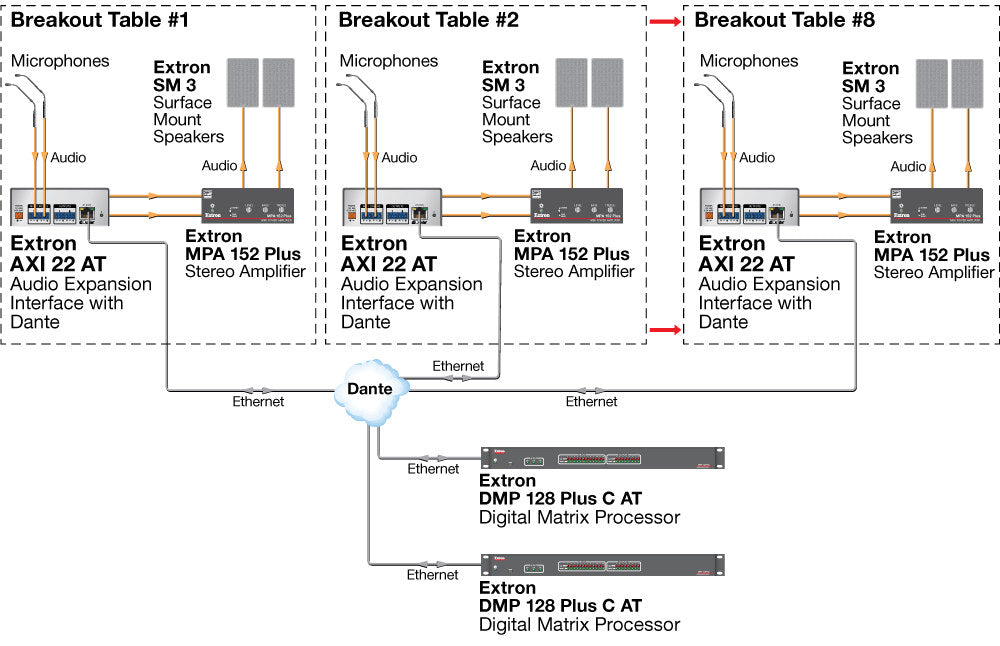

Diagram

Resources

Brochure | AXI 22 AT 60-1627-01 | AXI 22 AT (axi_22_at_revA3.pdf)

Brochure | AXI 22 AT 60-1627-01 | AXI 22 AT (AXI-22-AT_BR_A4_SP_RevA.pdf)

Brochure | AXI 22 AT 60-1627-01 | AXI 22 AT (axi_22_at_REV_A2_jp_ONLINE.pdf)

Manual | AXI 22 AT 60-1627-01 | AXI 22 AT and AXI 44 AT

Manual | AXI 22 AT 60-1627-01 | AXI 22 AT and AXI 44 AT Setup Guide

Manual | AXI 22 AT 60-1627-01 | AXI 22 AT and AXI 44 AT User Guide

Manual | AXI 22 AT 60-1627-01 | Cleaning Instruction Card

Manual | AXI 22 AT 60-1627-01 | Extron Dante FAQ

Specifications | AXI 22 AT 60-1627-01 | AXI 22 AT

Panel Drawing | AXI 22 AT 60-1627-01 | AXI 22 AT
