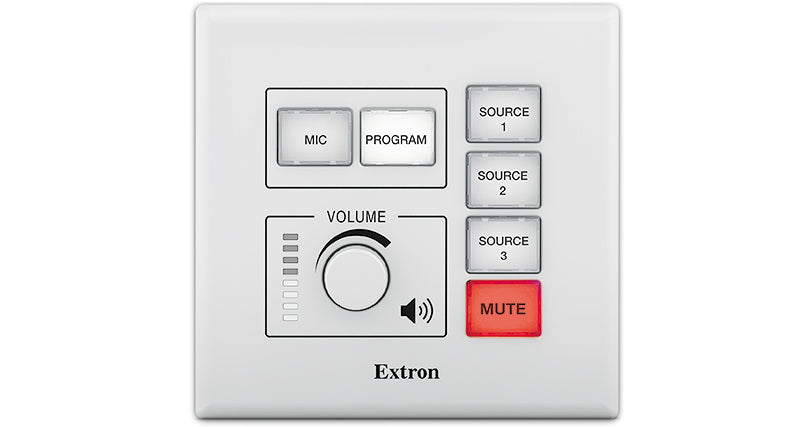

Extron ACP 100 (part number 60-1643-03) — a configurable audio control panel with six backlit buttons and a rotary volume knob, mounting in a standard US 2-gang box.

What makes this panel worth specifying is what it does not require: no control processor, no programming environment, no separate control network. It plugs into the ACP port on an Extron DMP Plus Series digital matrix processor and is configured in DSP Configurator software. From there it handles the things people actually touch, mixing and zone volume, mute, and recall of stored presets or macros. Up to eight ACP Series panels can be linked, each operating its own zone independently or all of them acting in parallel once a divisible room is combined. Buttons are dual-colour and backlit, so they read in a darkened room, and labels are produced in Extron's Button Label Generator software.

Key Capabilities

• Six dual-colour, customizable, backlit buttons plus a volume knob with LED feedback.

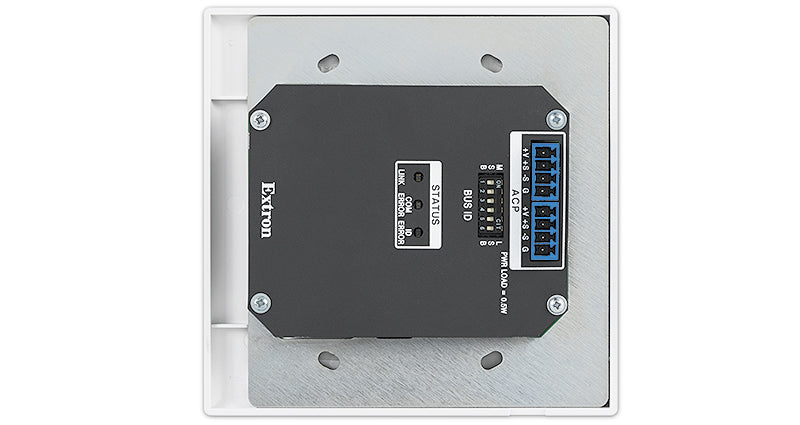

• Two ACP ports on 4-pole 3.5 mm captive screw connectors allow daisy-chaining and expansion.
• Up to eight panels can be ganged around one meeting space.
• Draws only 0.5 watts at 12 VDC, powered from the ACP-enabled processor or an optional supply.
• Configured entirely in Extron DSP Configurator; no control system needed.
• Compatible with EBDB distribution hubs to shorten cable runs in larger systems.

Where It Is Used

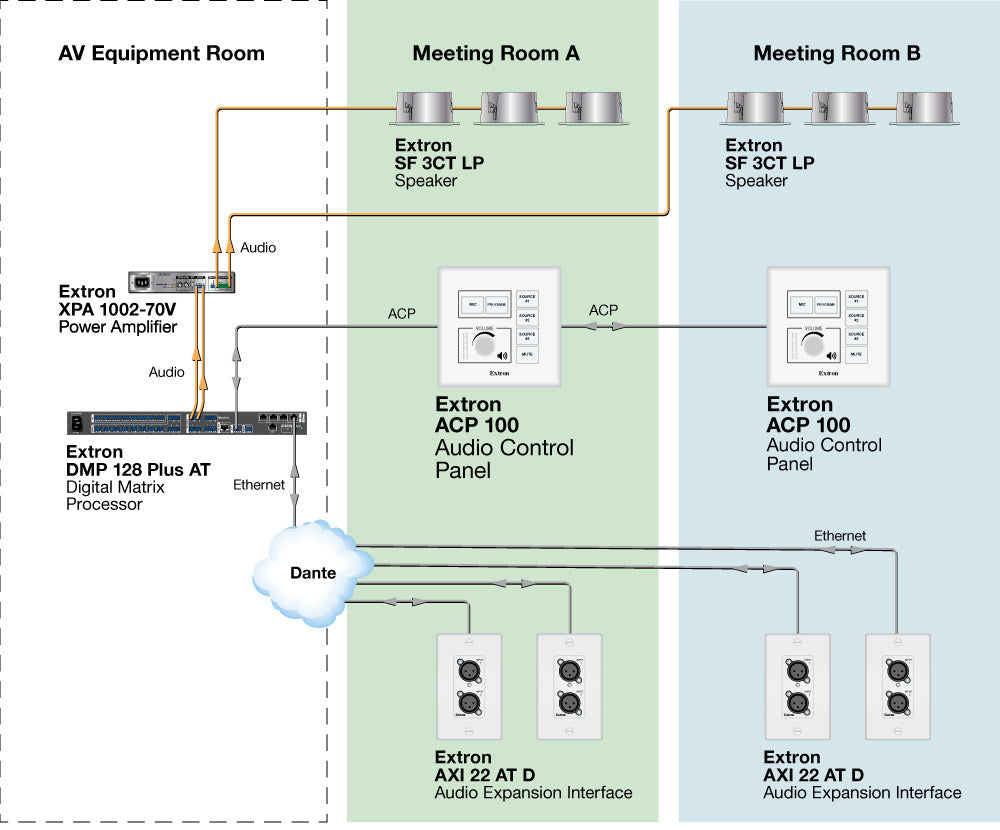

Wall positions in divisible meeting rooms and boardrooms for combined or independent zone control, lecterns where a presenter needs immediate access to microphone and program level, and multi-purpose spaces built on a DMP Plus processor. Because the panel shares its physical form with Extron MediaLink controllers, it sits alongside them without breaking the visual language of a facility.

Specifications at a Glance

• Controls: 6 backlit buttons, 1 rotary volume knob
• Ports: (2) 3.5 mm captive screw, 4 pole; +12 VDC, +S, -S, ground
• Power: 0.5 watts at 12 VDC from the processor

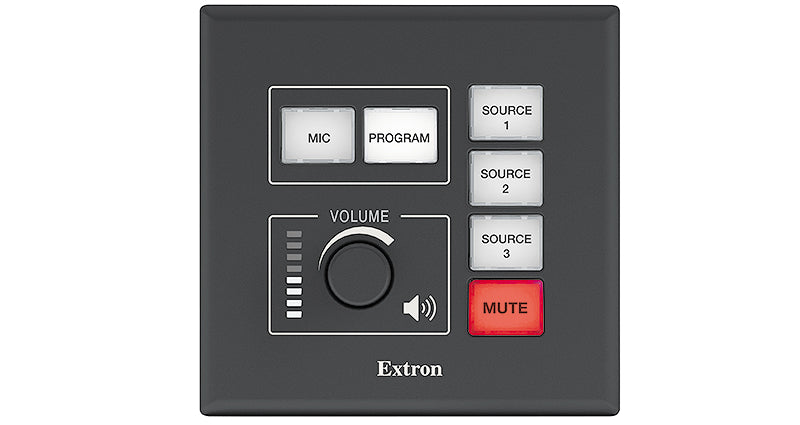

• Mounting: US 2-gang junction box or mud ring; black and white faceplates included
• Warranty: 3 years parts and labor

Also referenced as Extron ACP100, ACP-100, part number 60164303.
