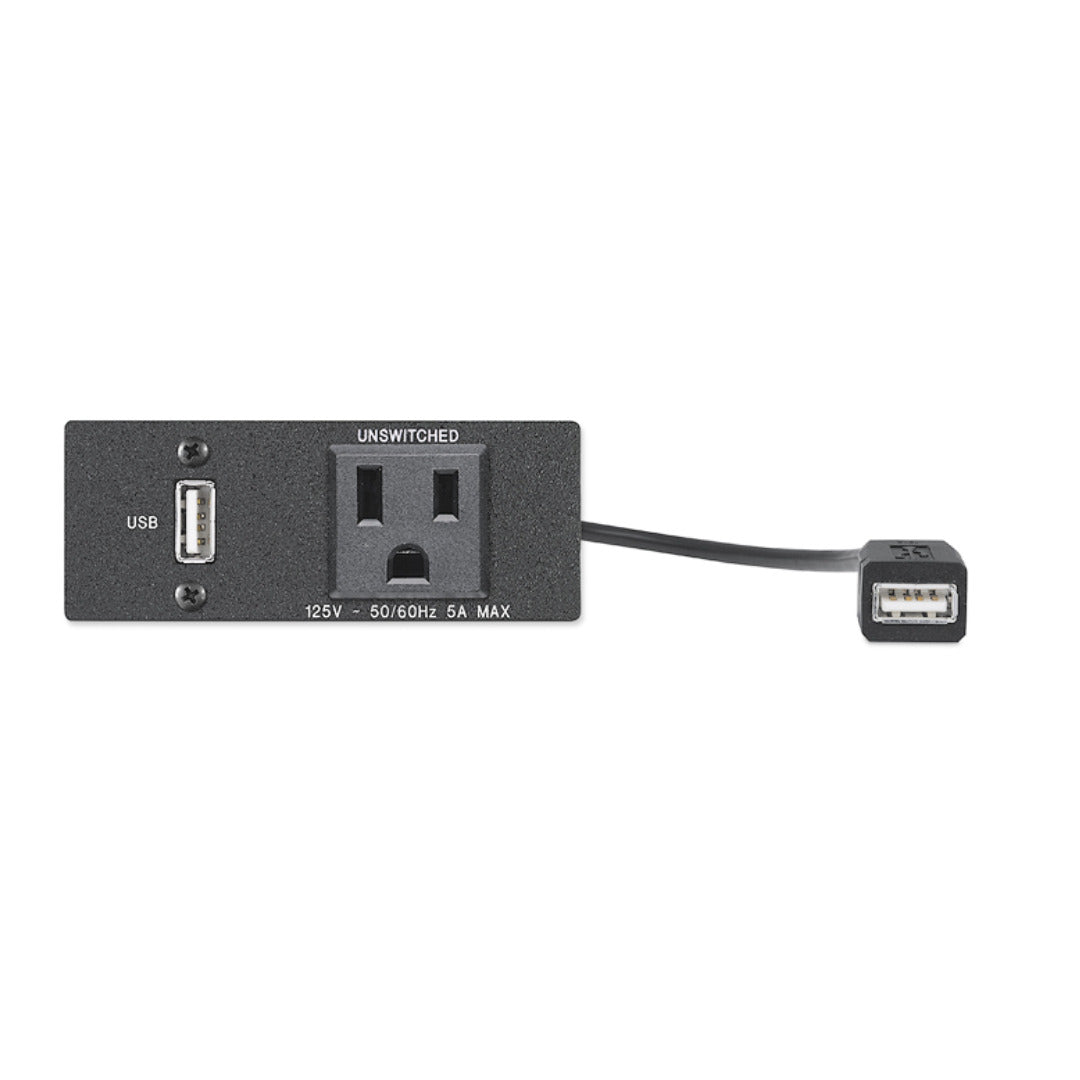

Extron AC USB AAP (part number 70-608-12) — a black AAP AV connectivity module pairing a US AC outlet with a USB 2.0 pass-through on a Type-A pigtail.

This part covers the everyday case: a presenter needs somewhere to plug in a power supply and somewhere to plug in a USB cable, both flush with the furniture. The AC side delivers 125 VAC, 50-60 Hz at up to 12 A through a 9 ft (2.7 m) cord terminated with a NEMA 5-15R receptacle and a NEMA 5-15P plug. The USB 2.0 link runs Type A female to Type A female at high speed, 480 Mbps, on a short 12.30 in (312 mm) tail sized to reach a switcher or interface immediately behind the plate. The module takes two AAP spaces and needs 2.77 in of clear depth.

Key Capabilities

• Black double-space AAP plate with AC outlet and USB 2.0
• 125 VAC, 50-60 Hz outlet rated to 12 A maximum
• USB 2.0 Type A to Type A at 480 Mbps high speed
• 12.30 in (312 mm) USB tail, 0.18 in outer diameter
• 9 ft (2.7 m) AC cord, NEMA 5-15R to NEMA 5-15P
• Metal enclosure weighing 1.1 lbs (0.50 kg)
• UL, c-UL and CE compliant, 3-year warranty

Where It Is Used

Installed in lecterns, conference and training tables, wall plates and equipment furniture across classrooms, boardrooms and briefing rooms, particularly where a USB peripheral such as a keyboard, touch panel or interface sits just behind the plate and needs a short, tidy connection.

Specifications at a Glance

• Power: 125 VAC, 50-60 Hz, 12 A max
• USB: 2.0 Type A to Type A, 480 Mbps
• Faceplate: 1.39 x 3.50 in (35 x 89 mm), double space AAP
• Weight: 1.1 lbs (0.50 kg)
• Compliance: UL, c-UL, CE

Extron currently lists part number 70-608-12 as retired; confirm availability before specifying it on a new project.

Also referenced as Extron ACUSBAAP, AC-USB-AAP, part number 7060812.
