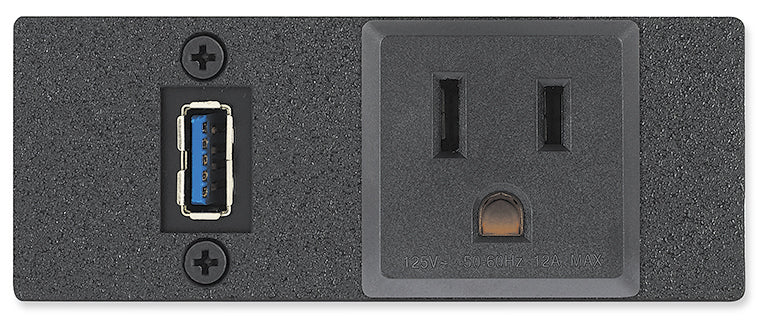

Extron AC USB AAP (part number 70-608-02) — the black finish of Extron's AAP AV connectivity module combining a US AC outlet with a USB pass-through.

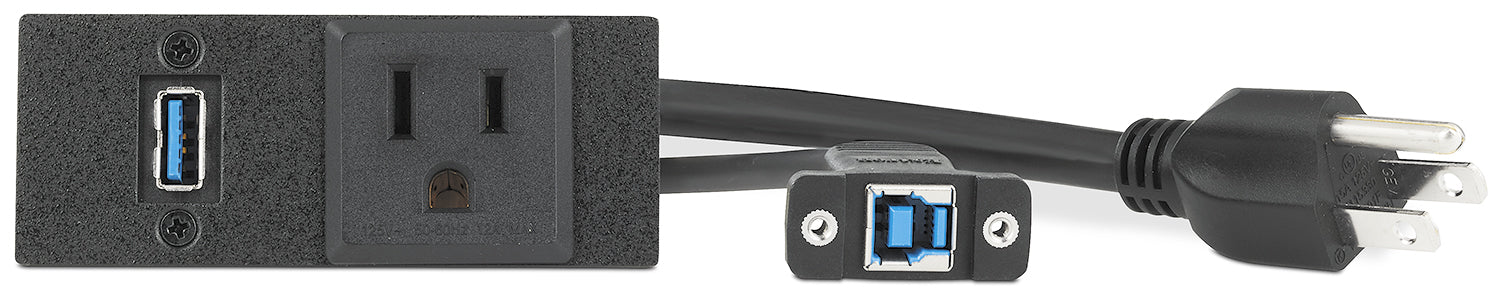

Extron's model table lists this part simply as the black version, alongside a white equivalent. Functionally it is an AAP-format plate that brings mains power and a USB connection to the surface of a lectern, table or wall. The AC outlet is rated 125 VAC, 50-60 Hz at 12 A maximum, wired through a 9 ft (2.7 m) cord with a NEMA 5-15R receptacle at the plate end and a NEMA 5-15P plug at the other. The plate takes two AAP spaces at 1.39 by 3.50 in and needs at least 2.77 in of clear depth behind the mounting surface.

Key Capabilities

• Black double-space AAP plate with AC outlet and USB pass-through
• 125 VAC, 50-60 Hz outlet rated to 12 A maximum
• 9 ft (2.7 m) AC cord, NEMA 5-15R to NEMA 5-15P
• Faceplate measures 1.39 x 3.50 in (35 x 89 mm)
• Requires at least 2.77 in (70 mm) of depth behind the surface
• Rack or furniture mountable with optional AAP frames
• Metal enclosure, UL, c-UL and CE compliant

Where It Is Used

Used in lecterns, conference and training tables, equipment racks and wall plates across classrooms, boardrooms and briefing rooms, wherever an integrator needs power and USB to appear together in a standard AAP opening rather than as two separate plates.

Specifications at a Glance

• Finish: black
• Power: 125 VAC, 50-60 Hz, 12 A max
• Faceplate: 1.39 x 3.50 in (35 x 89 mm), double space AAP
• Mounting: rack or furniture, optional AAP frames
• Warranty: 3 years parts and labor

Extron's model table does not state the USB revision for 70-608-02, and lists the part as retired. Confirm the USB version and availability with Ampronix before ordering.

Also referenced as Extron ACUSBAAP, AC-USB-AAP, part number 7060802.
