Extron AC USB AAP AC Outlet and USB 3.2 AAP Module
- • Extron AC USB AAP black USB 3.2 AC outlet module
- • USB 3.2 Gen 1 pass-through at 5 Gbps
- • 125 VAC 12 A outlet, 9 ft AC cord
- • Sales, replacement and exchange
- • Part# 60-1940-02 / 60194002
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Manufacturer: Extron; Model: AC USB AAP (Black, USB 3.2); Part number: 60-1940-02 (also written 60194002)

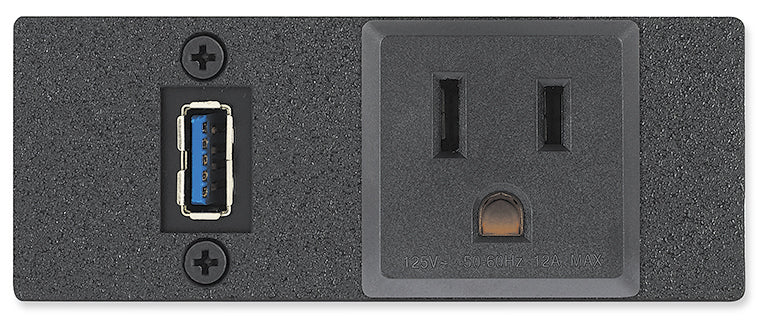

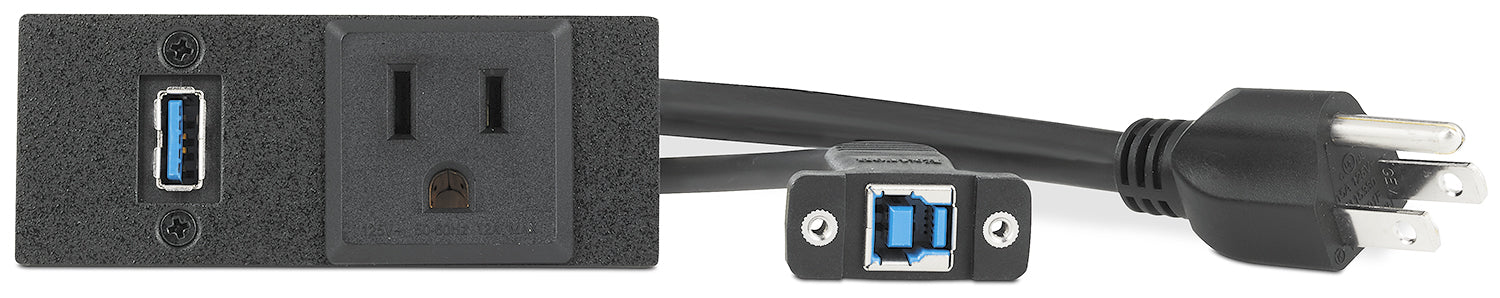

The Extron AC USB AAP Black USB 3.2 (60-1940-02) is a new double-space AAP connectivity module available through Ampronix combining a US AC outlet with a USB 3.2 Gen 1 SuperSpeed 5 Gbps pass-through. The AC outlet is rated 125 VAC, 50-60 Hz, 12 A max, wired through a 9 ft (2.7 m) NEMA 5-15 cord. The USB side is Type A female to Type B female, reversible, on a 12.90 in (327 mm) pigtail. Double-space AAP faceplate: 1.39 x 3.50 in. Allow 2.77 in depth. Metal, 1.2 lbs. Black finish. UL, c-UL, CE compliant.
Key capabilities
- US AC outlet: 125 VAC, 50-60 Hz, 12 A maximum
- USB 3.2 Gen 1 SuperSpeed pass-through: 5 Gbps; Type A female to Type B female, reversible
- USB pigtail: 12.90 in (327 mm), 0.25 in OD
- AC cord: 9 ft (2.7 m), NEMA 5-15R to NEMA 5-15P; black finish
- Double-space AAP faceplate: 1.39 x 3.50 in; metal, 1.2 lbs; UL, c-UL, CE
Where it is used
Huddle rooms and conference tables running USB 3.2 cameras or speakerphones, classroom lecterns feeding document cameras, and control positions where a fast USB link and mains power must share one AAP opening.
Specifications at a glance
- AC: 125 VAC, 50-60 Hz, 12 A max; USB: 3.2 Gen 1, 5 Gbps; faceplate: double-space AAP, black
- Weight: 1.2 lbs; warranty: 3-year
Frequently asked questions about the Extron AC USB AAP Black USB 3.2 AC Outlet Module
Is the Extron AC USB AAP Black USB 3.2 60-1940-02 available new or refurbished?
Ampronix stocks the 60-1940-02 as a new unit through its authorized Extron distribution agreement.
What is the difference between the USB 3.2 60-1940-02 and the USB 2.0 60-1935-02?
The 60-1940-02 supports USB 3.2 Gen 1 at 5 Gbps SuperSpeed and has a Type B female pigtail; the 60-1935-02 supports USB 2.0 at 480 Mbps with a Type A female pigtail. The 60-1935-02 has been retired by Extron.
Does Ampronix offer replacement and exchange for Extron AC USB AAP modules?
Ampronix supplies a full range of Extron AAP and MAAP connectivity modules and replacement parts.
Ampronix is an authorized Extron distributor and carries a full range of Extron AAP and MAAP connectivity modules.
Also referenced as Extron ACUSBAAP USB3.2 Black, AC-USB-AAP, part number 60194002.
