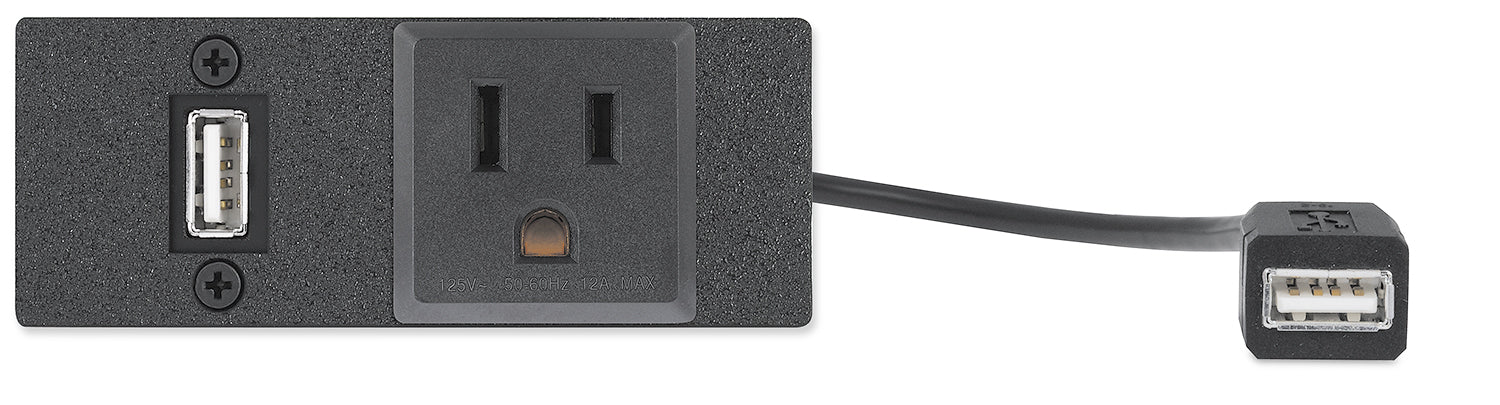

Extron AC USB AAP (part number 60-1935-02) — the black AAP AV connectivity module combining a US AC outlet with a USB 2.0 pass-through, listed by Extron with a USB 2.0 Type-A pigtail.

AAP modules let an integrator put exactly the connectors a room needs behind a single faceplate. This one solves the two most common requests at once: mains power and a USB feed. The AC side is rated 125 VAC, 50-60 Hz at 12 A maximum and terminates in a 9 ft (2.7 m) cord with a NEMA 5-15R receptacle at the plate and a NEMA 5-15P plug at the far end. The USB 2.0 side runs Type A female to Type A female at high speed, 480 Mbps, on a 12.30 in (312 mm) tail. The plate occupies two AAP spaces and needs at least 2.77 in of depth behind the surface.

Key Capabilities

• AC outlet and USB 2.0 pass-through on one double-space AAP plate
• 125 VAC, 50-60 Hz rated to 12 A maximum
• USB 2.0 Type A female to Type A female, 480 Mbps high speed
• 9 ft (2.7 m) AC cord, NEMA 5-15R to NEMA 5-15P
• Faceplate 1.39 x 3.50 in; allow 2.77 in of depth behind
• Metal enclosure weighing 1.1 lbs (0.50 kg)
• UL, c-UL and CE compliant with a 3-year warranty

Where It Is Used

Fitted into lecterns, conference tables, wall plates and equipment furniture wherever a presenter needs a mains socket and a USB connection at the surface — classrooms, boardrooms, training rooms and control positions that run cameras, interfaces or storage over USB.

Specifications at a Glance

• Power: 125 VAC, 50-60 Hz, 12 A max
• USB: 2.0 Type A to Type A, 480 Mbps
• Faceplate: 1.39 x 3.50 in (35 x 89 mm), double space AAP
• Weight: 1.1 lbs (0.50 kg)
• Compliance: UL, c-UL, CE

Extron currently lists part number 60-1935-02 as retired; confirm availability before specifying it on a new project.

Also referenced as Extron ACUSBAAP, AC-USB-AAP, part number 60193502.
