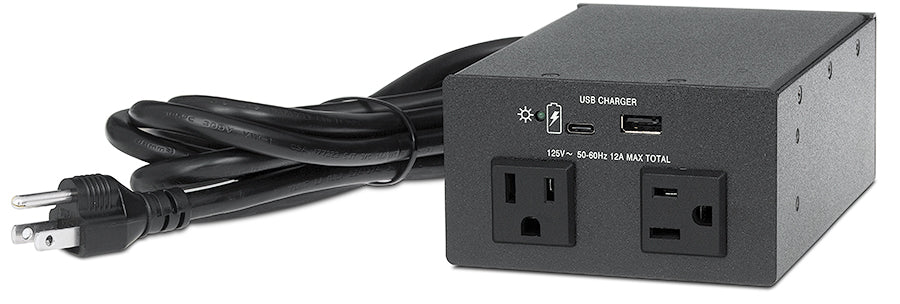

Extron AC+USB 311 US, Cord (part number 60-1782-01) — the North American cord-connected version of Extron's USB-C capable Cable Cubby power module.

US models in the 300 Series carry two unswitched 125 V outlets rather than the single outlet found on export versions, alongside one USB Type-C and one USB Type-A connector. The Type-C port negotiates 5, 9, 12, 15 or 20 VDC and supplies up to 45 watts, which covers most USB-C notebooks; Type-A adds 10 watts for phones, headsets and older accessories. Mains is rated 125 VAC, 50-60 Hz at 12 A total. The US chassis is deeper than the export module at 6.00 in, and the attached cord needs a further 1.00 in of clearance for its bend radius.

Key Capabilities

• Two unswitched US AC outlets plus USB Type-C and Type-A
• USB Type-C supplies up to 45 W across five voltage profiles
• USB Type-A adds 5 VDC at up to 2 A, 10 watts maximum
• 125 VAC, 50-60 Hz mains with a 12 A total maximum
• Allow 1.00 in of extra depth for the AC cord bend radius
• Aluminium body, 2.4 lbs (1.1 kg), 6.00 in deep
• UL and c-UL listed with a 3-year warranty

Where It Is Used

Specified into US and Canadian boardrooms and huddle rooms, university lecterns and active-learning tables, training and briefing suites, design studios, and clinical conference rooms where laptops charge over USB-C and the table still needs two mains outlets.

Specifications at a Glance

• Outlets: two US AC, one USB Type-C, one USB Type-A
• AC power: 125 VAC, 50-60 Hz, 12 A max total
• USB: 45 W on Type-C, 10 W on Type-A
• Enclosure: 2.40 x 4.20 x 6.00 in (61 x 107 x 152 mm)
• Weight: 2.4 lbs (1.1 kg)

Also referenced as Extron ACUSB311US, AC-USB-311-US, part number 60178201.
