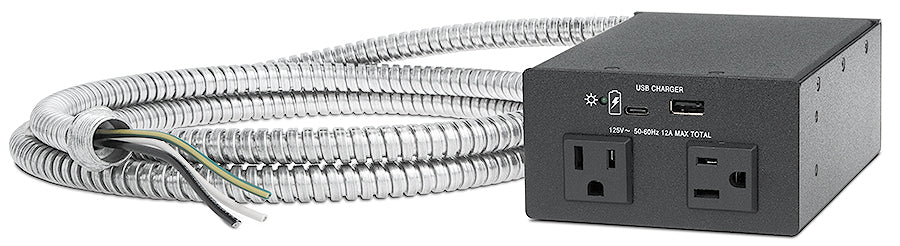

Extron AC+USB 311 US, Conduit (part number 60-1782-20) — the hard-wired North American version of Extron's USB-C capable Cable Cubby power module.

Extron lists this part as two US AC outlets with one USB Type-C and one USB Type-A outlet, in the conduit configuration. It exists for projects where the electrical specification will not accept a cord-and-plug connection to furniture; the module is wired into a UL listed junction box instead. Above the surface it behaves identically to the cord version: two unswitched 125 V outlets, a Type-C port supplying up to 45 watts across five negotiated voltages, and a Type-A port good for 10 watts. Mains is rated 12 A total, and the conduit needs 5.00 in of extra depth to bend.

Key Capabilities

• Two unswitched US AC outlets plus USB Type-C and Type-A
• Conduit configuration for permanent junction-box wiring
• USB Type-C delivers up to 45 W, Type-A up to 10 W
• 125 VAC, 50-60 Hz mains with a 12 A total maximum
• Allow 5.00 in of extra depth for the conduit bend radius
• Aluminium body at 2.3 lbs (1.0 kg), 6.00 in deep
• UL and c-UL listed, 3-year parts and labor warranty

Where It Is Used

Chosen for permanent millwork in courtrooms and council chambers, hospital and clinical conference rooms, higher-education lecture furniture, secure facilities and corporate headquarters where hard-wired furniture power is a condition of the electrical design.

Specifications at a Glance

• Outlets: two US AC, one USB Type-C, one USB Type-A
• AC power: 125 VAC, 50-60 Hz, 12 A max total
• USB: 45 W on Type-C, 10 W on Type-A
• Enclosure: 2.40 x 4.20 x 6.00 in (61 x 107 x 152 mm)
• Weight: 2.3 lbs (1.0 kg)

Also referenced as Extron ACUSB311US, AC-USB-311-US, part number 60178220.
