Details

Manufacturer: Extron; Model: AC+USB 311 UK; Part number: 60-1782-02 (also written 60178202)

The Extron AC+USB 311 UK (60-1782-02) is a new Cable Cubby Series power module available through Ampronix offering one UK AC outlet, a USB Type-C port (up to 45 W), and a USB Type-A port. The AC side takes 240 VAC at 50-60 Hz with a 10 A total maximum, and an external Extron power supply drives the USB circuitry.

Key capabilities

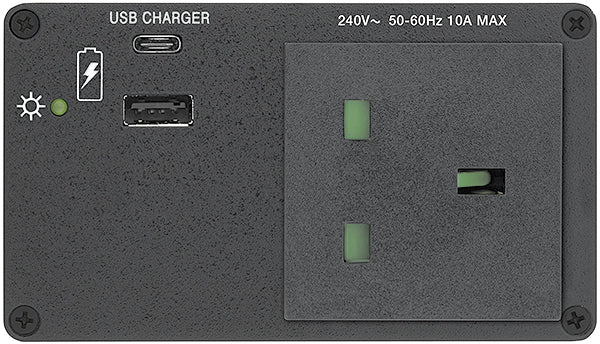

One UK AC outlet plus USB Type-C and USB Type-A charging ports
USB Type-C delivers up to 45 W across five voltage profiles
47.5 watts combined USB output on non-US models
240 VAC, 50-60 Hz AC feed with a 10 A total maximum
Aluminium body, 1.6 lbs (0.8 kg), 2.99 in deep

Where it is used

UK corporate boardrooms, university lecture theaters, NHS meeting rooms, and conference hotels where laptop fleets have moved to USB-C and desks need built-in charging.

Specifications at a glance

Outlets: one UK AC, one USB Type-C, one USB Type-A
AC power: 240 VAC, 50-60 Hz, 10 A max total
USB: up to 45 W on Type-C, 47.5 W combined

Frequently asked questions about the Extron AC+USB 311 UK AC + USB-C + USB-A Cable Cubby

Is the Extron AC+USB 311 UK 60-1782-02 available new or refurbished?

Ampronix stocks the AC+USB 311 UK (60-1782-02) as a new unit through its authorized Extron distribution agreement.

What Cable Cubby enclosures is the AC+USB 311 UK compatible with?

The 60-1782-02 is designed for Extron Cable Cubby Series enclosures; consult Extron's compatibility guide to confirm fit with the specific Cable Cubby model in your project.

Does Ampronix offer replacement and exchange for the Extron AC+USB 311 UK?

Ampronix supplies a full range of Extron Cable Cubby accessories and replacement parts including the AC+USB 311 series.

Ampronix is an authorized Extron distributor and carries a full range of Extron Cable Cubby accessories and replacement parts.

Also referenced as Extron ACUSB311UK, AC-USB-311-UK, part number 60178202.

Specifications

Part Number: 60-1782-02

Manufacturer: Extron

Model: AC+USB 311 UK

Condition: New

AC Outlets: (1) UK outlet, unswitched

USB Outlets: (1) USB Type-C, (1) USB Type-A

AC Power Output: 240 VAC, 50-60 Hz, 10 A max total

USB Type-C Output: 5 VDC @ up to 3 A, 9 VDC @ up to 3 A, 12 VDC @ up to 3 A, 15 VDC @ up to 3 A, or 20 VDC @ up to 2.25 A

USB Type-A Output: 5 VDC @ up to 2 A (5 VDC up to 0.5 A when USB Type-C is in the 15 VDC or 20 VDC profile)

USB Combined Output: 47.5 total watts combined USB Type-C and USB Type-A

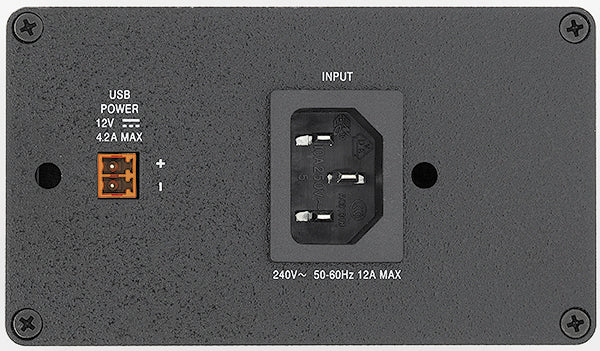

USB Power Supply: External. Input: 100-240 VAC, 50-60 Hz. Output: 12 VDC, 4.2 A

USB Power Consumption (device): 50.9 watts

USB Power Consumption (device and power supply): 55.4 watts

USB Thermal Dissipation (device): 11.4 BTU/hr

USB Thermal Dissipation (device and power supply): 27.0 BTU/hr

Cooling: Convection, no vents

Mounting: Mountable into select Cable Cubby enclosures

Material: Aluminum body

Enclosure Dimensions: 2.40 in H x 4.20 in W x 2.99 in D (61 mm H x 107 mm W x 76 mm D)

Depth Allowance: Total allowable depth depends on the detachable AC power cord used; cable bend radius can vary

Product Weight: 1.6 lbs (0.8 kg)

Operating Temperature/Humidity: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Storage Temperature/Humidity: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing

Regulatory Compliance: CE in compliance with the appropriate requirements of RoHS, WEEE

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

Diagram

Resources

Brochure | AC+USB 311 UK 60-1782-02 | Cable Cubby Series

Brochure | AC+USB 311 UK 60-1782-02 | Cable Cubby 系列

Brochure | AC+USB 311 UK 60-1782-02 | Cable Cubby-Serie

Brochure | AC+USB 311 UK 60-1782-02 | Gamme Cable Cubby

Brochure | AC+USB 311 UK 60-1782-02 | Serie Cable Cubby (CC-Series_BR_A4_SP_RevD2.pdf)

Brochure | AC+USB 311 UK 60-1782-02 | Serie Cable Cubby (CC-Series_BR_A4_IT_RevD2.pdf)

Brochure | AC+USB 311 UK 60-1782-02 | Серия Cable Cubby

Manual | AC+USB 311 UK 60-1782-02 | AC 100, AC + USB 200, and AC + USB 300 Power Module Series for the Cable Cubby Series/2 Installation Guide

Manual | AC+USB 311 UK 60-1782-02 | AC 200 and AC+USB 311 No AC Power Modules Installation Guide

Manual | AC+USB 311 UK 60-1782-02 | Multi-Region AC Outlet Guide

Specifications | AC+USB 311 UK 60-1782-02 | AC+USB 300 Power Module Series for Cable Cubby Series

Panel Drawing | AC+USB 311 UK 60-1782-02 | AC+USB 300 Series Power Modules
