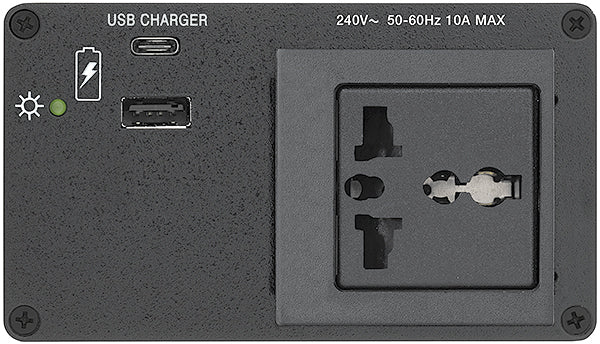

Extron AC+USB 311 MULTI (part number 60-1782-10) — a Cable Cubby Series power module pairing a Multi-Region AC outlet with a USB Type-C and a USB Type-A charging port.

This is the module for rooms where nobody's plug is predictable. The Multi-Region AC outlet accepts a range of international plug patterns, while the USB Type-C port sidesteps the problem entirely by charging modern laptops directly at up to 45 watts, negotiating 5, 9, 12, 15 or 20 VDC. A USB Type-A port handles older devices, with 47.5 watts available across both USB connectors combined. AC input is 240 VAC at 50-60 Hz with a 10 A ceiling.

Extron states the Multi-Region outlet's limitations plainly: it passes power only and does not step 240 V down to 120 V, it carries no safety-agency certification because no standard exists for multi-region outlets, and it does not ground every plug type. Extron intends it for low-amperage loads such as laptop supplies, recommends a GFCI, and advises using a localised module where one exists for the region.

Key Capabilities

• Multi-Region AC outlet accepting a variety of plug types
• USB Type-C charging at up to 45 W, no adapter required
• USB Type-A port for older devices, 47.5 W combined
• 240 VAC, 50-60 Hz AC input, 10 A maximum total

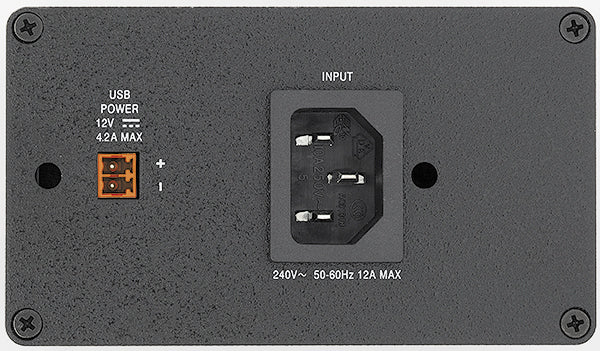

• External USB supply rated 12 VDC at 4.2 A
• Aluminium body weighing 1.6 lbs (0.8 kg)
• Intended for low-amperage devices such as laptop supplies

Where It Is Used

Well suited to international conference centres, multinational headquarters, embassy and NGO facilities, universities hosting visiting faculty, and hotel event floors, where USB-C charging removes most of the adapter problem and the Multi-Region outlet covers the rest.

Specifications at a Glance

• Outlets: one Multi-Region AC, one USB Type-C, one USB Type-A
• AC power: 240 VAC, 50-60 Hz, 10 A max total
• USB: up to 45 W on Type-C, 47.5 W combined
• Weight: 1.6 lbs (0.8 kg)
• Warranty: 3 years product, 7 years Everlast power supply

Also referenced as Extron ACUSB311MULTI, AC-USB-311-MULTI, part number 60178210.
