Details

Manufacturer: Extron; Model: AC+USB 311 FR; Part number: 60-1782-06 (also written 60178206)

The Extron AC+USB 311 FR (60-1782-06) is a new Cable Cubby Series power module available through Ampronix with one French AC outlet, a USB Type-C port (up to 45 W), and a USB Type-A port. The AC circuit accepts 240 VAC at 50-60 Hz with a 10 A ceiling, and an external Extron supply drives the USB section.

Key capabilities

One France AC outlet plus USB Type-C and USB Type-A ports
USB Type-C supports 5, 9, 12, 15, and 20 VDC profiles
Up to 47.5 watts combined across both USB connectors
240 VAC, 50-60 Hz mains rated at 10 A maximum total
Aluminium body, 1.6 lbs (0.8 kg)

Where it is used

French corporate headquarters, grandes ecoles, public-sector conference facilities, and hotel event spaces where USB-C laptop charging is built into the furniture.

Specifications at a glance

Outlets: one France AC, one USB Type-C, one USB Type-A
AC power: 240 VAC, 50-60 Hz, 10 A max total
USB: up to 45 W on Type-C, 47.5 W combined

Frequently asked questions about the Extron AC+USB 311 FR AC + USB-C + USB-A Cable Cubby

Is the Extron AC+USB 311 FR 60-1782-06 available new or refurbished?

Ampronix stocks the AC+USB 311 FR (60-1782-06) as a new unit through its authorized Extron distribution agreement.

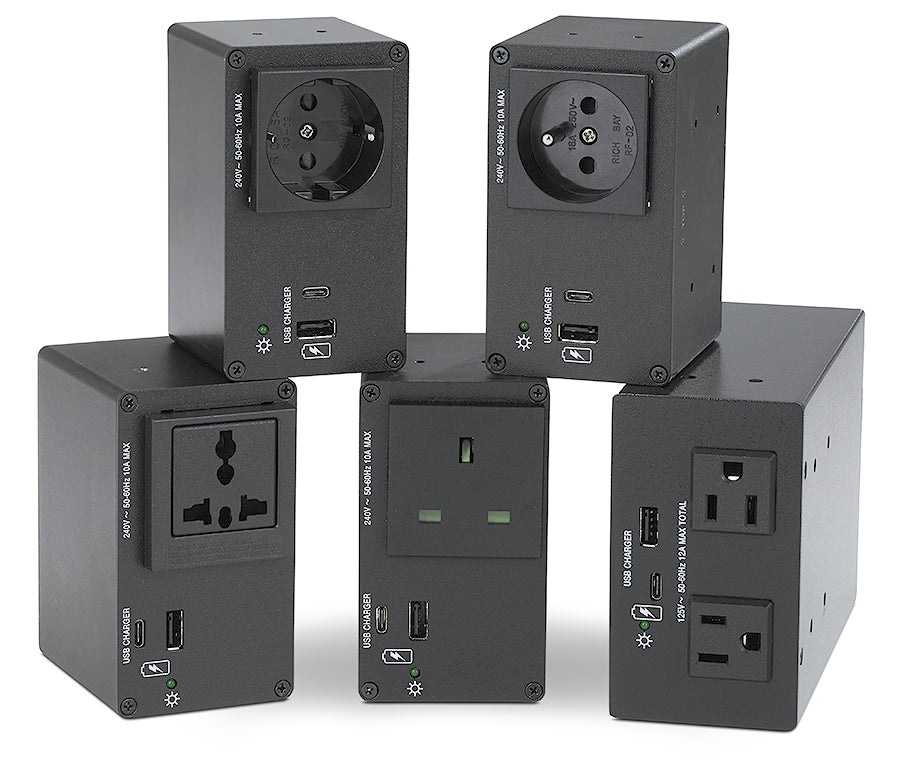

What is the difference between the AC+USB 311 FR and the AC+USB 311 EU?

Both use 240 VAC at 10 A; the FR uses a French-standard AC outlet while the EU uses a standard European outlet. Choose based on the outlet type standard for your installation country.

Does Ampronix offer replacement and exchange for the Extron AC+USB 311 FR?

Ampronix supplies a full range of Extron Cable Cubby accessories and replacement parts including the AC+USB 311 series.

Ampronix is an authorized Extron distributor and carries a full range of Extron Cable Cubby accessories and replacement parts.

Also referenced as Extron ACUSB311FR, AC-USB-311-FR, part number 60178206.

Specifications

Part Number: 60-1782-06

Manufacturer: Extron

Model: AC+USB 311 FR

Condition: New

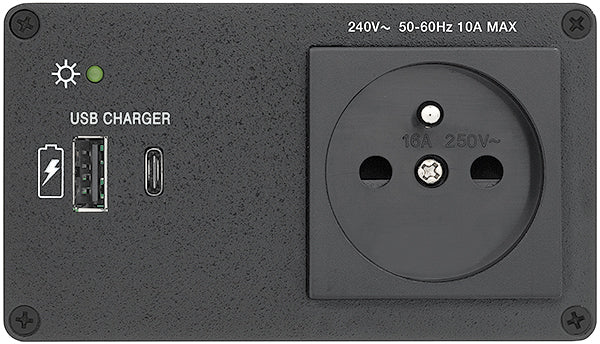

AC Outlets: (1) France outlet, unswitched

USB Outlets: (1) USB Type-C, (1) USB Type-A

AC Power Output: 240 VAC, 50-60 Hz, 10 A max total

USB Type-C Output: 5 VDC @ up to 3 A, 9 VDC @ up to 3 A, 12 VDC @ up to 3 A, 15 VDC @ up to 3 A, or 20 VDC @ up to 2.25 A

USB Type-A Output: 5 VDC @ up to 2 A (5 VDC up to 0.5 A when USB Type-C is in the 15 VDC or 20 VDC profile)

USB Combined Output: 47.5 total watts combined USB Type-C and USB Type-A

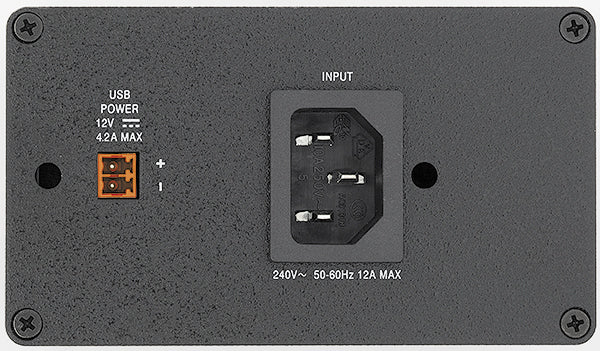

USB Power Supply: External. Input: 100-240 VAC, 50-60 Hz. Output: 12 VDC, 4.2 A

USB Power Consumption (device): 50.9 watts

USB Power Consumption (device and power supply): 55.4 watts

USB Thermal Dissipation (device): 11.4 BTU/hr

USB Thermal Dissipation (device and power supply): 27.0 BTU/hr

Cooling: Convection, no vents

Mounting: Mountable into select Cable Cubby enclosures

Material: Aluminum body

Enclosure Dimensions: 2.40 in H x 4.20 in W x 2.99 in D (61 mm H x 107 mm W x 76 mm D)

Depth Allowance: Total allowable depth depends on the detachable AC power cord used; cable bend radius can vary

Product Weight: 1.6 lbs (0.8 kg)

Operating Temperature/Humidity: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Storage Temperature/Humidity: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing

Regulatory Compliance: CE in compliance with the appropriate requirements of RoHS, WEEE

Product Warranty: 3 years parts and labor

Everlast Power Supply Warranty: 7 years parts and labor

Diagram

Resources

Brochure | AC+USB 311 FR 60-1782-06 | Cable Cubby Series

Brochure | AC+USB 311 FR 60-1782-06 | Cable Cubby 系列

Brochure | AC+USB 311 FR 60-1782-06 | Cable Cubby-Serie

Brochure | AC+USB 311 FR 60-1782-06 | Gamme Cable Cubby

Brochure | AC+USB 311 FR 60-1782-06 | Serie Cable Cubby (CC-Series_BR_A4_SP_RevD2.pdf)

Brochure | AC+USB 311 FR 60-1782-06 | Serie Cable Cubby (CC-Series_BR_A4_IT_RevD2.pdf)

Brochure | AC+USB 311 FR 60-1782-06 | Серия Cable Cubby

Manual | AC+USB 311 FR 60-1782-06 | AC 100, AC + USB 200, and AC + USB 300 Power Module Series for the Cable Cubby Series/2 Installation Guide

Manual | AC+USB 311 FR 60-1782-06 | AC 200 and AC+USB 311 No AC Power Modules Installation Guide

Manual | AC+USB 311 FR 60-1782-06 | Multi-Region AC Outlet Guide

Specifications | AC+USB 311 FR 60-1782-06 | AC+USB 300 Power Module Series for Cable Cubby Series

Panel Drawing | AC+USB 311 FR 60-1782-06 | AC+USB 300 Series Power Modules
