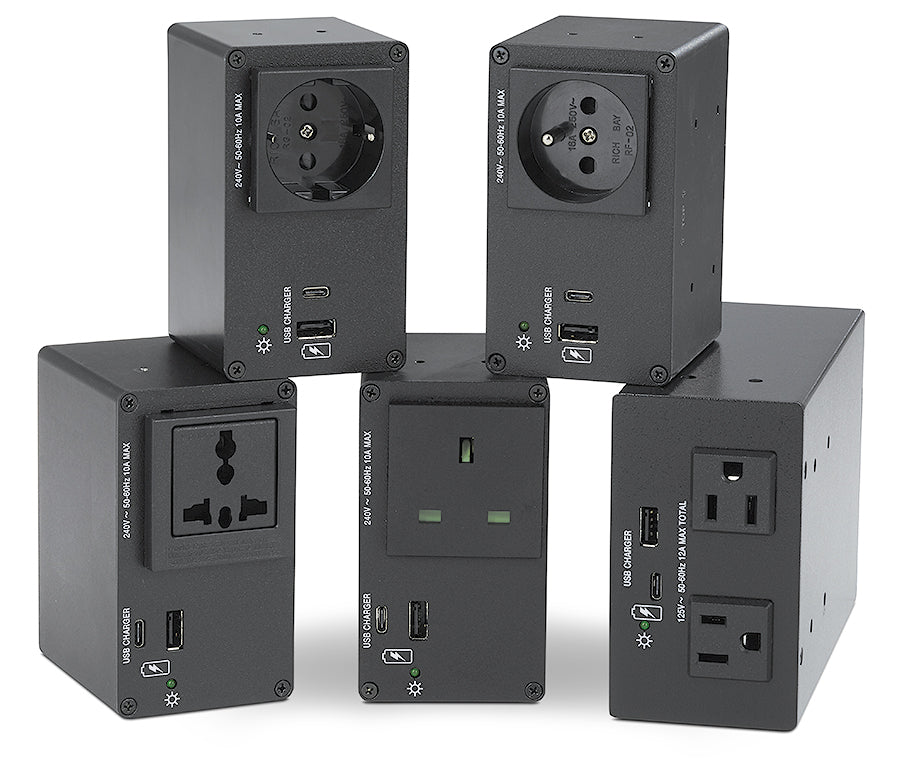

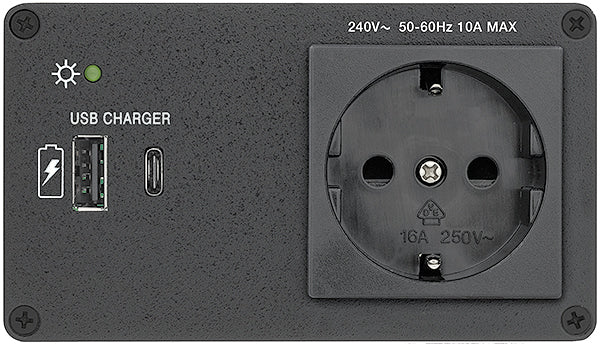

Extron AC+USB 311 EU (part number 60-1782-03) — a Cable Cubby Series power module combining one European AC outlet with a USB Type-C and a USB Type-A charging port.

The 300 Series is Extron's answer to USB-C laptops. Alongside a single unswitched Europe AC outlet, this module carries a USB Type-C port that negotiates 5, 9, 12, 15 or 20 VDC and delivers up to 45 watts — enough to run many thin-and-light notebooks without their own charger — plus a USB Type-A port for older devices. Combined USB output on non-US models reaches 47.5 watts. The mains side runs at 240 VAC, 50-60 Hz with a 10 A total limit, and an external Extron supply feeds the USB section so the in-table module stays only 2.99 in deep.

Key Capabilities

• One Europe AC outlet plus USB Type-C and USB Type-A ports
• USB Type-C negotiates 5, 9, 12, 15 or 20 VDC at up to 3 A
• 47.5 watts total across the two USB connectors
• 240 VAC, 50-60 Hz AC input, 10 A maximum total

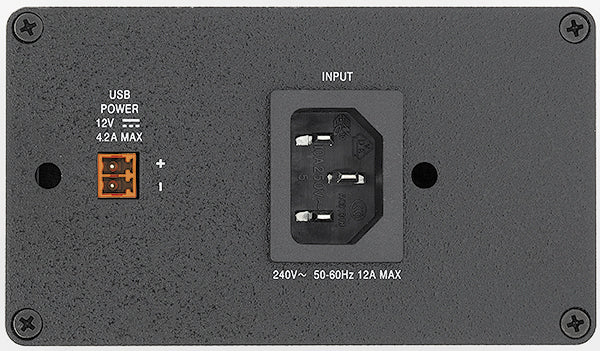

• External USB supply: 100-240 VAC in, 12 VDC at 4.2 A out
• Aluminium body, only 1.6 lbs (0.8 kg)
• 3-year product warranty, 7-year Everlast supply warranty

Where It Is Used

European boardrooms and executive meeting rooms, university lecture and study spaces, design and engineering studios running USB-C workstations, plus hotel and conference-centre furniture, all benefit from a table that charges a modern laptop over USB-C without a power brick.

Specifications at a Glance

• Outlets: one Europe AC, one USB Type-C, one USB Type-A
• AC power: 240 VAC, 50-60 Hz, 10 A max total
• USB: up to 45 W on Type-C, 47.5 W combined
• Enclosure: 2.40 x 4.20 x 2.99 in (61 x 107 x 76 mm)
• Weight: 1.6 lbs (0.8 kg)

Also referenced as Extron ACUSB311EU, AC-USB-311-EU, part number 60178203.
