Extron AC+USB 224 US, Conduit (part number 60-1697-20) — the hard-wired version of Extron's AC+USB 224 Cable Cubby power module.

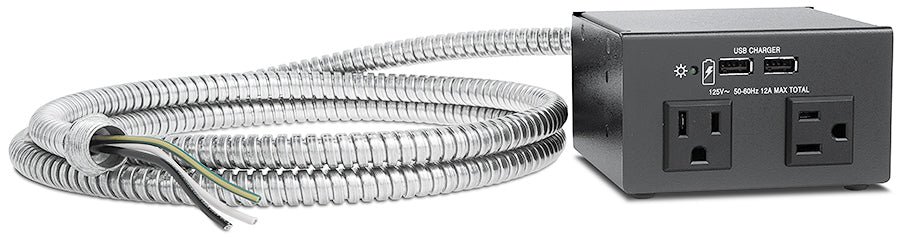

Extron catalogues this part as two US AC outlets and two USB Type-A outlets with an integrated power supply, in the conduit configuration. The conduit matters on projects where an inspector or a consultant's specification will not accept furniture power terminating in a plug; the module is wired instead into a UL listed junction box. At the surface nothing changes: two unswitched 125 V outlets and two USB Type-A charging ports. Mains is rated 125 VAC, 50-60 Hz at 12 A total, and USB supplies 5 VDC at 4.0 A for 20 watts. Allow 5.00 in of extra depth behind the panel for the conduit to bend.

Key Capabilities

• Two unswitched US AC outlets plus two USB Type-A ports
• Integrated power supply, per Extron's model listing
• Conduit configuration for permanent junction-box wiring
• 125 VAC, 50-60 Hz mains rated to 12 A total
• USB output 5 VDC, 4.0 A, 20 watts total
• Allow 5.00 in of extra depth for the conduit bend radius
• Metal chassis, 2.4 lbs (1.1 kg), UL and c-UL listed

Where It Is Used

Built for permanent installations: courtroom benches, hospital and clinical conference rooms, higher-education lecture furniture, government and secure facilities, and corporate headquarters millwork where hard-wired power is a condition of the electrical design.

Specifications at a Glance

• Outlets: two US AC, two USB Type-A
• AC power: 125 VAC, 50-60 Hz, 12 A max total
• USB power: 5 VDC, 4.0 A, 20 watts total
• Enclosure: 2.40 x 4.20 x 4.00 in (61 x 107 x 102 mm)
• Weight: 2.4 lbs (1.1 kg)

Also referenced as Extron ACUSB224US, AC-USB-224-US, part number 60169720.
