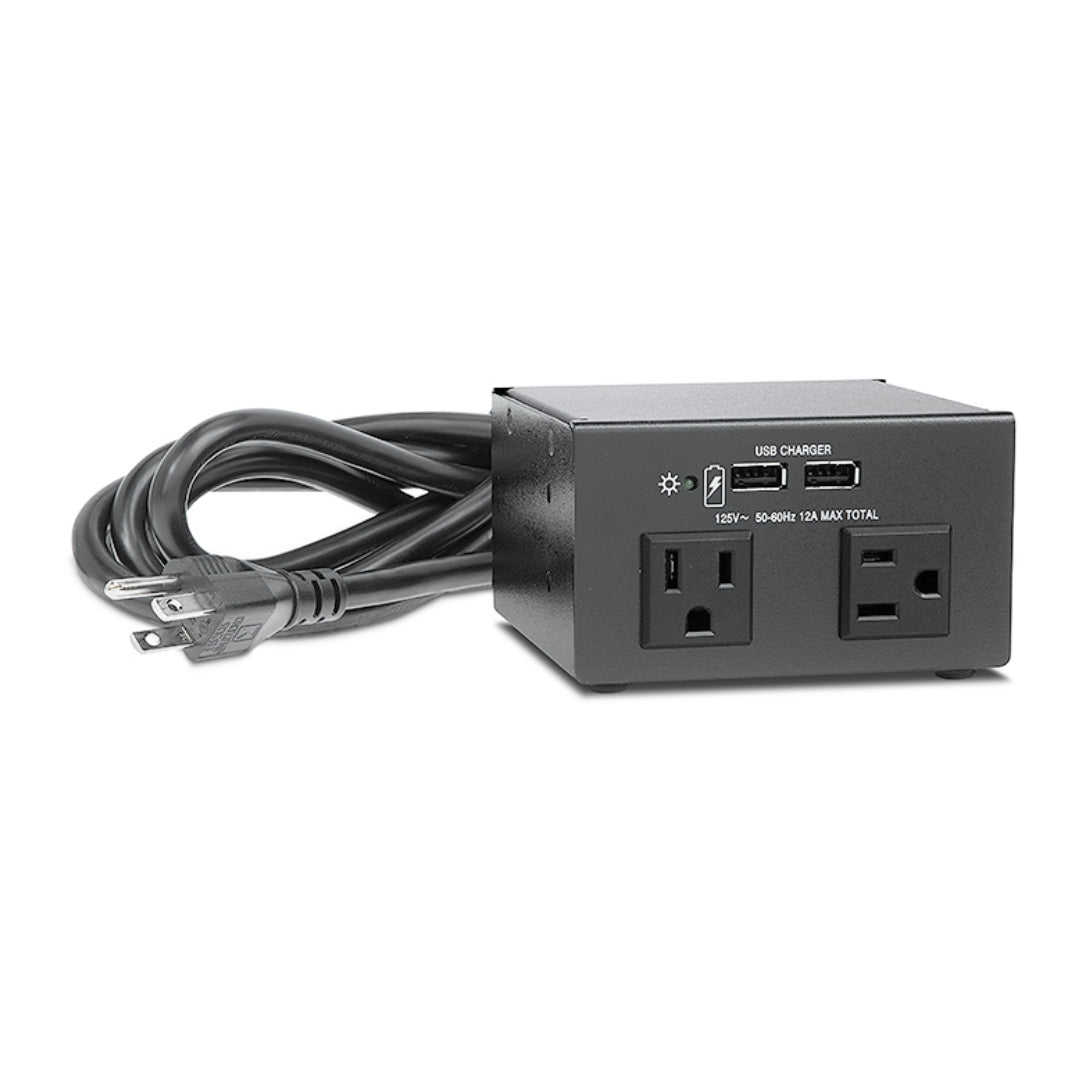

Extron AC+USB 224 US (part number 60-1697-01) — a Cable Cubby Series power module listed by Extron as two US AC outlets and two USB Type-A outlets with an integrated power supply.

The 224 sits alongside the 222 in Extron's AC+USB 200 range and is catalogued specifically as the integrated power supply version, so nothing has to be mounted separately under the table to run the USB ports. At the surface it presents two unswitched 125 V outlets and two USB Type-A connectors. The mains side accepts 125 VAC at 50-60 Hz with a 12 A total ceiling, and USB supplies 5 VDC at 4.0 A for 20 watts shared between the ports. Cooling is by convection through a sealed metal chassis, with no vents and nothing that spins.

Key Capabilities

• Two unswitched US AC outlets plus two USB Type-A ports
• Integrated power supply, per Extron's model listing
• 125 VAC, 50-60 Hz AC input, 12 A maximum total
• USB output 5 VDC, 4.0 A, 20 watts total
• 24.4 watts drawn, 18.5 BTU/hr dissipated
• Convection cooled metal enclosure, 2.5 lbs (1.1 kg)
• UL and c-UL listed; 3 years parts and labor

Where It Is Used

Suited to boardrooms and conference tables, lecterns and teaching walls, training rooms, briefing centres and clinical meeting spaces where the integrator wants power and USB charging in one module and prefers not to find room for a separate supply beneath the furniture.

Specifications at a Glance

• Outlets: two US AC, two USB Type-A
• AC power: 125 VAC, 50-60 Hz, 12 A max total
• USB power: 5 VDC, 4.0 A, 20 watts total
• Enclosure: 2.40 x 4.20 x 4.00 in (61 x 107 x 102 mm)
• Weight: 2.5 lbs (1.1 kg)

Also referenced as Extron ACUSB224US, AC-USB-224-US, part number 60169701.
