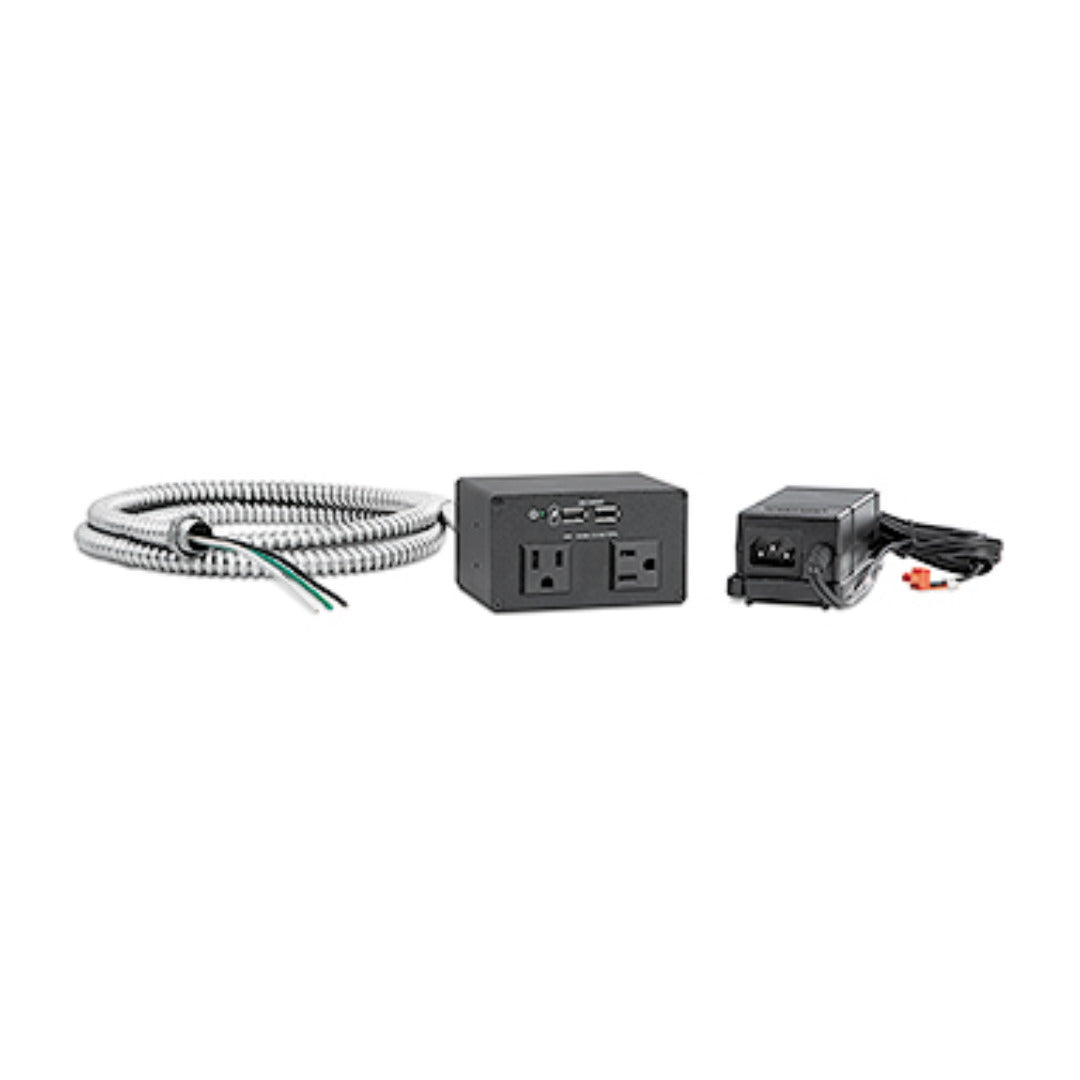

Extron AC+USB 222 US conduit model (part number 60-1384-20) — the hard-wired version of Extron's two-AC, two-USB Cable Cubby power module.

Extron lists this part as the 222 US with 6 ft (1.83 m) of conduit. It exists because many commercial and institutional projects will not permit furniture power to terminate in a plug; the module has to be wired back to a UL listed junction box instead. Everything above the surface is unchanged: two unswitched 125 V outlets and two USB Type-A charging ports, with the AC side rated at 12 A total and USB output of 5 VDC, 4.0 A, 20 watts. Below the surface, the conduit needs 5.00 in of extra depth to turn, and the module runs slightly lighter than the cord version at 2.4 lbs.

Key Capabilities

• Two unswitched US AC outlets plus two USB Type-A ports
• 6 ft (1.83 m) of conduit for permanent junction-box wiring
• 125 VAC, 50-60 Hz supply with a 12 A total maximum
• USB output 5 VDC, 4.0 A, 20 watts across both connectors
• Allow 5.00 in of extra depth for the conduit bend radius
• Metal chassis at 2.4 lbs (1.1 kg), 4.00 in deep
• UL and c-UL listed with a 3-year warranty

Where It Is Used

Choose the conduit part for permanent millwork in courtrooms, clinical and hospital conference rooms, government and higher-education buildings, secure facilities and corporate headquarters where the electrical specification requires a hard-wired feed rather than a cord and plug.

Specifications at a Glance

• Outlets: two US AC, two USB Type-A, with 6 ft conduit
• AC power: 125 VAC, 50-60 Hz, 12 A max total
• USB power: 5 VDC, 4.0 A, 20 watts total
• Enclosure: 2.40 x 4.20 x 4.00 in (61 x 107 x 102 mm)
• Weight: 2.4 lbs (1.1 kg)

Also referenced as Extron ACUSB222US, AC-USB-222-US, part number 60138420.
