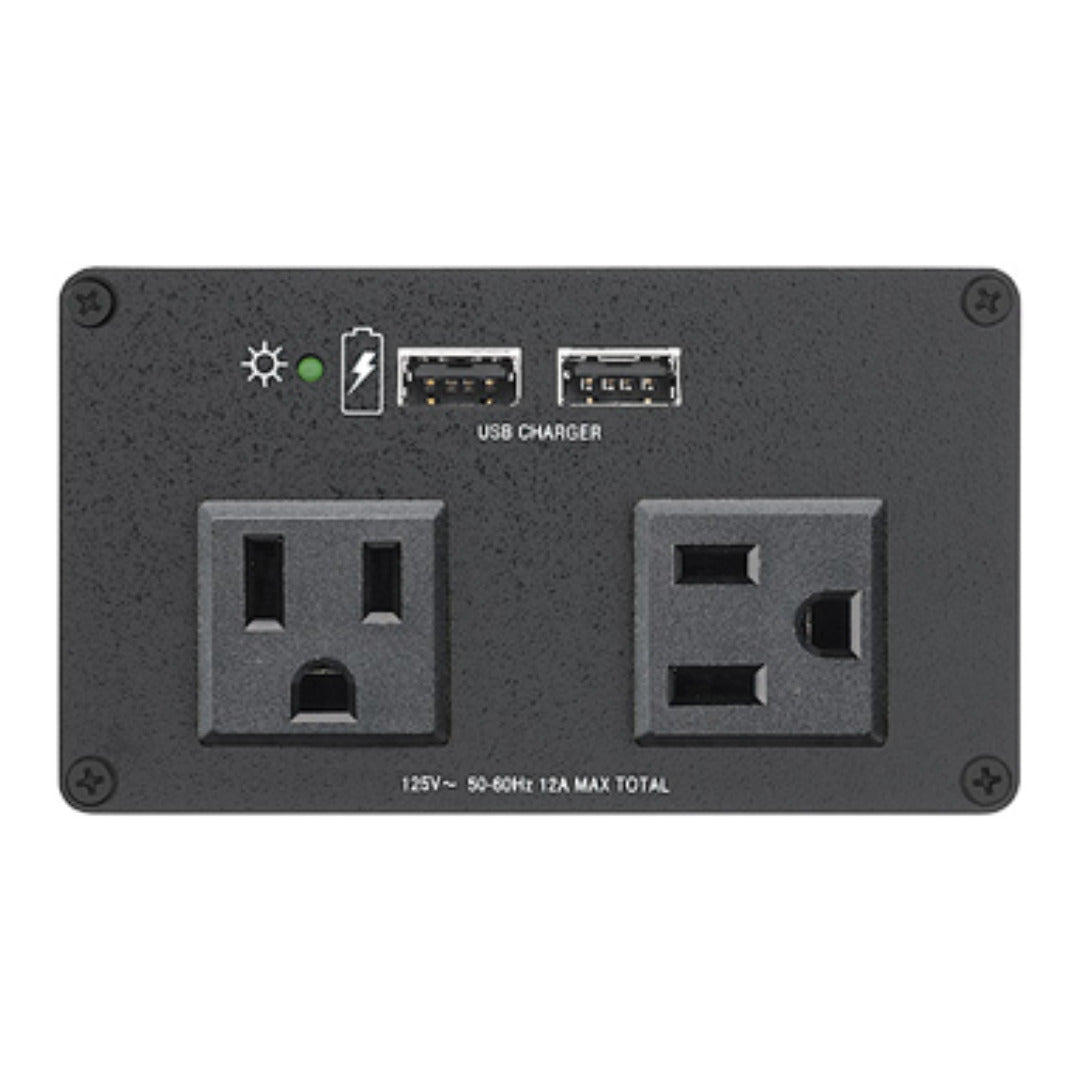

Extron AC+USB 222 US (part number 60-1384-01) — a Cable Cubby Series power module with two US AC outlets and two USB Type-A charging ports.

North American rooms get the higher-capacity layout: two unswitched 125 V outlets rather than one, plus a pair of USB Type-A ports. That means a presenter's laptop and a second device can draw mains power while phones and tablets charge from USB, all through the same enclosure lid. The AC circuit is rated 125 VAC, 50-60 Hz at 12 A total. USB output is more generous than the export versions too, at 5 VDC and 4.0 A for 20 watts across the two connectors. The US chassis is deeper than the non-US module at 4.00 in, and the attached AC cord needs a further 2.50 in of clearance for its bend radius.

Key Capabilities

• Two unswitched US AC outlets plus two USB Type-A ports
• 125 VAC, 50-60 Hz mains with a 12 A total maximum
• USB delivers 5 VDC at 4.0 A, 20 watts total across both ports
• Draws 24.4 watts and dissipates only 18.5 BTU/hr
• Convection cooled with no vents and no fan
• Metal chassis, 2.5 lbs (1.1 kg), 2.40 x 4.20 x 4.00 in
• UL and c-UL listed, 3-year parts and labor warranty

Where It Is Used

This is the workhorse US module for corporate boardrooms and huddle rooms, university lecterns and seminar tables, training and briefing suites, medical imaging reading rooms and control-room consoles, wherever a Cable Cubby has to supply mains power and USB charging from one opening.

Specifications at a Glance

• Outlets: two US AC, two USB Type-A
• AC power: 125 VAC, 50-60 Hz, 12 A max total
• USB power: 5 VDC, 4.0 A, 20 watts total
• Enclosure: 2.40 x 4.20 x 4.00 in (61 x 107 x 102 mm)
• Weight: 2.5 lbs (1.1 kg)

Also referenced as Extron ACUSB222US, AC-USB-222-US, part number 60138401.
