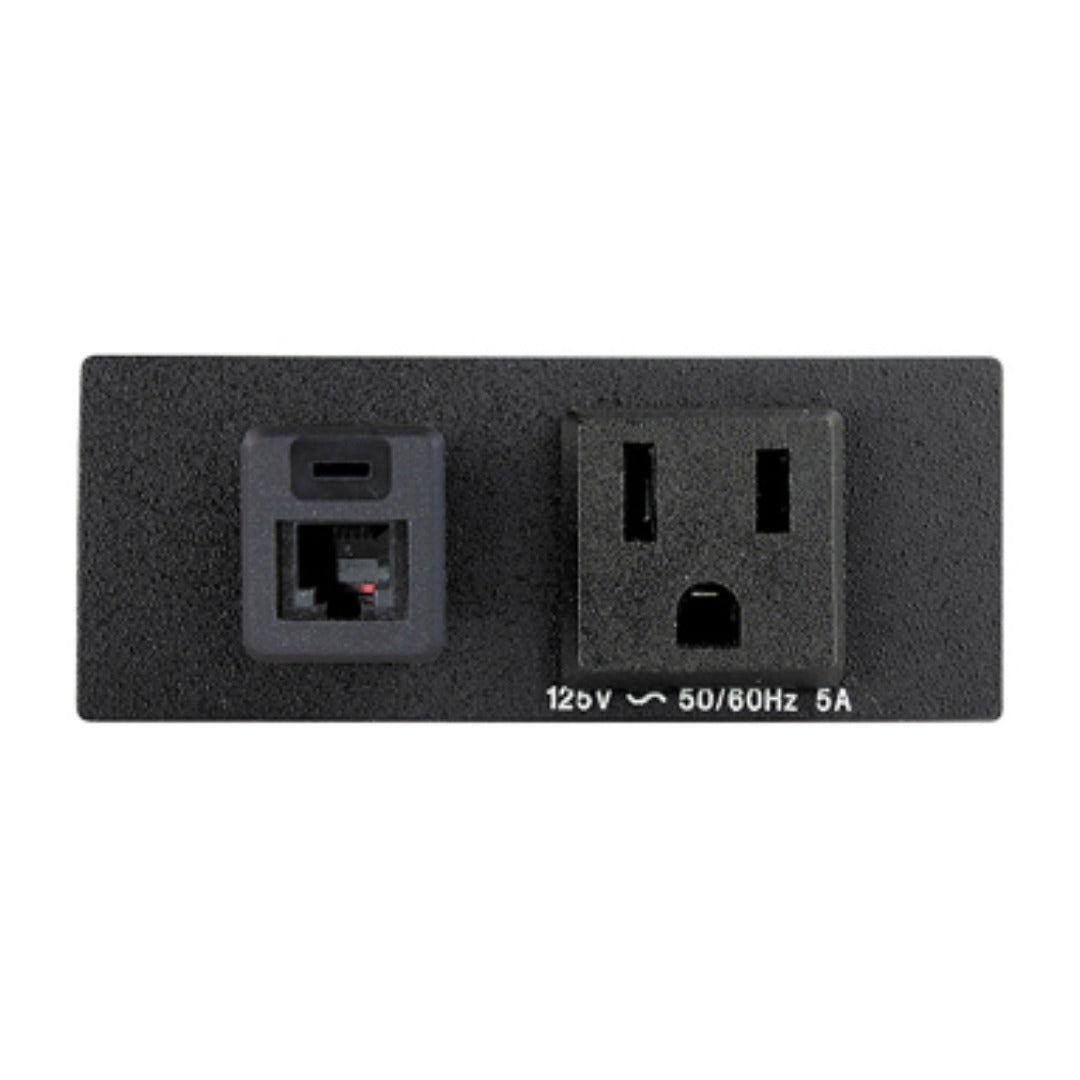

Extron AC Net AAP (part number 70-150-02) — the earlier US black build of Extron's AC outlet and RJ-45 AAP connectivity module, now retired by the manufacturer.

This part sits in the same US double-space format Extron still ships today: a 1.39 by 3.50 inch black faceplate, metal body, one unswitched mains socket and a network barrel. Because Extron has retired 70-150-02, it is normally bought to match an existing furniture build where every other plate on the table already carries this exact part number and finish, and a visual mismatch would be obvious.

Key Capabilities

• Unswitched AC outlet rated 125 VAC, 50-60 Hz, 12 A maximum
• RJ-45 CAT 5e female-to-female barrel for a wired network drop
• Black double-space AAP faceplate measuring 1.39" H x 3.50" W
• Supplied with a nine-foot (2.74 m) NEMA 5-15 cord, 0.29" outer diameter
• Metal enclosure mounting into optional Extron AAP frames
• 1.1 lb (0.50 kg); c-UL and UL listed; 3-year parts and labor warranty

Where It Is Used

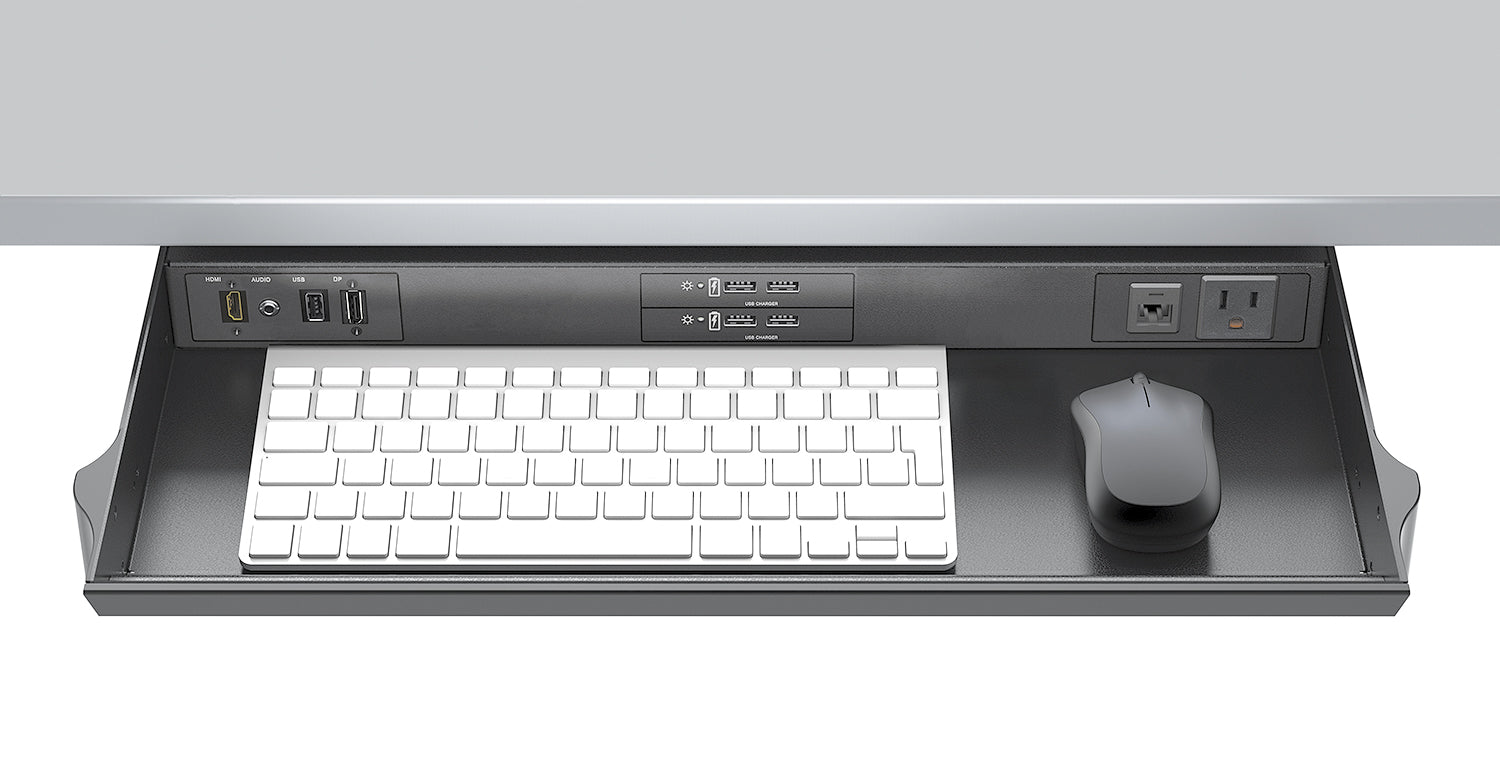

Boardroom and classroom furniture, lecterns and equipment credenzas built out during the years this part shipped. Leave at least 2.77 inches of depth behind the plate, and install only in UL-listed assemblies that take AAP or MAAP modules, or in a UL-listed junction box with the provided faceplate.

Specifications at a Glance

• Power: 125 VAC, 50-60 Hz, 12 A max
• Faceplate: 1.39" H x 3.50" W, double-space AAP, black
• Weight: 1.1 lb (0.50 kg)
• Extron status: Retired

Also referenced as Extron ACNetAAP, AC-Net-AAP, part number 7015002.
