Extron AC 102 US conduit model (part number 60-1385-20) — the hard-wired variant of the North American AC power module for Extron Cable Cubby Series enclosures.

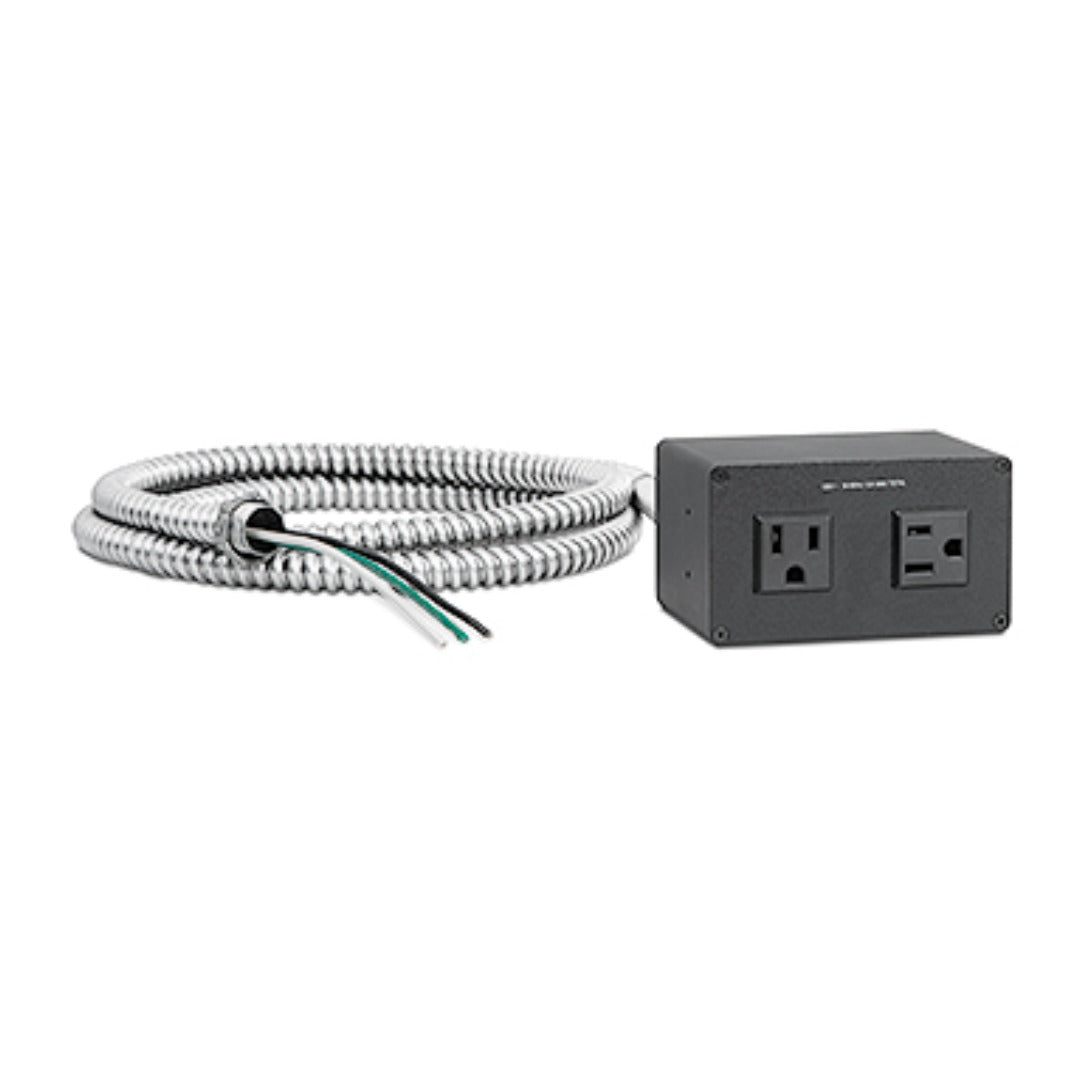

Many commercial fit-outs will not accept a plug-and-cord connection to furniture power; the electrical inspector wants the module wired back to a junction box. That is what this part number is for. Instead of an AC cord, the 60-1385-20 leaves the chassis with 6 ft (1.83 m) of flexible conduit for termination in a UL listed junction box. It still presents two unswitched US outlets at the enclosure face and runs at 125 VAC, 50-60 Hz with a 12 A maximum. Because the conduit needs room to turn, allow an extra 5.00 in of depth behind the panel.

Key Capabilities

• Two unswitched US AC outlets served through a hard-wired feed
• 6 ft (1.83 m) of attached flexible conduit for junction-box wiring
• 125 VAC, 50-60 Hz with a 12 A maximum total load
• Allow 5.00 in of extra depth for the conduit bend radius
• UL and c-UL listed; also CE, NOM, RoHS and WEEE compliant
• Lighter than the cord version at 1.6 lbs (0.7 kg)

Where It Is Used

Specify the conduit version for permanent millwork in courtrooms, hospital and clinical conference rooms, government and higher-education buildings, and any corporate fit-out where local electrical code or the project specification requires furniture power to be hard-wired rather than plugged into a wall receptacle.

Specifications at a Glance

• Outlets: two unswitched US AC, with 6 ft (1.83 m) conduit
• Power: 125 VAC, 50-60 Hz, 12 A max total
• Enclosure: 2.40 x 4.20 x 2.99 in (61 x 107 x 76 mm)
• Weight: 1.6 lbs (0.7 kg)
• Regulatory: UL, c-UL, CE, NOM, RoHS, WEEE

Also referenced as Extron AC102US, AC-102-US, part number 60138520.
