Extron AC 102 EU (part number 60-1385-03) — the continental European two-outlet AC power module for Extron Cable Cubby Series cable access enclosures.

This is the most widely specified power module in the AC 100 range for European rooms. It occupies the power bay of a Cable Cubby enclosure and presents a pair of unswitched Europe-standard mains outlets at the working surface, so meeting participants plug laptop supplies in directly instead of hunting for a wall socket. Electrically it runs from 240 VAC at 50-60 Hz and permits a combined 10 A draw. The AC lead is detachable, letting the integrator size the run to the table or lectern being fitted.

Key Capabilities

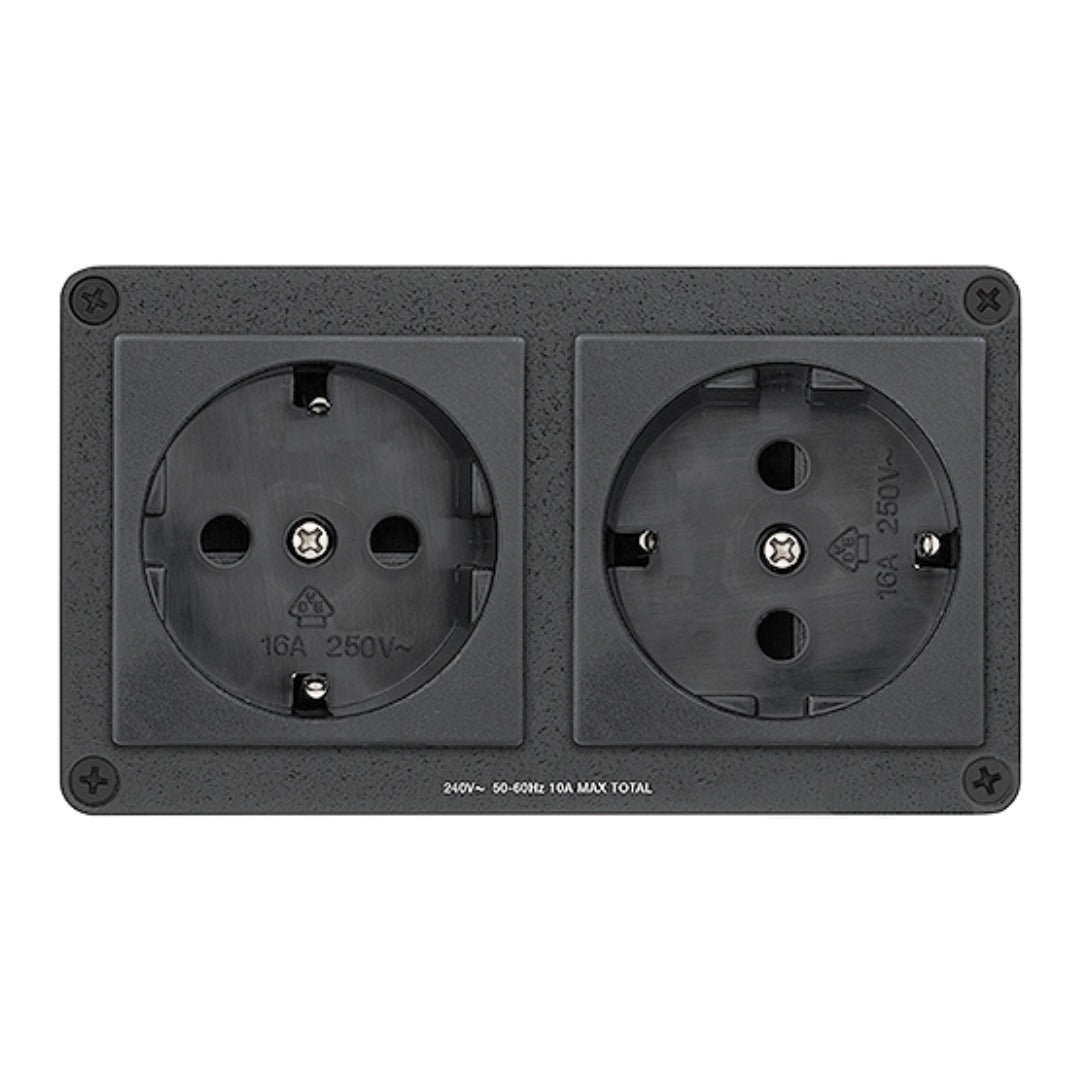

• Two unswitched Europe AC outlets in a single Cable Cubby power bay
• 240 VAC, 50-60 Hz operation with 10 A maximum total load
• Detachable AC power cord for clean under-surface routing
• Cold-rolled steel face panel over an extruded aluminium body
• Just 0.8 lbs (0.4 kg) in a 2.40 x 4.20 x 2.99 in package
• Operating range of 0 to +50 degrees C at 10 to 90 percent humidity

Where It Is Used

Common deployments include European boardrooms and huddle spaces, lecture theatre lecterns, training and briefing rooms, broadcast and control-room desks, and bespoke AV furniture programmes — essentially any project where a Cable Cubby enclosure must deliver both mains power and AV connectivity through one opening in the surface.

Specifications at a Glance

• Outlets: two unswitched Europe AC
• Power: 240 VAC, 50-60 Hz, 10 A max total
• Enclosure: 2.40 x 4.20 x 2.99 in (61 x 107 x 76 mm)
• Weight: 0.8 lbs (0.4 kg)
• Compliance: CE, NOM, RoHS, WEEE

Also referenced as Extron AC102EU, AC-102-EU, part number 60138503.
