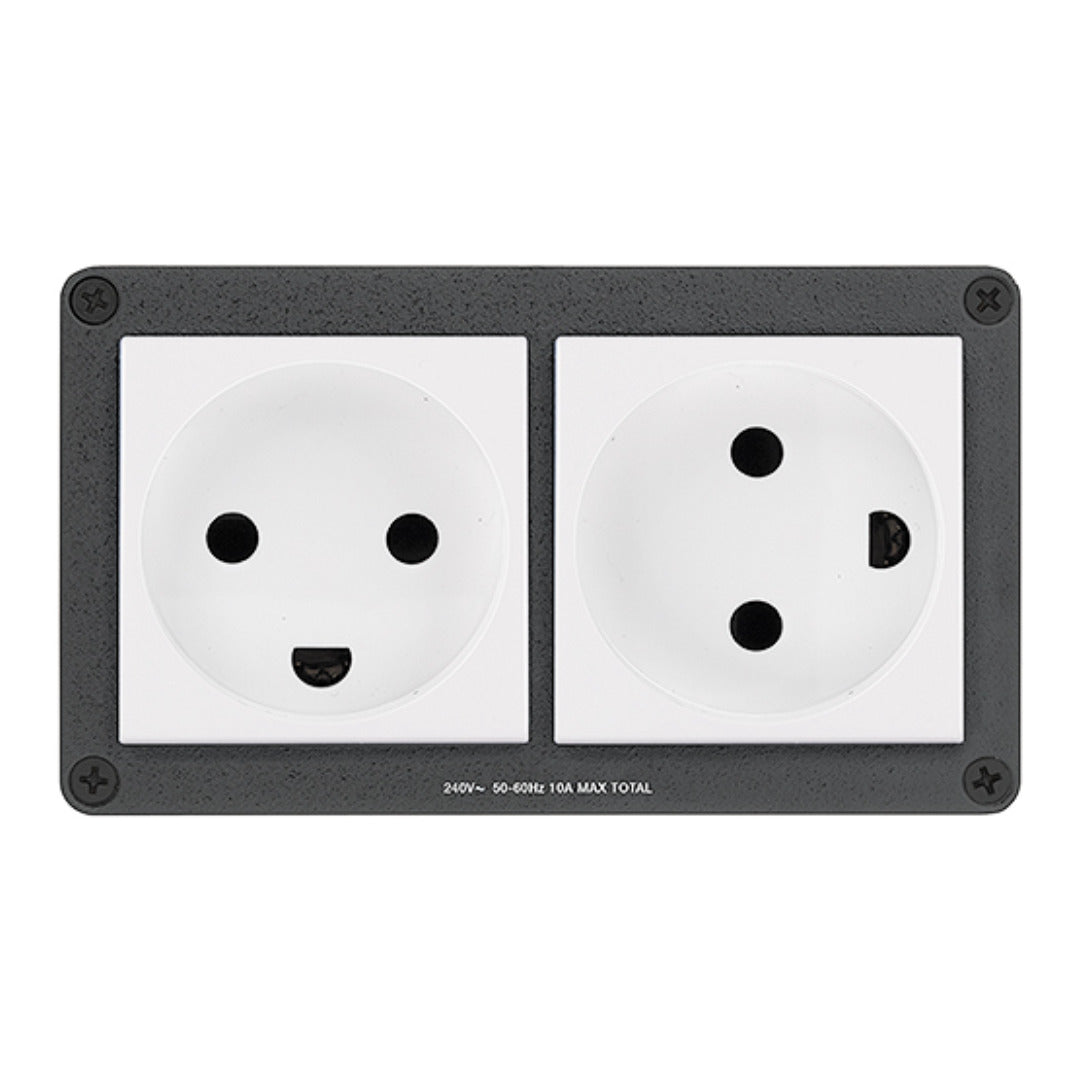

Extron AC 102 DK (part number 60-1385-09) — a Denmark-standard dual AC outlet module for Extron Cable Cubby Series cable access enclosures.

Danish rooms need sockets that match the local standard, and this module supplies two of them from inside a Cable Cubby enclosure. Once fitted into the enclosure's power bay, the AC 102 DK puts mains power within reach of everyone seated at the table, which removes the usual clutter of extension leads snaking toward a wall socket. Supply is 240 VAC at 50-60 Hz, and the two outlets share a 10 A total ceiling. The mains lead is detachable, so cord length is decided by the furniture layout rather than fixed at the factory.

Key Capabilities

• Two unswitched Denmark AC outlets served from one Cable Cubby bay
• 240 VAC, 50-60 Hz with a 10 A maximum shared across both outlets
• Detachable mains lead keeps under-table cable runs tidy
• Steel face panel with an extruded aluminium chassis
• Weighs 0.8 lbs (0.4 kg) and needs 2.99 in of depth behind the panel
• Certified to CE, NOM, RoHS and WEEE requirements

Where It Is Used

This module suits Danish corporate boardrooms, university seminar rooms, municipal council chambers and hotel conference suites — any space where AV furniture carries a Cable Cubby enclosure and the design brief calls for mains power and signal connectivity to emerge from a single, discreet surface cutout.

Specifications at a Glance

• Outlets: two unswitched Denmark AC
• Power: 240 VAC, 50-60 Hz, 10 A max total
• Enclosure: 2.40 x 4.20 x 2.99 in (61 x 107 x 76 mm)
• Weight: 0.8 lbs (0.4 kg)
• Warranty: 3 years parts and labor

Also referenced as Extron AC102DK, AC-102-DK, part number 60138509.
