Extron AC 102 CN (part number 60-1385-11) — a China-standard two-outlet AC power module for Extron Cable Cubby Series cable access enclosures.

Rooms fitted out for the Chinese market need mains sockets that match local plugs, and the AC 102 CN supplies them inside the same Cable Cubby enclosure that already carries the AV connectivity. Two unswitched China-pattern outlets sit behind the enclosure lid, within arm's reach of anyone seated at the table, so power for notebooks and chargers no longer depends on a floor box or a trailing power strip. The module runs on 240 VAC at 50-60 Hz and supports a combined draw of 10 A. Its mains lead detaches, which lets the installer choose the run length.

Key Capabilities

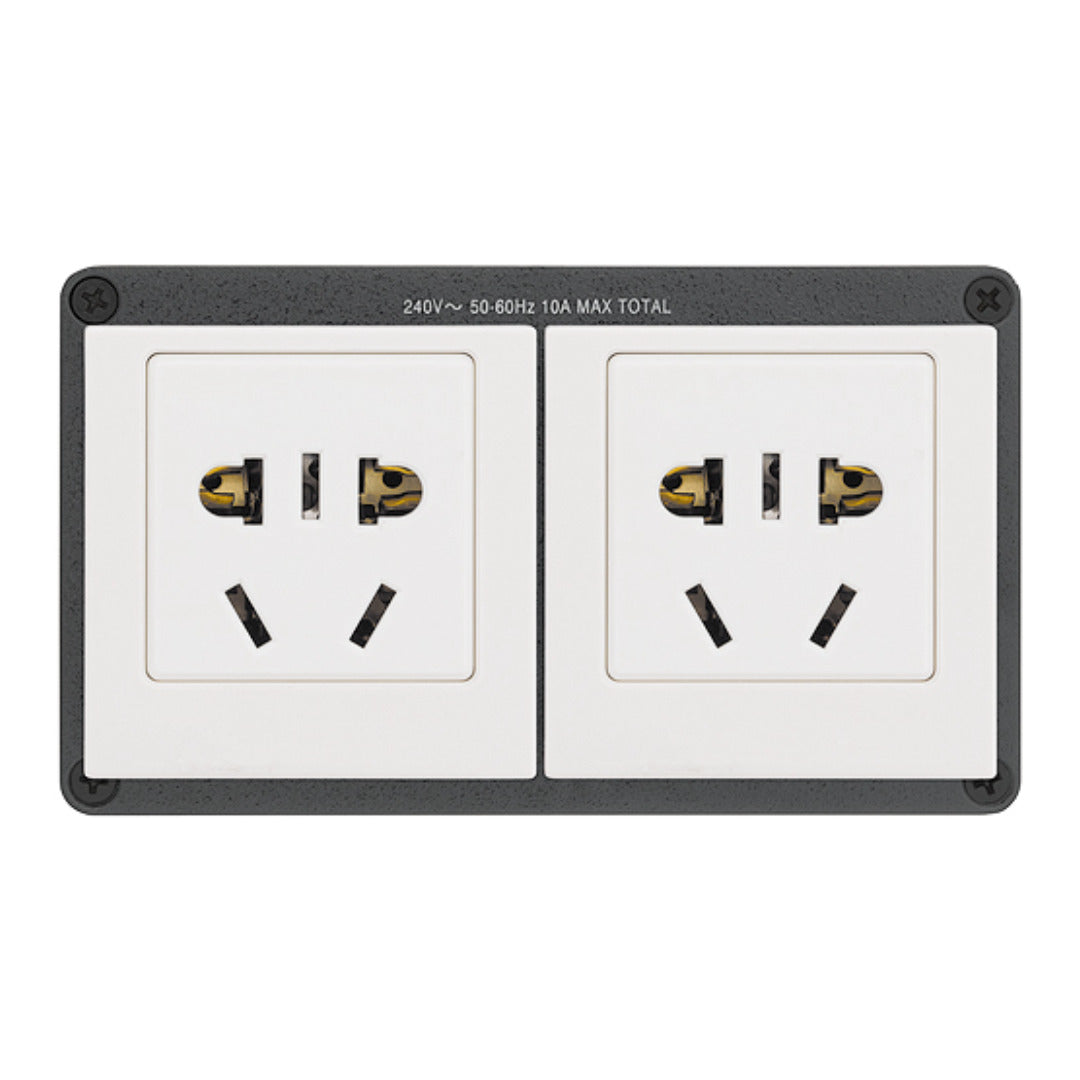

• Two unswitched China-pattern AC outlets in one power bay
• 240 VAC, 50-60 Hz operation, 10 A maximum total
• Detachable AC cord suits varying under-table cable paths
• Steel face panel and extruded aluminium body resist knocks
• 0.8 lbs (0.4 kg) and only 2.99 in deep behind the panel
• Storage rated from -40 to +158 degrees F for shipping and warehousing

Where It Is Used

You will find this module in enterprise boardrooms, government briefing rooms, university lecture halls and hotel conference facilities in China and Hong Kong, wherever an Extron Cable Cubby enclosure has to serve both AV signal connectivity and locally compliant mains power from a single surface cutout.

Specifications at a Glance

• Outlets: two unswitched China AC
• Power: 240 VAC, 50-60 Hz, 10 A max total
• Enclosure: 2.40 x 4.20 x 2.99 in (61 x 107 x 76 mm)
• Weight: 0.8 lbs (0.4 kg)
• Mounting: fits Cable Cubby enclosures

Also referenced as Extron AC102CN, AC-102-CN, part number 60138511.
