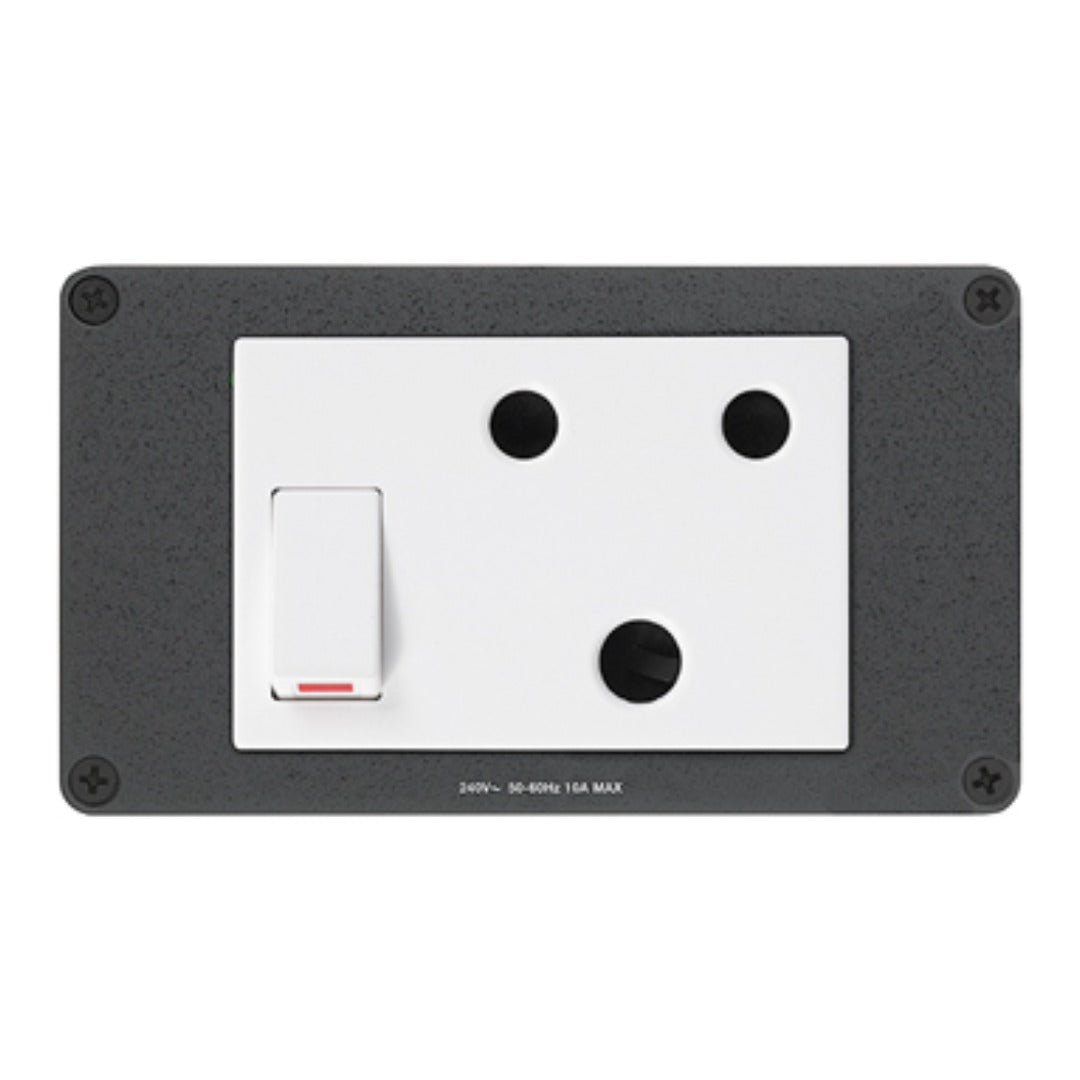

Extron AC 101 SA (part number 60-1385-08) — the South Africa single-outlet AC power module for Extron Cable Cubby Series cable access enclosures.

Note the model number: this is an AC 101, not an AC 102. Where most modules in the AC 100 range carry two outlets, the South African version provides one, because the local socket is physically larger than the patterns used elsewhere. That single unswitched outlet still sits flush in the Cable Cubby power bay and puts mains power at the table surface instead of at a distant wall plate. Supply is 240 VAC at 50-60 Hz with a 10 A maximum, and the AC lead is detachable so the run can be sized on site.

Key Capabilities

• One unswitched South Africa AC outlet in a Cable Cubby power bay
• 240 VAC, 50-60 Hz supply rated to 10 A maximum total
• Detachable AC cord lets the installer set the run length
• Cold-rolled steel face panel over an extruded aluminium body
• Just 0.8 lbs (0.4 kg) in a 2.40 x 4.20 x 2.99 in enclosure
• Operates from 0 to +50 degrees C at 10 to 90 percent humidity

Where It Is Used

South African integrators fit this module into boardroom and conference-table builds for corporate head offices, university lecture venues, provincial and municipal meeting rooms, and hotel or convention-centre AV furniture, wherever a Cable Cubby enclosure must combine locally compliant power with signal connectivity.

Specifications at a Glance

• Outlets: one unswitched South Africa AC
• Power: 240 VAC, 50-60 Hz, 10 A max total
• Enclosure: 2.40 x 4.20 x 2.99 in (61 x 107 x 76 mm)
• Weight: 0.8 lbs (0.4 kg)
• Warranty: 3 years parts and labor

Also referenced as Extron AC101SA, AC-101-SA, part number 60138508.
