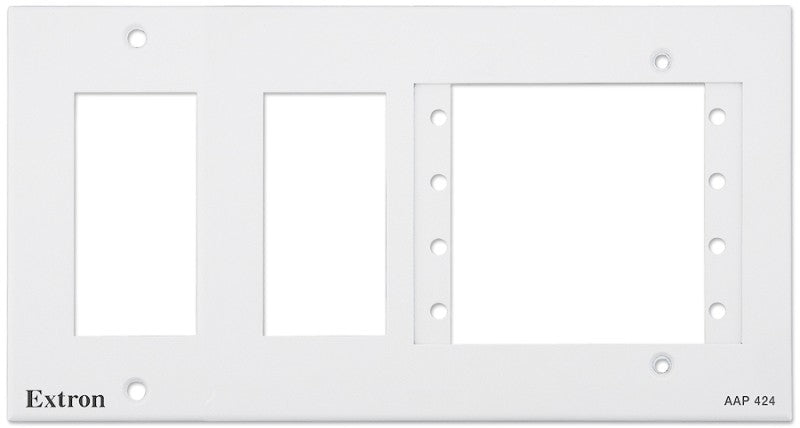

Extron AAP 424 (part number 70-1070-03) — a white four-gang AV connectivity mounting frame for decorator-style and AAP modules.

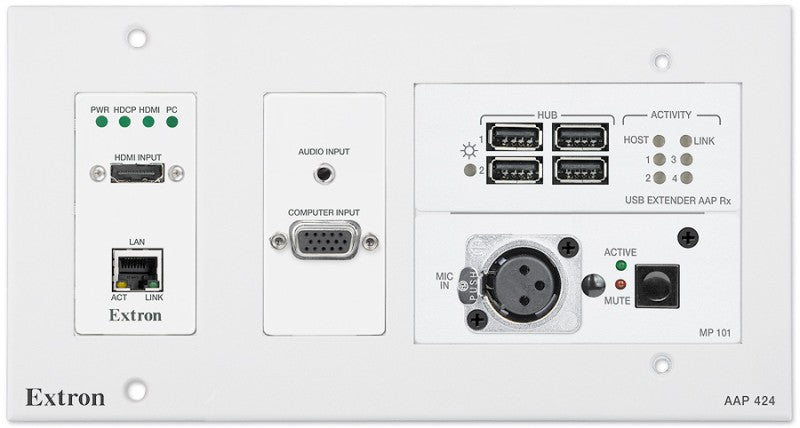

Where the three-gang AAP 314 accepts a single decorator-style module, this four-gang frame takes two — or one dual-width decorator module such as an Extron DTP transmitter — alongside openings for up to four single-space AAP AV Connectivity Modules. It is the frame to reach for when a room needs both a transmitter and a full set of AV, audio, network or control connectors presented through one opening. The AAP 424 fastens directly to a wall, lectern or other flat surface, and the supplied mud ring finishes the cutout neatly in drywall.

Key Capabilities

• Openings for two decorator-style modules, or one dual-width module
• Additional openings for up to four single-space AAP modules
• Mounts directly to a wall, lectern or other flat surface
• Compatible with the SMB 104 surface mount box and EWB 104 wall box
• Mud ring included for clean drywall finishing
• Supplied with #6-32 mounting screws in 1/2 in and 1/4 in lengths
• Available in a white finish

Where It Is Used

Used in conference rooms and boardrooms, lecture halls and classrooms, training centres and briefing rooms, and custom lectern joinery, wherever a wall or podium face has to carry a transmitter plus a substantial mix of connectors without turning into a patchwork of separate plates.

Specifications at a Glance

• Frame size: four-gang
• Openings: two decorator-style modules, up to four single-space AAPs
• Finish: white
• Included: mud ring and mounting screws
• Box compatibility: SMB 104, EWB 104

Decorator-style modules and AAP modules are ordered separately.

Also referenced as Extron AAP424, AAP-424, part number 70107003.
