Extron Captive Screw Connector (part number 100-461-01) is a replacement captive screw terminal plug from Extron's connector range, supplied ten pieces to a package.

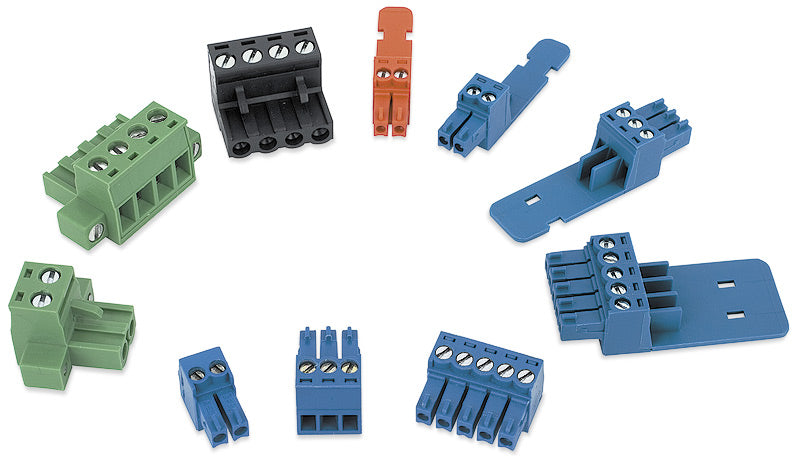

Extron builds this family so that a lost or damaged terminal plug does not turn into a device swap. The connectors carry power feeds, balanced and unbalanced line-level audio, IR and serial control links, and amplified loudspeaker output, and the range spans two, three, four, five and six position bodies across two contact pitches, with and without an integrated strain relief tail. Because each conductor is clamped by its own captive screw, a channel can be re-landed in the field with a screwdriver rather than a soldering iron.

Key Capabilities

• Genuine Extron replacement captive screw plug, ordered by part number 100-461-01.
• Screw terminals allow field re-termination without solder or crimp tooling.
• Family covers 2, 3, 4, 5 and 6 position bodies across Extron equipment.
• Used for power, line-level audio, IR or serial control and speaker output.
• Supplied as a pack of ten connectors for install stock and spares kits.

Where It Is Used

Boardroom and classroom AV racks, lecture theatres, broadcast and security control rooms, digital signage cabinets, and medical imaging or clinical display suites - wherever Extron switchers, amplifiers, control processors and interfaces terminate audio, control or power on captive screw blocks.

Wiring Notes

Extron's audio connector wiring card sets roughly 3/16 in (5 mm) as the length of copper to expose on a captive screw termination. Longer, and adjacent contacts risk bridging; shorter, and the conductor can pull free even with the screw tightened. Leave the strands untinned - tinned wire loses its shape and the joint slackens over time. On unbalanced audio, the cable sleeve lands on the ground contact rather than the negative.

Specifications at a Glance

• Manufacturer: Extron
• Part number: 100-461-01
• Type: captive screw terminal plug
• Package quantity: 10

Note: Extron's published part table for the Captive Screw Connectors range does not currently list 100-461-01, so the pole count, pitch and colour for this part are not stated here. Contact Ampronix to confirm the exact configuration before ordering.

Also referenced as Extron 100461-01, Extron captive screw connector 100-461-01, part number 10046101.
