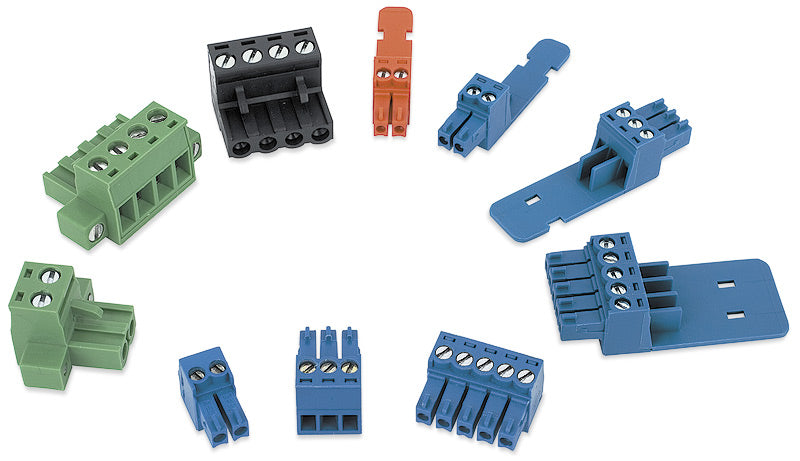

Extron 3.5 mm, 6 pole, blue, no tail Captive Screw Connector
- • Extron 3.5 mm 6-pole connector, blue, no tail
- • Wire range 16-28 AWG, no tail
- • 10 pieces per package
- • Sales, replacement and exchange
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Manufacturer: Extron; Model: 3.5 mm, 6 pole, blue, no tail; Part number: 101-007-01 (also written 10100701)
The Extron 3.5 mm 6-pole blue captive screw connector without tail (101-007-01) is a new replacement connector available through Ampronix, supplied 10 per package. Blue 6-pole plug, no strain relief tail - the widest pole count in the 3.5 mm captive screw range. Accepts 16-28 AWG conductors. Used for combined audio, IR, and serial control groups on a single block. Strip to ~3/16 in bare; do not tin; for unbalanced, connect sleeve to ground position.
Key capabilities
- 6-pole, 3.5 mm captive screw contact pitch; blue housing; no tail - widest count in the range
- Carries combined audio, IR, and serial control groups on one block
- No tail for tight panels and shallow enclosures
- Wire range: 16-28 AWG; 10 pieces per package
Where it is used
Large boardrooms, divisible meeting spaces, broadcast and command-center control rooms, and clinical display suites where Extron control processors, audio processors, and interfaces use 6-pole 3.5 mm captive screw blocks.
Specifications at a glance
- Contact pitch: 3.5 mm; poles: 6; color: blue; tail: no; wire: 16-28 AWG; qty: 10
Frequently asked questions about the Extron 3.5 mm, 6 pole, blue, no tail Captive Screw Connector 101-007-01
Is the Extron 3.5 mm 6-pole blue no tail 101-007-01 available new?
As an authorized Extron distributor, Ampronix offers the 3.5 mm 6-pole blue no tail connector (101-007-01) as a new item.
When would I use the 6-pole 101-007-01 instead of the 5-pole 100-460-01?
Use the 6-pole when the Extron equipment port requires six conductors - for example, a combined stereo balanced audio plus serial control block. Confirm pole count against your product's wiring documentation.
Does Ampronix offer replacement and exchange for Extron captive screw connectors?
Ampronix supplies the full range of Extron captive screw connectors in all pole counts and colors.
Ampronix is an authorized Extron distributor and carries a full range of Extron captive screw connector accessories.
Also referenced as Extron 3.5mm 6pole blue no tail, 3-5-mm-6-pole-blue-no-tail, part number 10100701.
