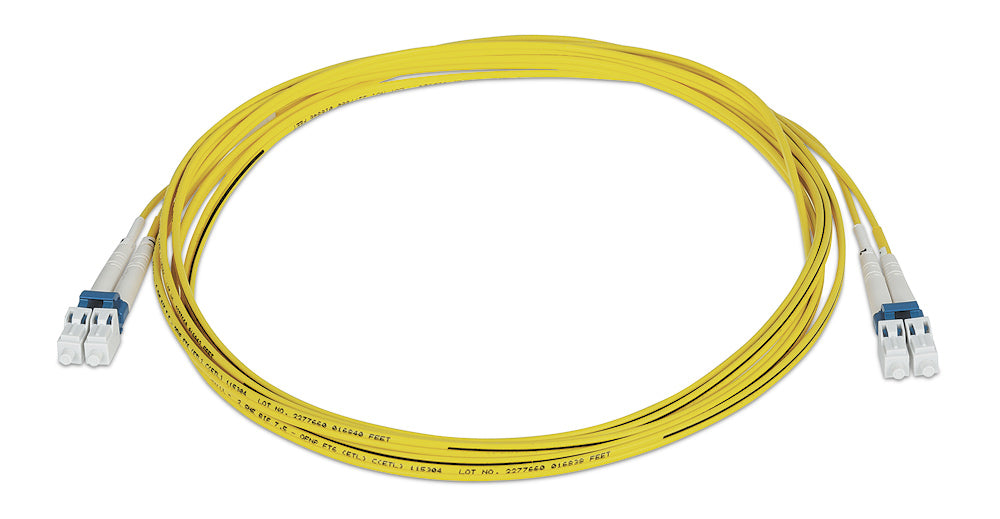

Extron 2LC SM P/10 (part number 26-670-10) — 10 metres (32.8 ft) of pre-terminated duplex singlemode fiber for permanent, plenum-rated links between AV positions.

Ten metres covers a whole room. Wall plate to rack, ceiling projector to head end, camera position to the machine room next door — this is the point where site-terminated fiber starts to look expensive and a factory assembly starts to look sensible. Extron ships it already polished: two singlemode glass fibers, aramid yarn strain relief, a PVC jacket carrying an OFNP FT6 listing, and LC connectors at each end. Bend-insensitive fiber keeps the loss budget honest even where the route forces a tight turn behind a wall box.

Key Capabilities

• Factory-terminated 10 m (32.8 ft) assembly — no field polishing, no fusion splice.
• Two glass singlemode fibers giving independent send and return paths.
• Attenuation rated under 0.5 dB per km at both 1310 nm and 1550 nm.
• ETL and c-ETL listed to OFNP FT6 for runs through air-handling spaces.
• Rated for ambient conditions from 0 to +70 °C.
• Aramid yarn strength members with a 2.0 in (50 mm) installation bend radius.

Where It Is Used

Ten-metre singlemode links are common in lecture halls and auditoriums, hospital imaging and OR integration, courtroom and council chamber AV, broadcast production areas and transport operations centres — room-scale distances that still demand singlemode reach and plenum compliance.

Specifications at a Glance

• Cable length: 10 m (32.8 ft)
• Connector type: LC, ultra physical contact polish
• Fiber: singlemode 8.3 µm, 2 fibers, glass
• Insertion loss: under 0.3 dB per 300 m at 1550 nm
• Regulatory: ETL/c-ETL OFNP FT6, plenum rated

Also referenced as Extron 2LCSMP/10, 2LC-SM-P-10, part number 2667010.
