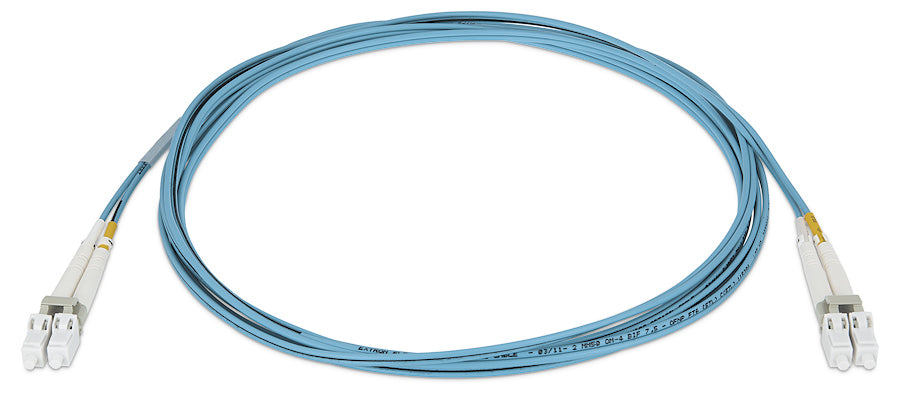

Extron 2LC OM4 MM P/60 LC-LC OM4 Plenum Fiber Optic Cable
- • Extron 2LC OM4 MM P/60 60 m LC-LC plenum fiber cable
- • 60 m (197 ft) duplex OM4 50/125 um multimode
- • OFNP FT6 plenum rated, 3.0 dB/km at 850 nm
- • Sales, replacement and exchange
- • Part# 26-671-60 / 2667160
Product discontinued.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Extron 2LC OM4 MM P/60 (part number 26-671-60) - at 60 meters, the longest factory-terminated assembly in the Extron 2LC OM4 MM P family. Now a retired part number.
This is the maximum stock length in the series, and it exists for the runs that would otherwise force an integrator into bulk fiber and field termination. Sixty meters covers a full building wing, a stadium bowl segment, or a multi-floor riser, delivered as one continuous piece of laser-optimized OM4 glass with factory-polished LC ends at each side. Bend-insensitive fiber matters more at this length, since a long path accumulates more turns.
Key Capabilities
- 60 m (197 ft) - the longest assembly in the 2LC OM4 MM P range.
- One continuous duplex fiber path with factory-polished LC ends.
- Bend-insensitive glass holds a 0.3 in (7.5 mm) radius after installation.
- Under 3.0 dB per km at 850 nm; under 1.2 dB per km at 1300 nm.
- ETL/c-ETL OFNP FT6 plenum rating for concealed building pathways.
- Retired Extron part number.
Where It Is Used
Sixty-meter optical links connect Extron fiber transmitters and receivers across stadium bowls, hospital wings, convention halls and multi-floor corporate risers, replacing long copper AV runs that would otherwise need repeaters or intermediate equipment positions.
Specifications at a Glance
- Length: 60 m (197 ft)
- Optical: multimode 50 µm (OM4) / 125 µm, 2 fibers
- Connectors: LC with UPC polish, 48.5 mm bodies
- Assembly diameter: 0.08 in x 0.16 in (2.0 mm x 4.0 mm)
- Temperature rating: 0 to +70 °C
Frequently asked questions about the Extron 2LC OM4 MM P/60 60 m LC-LC OM4 Plenum Fiber Optic Cable
Does Ampronix sell the Extron 2LC OM4 MM P/60 60 m LC-LC OM4 Plenum Fiber Optic Cable?
Yes. Ampronix is an authorized Extron distributor and sells the Extron 2LC OM4 MM P/60 60 m LC-LC OM4 Plenum Fiber Optic Cable (26-671-60). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron 2LC OM4 MM P/60 60 m LC-LC OM4 Plenum Fiber Optic Cable?
Yes. Ampronix provides sales, replacement and exchange for the Extron 2LC OM4 MM P/60 60 m LC-LC OM4 Plenum Fiber Optic Cable. Call Ampronix for a quote.
Is the Extron 2LC OM4 MM P/60 60 m LC-LC OM4 Plenum Fiber Optic Cable listed under other names?
Yes. The Extron 2LC OM4 MM P/60 60 m LC-LC OM4 Plenum Fiber Optic Cable is also referenced as Extron 2LCOM4MMP60, 2LC-OM4-MM-P-60, part number 2667160.
What are the key features of the Extron 2LC OM4 MM P/60 60 m LC-LC OM4 Plenum Fiber Optic Cable?
Key points: 60 m (197 ft) - the longest assembly in the 2LC OM4 MM P range; One continuous duplex fiber path with factory-polished LC ends; Bend-insensitive glass holds a 0.3 in (7.5 mm) radius after installation; Under 3.0 dB per km at 850 nm; under 1.2 dB per km at 1300 nm. Call Ampronix to confirm details for your application.
Also referenced as Extron 2LCOM4MMP60, 2LC-OM4-MM-P-60, part number 2667160.
Related: Extron products, Video Solutions.
