Extron 2LC OM4 MM P/30 30 m LC-LC OM4 Plenum Fiber Optic Cable 26-671-30
Extron 2LC OM4 MM P/30 30 m LC-LC OM4 Plenum Fiber Optic Cable 26-671-30
Extron 2LC OM4 MM P/30 LC-LC OM4 Plenum Fiber Optic Cable
- • Extron 2LC OM4 MM P/30 30 m LC-LC plenum fiber cable
- • 30 m (98.4 ft) duplex OM4 50/125 um multimode
- • OFNP FT6 plenum rated, 3.0 dB/km at 850 nm
- • Sales, replacement and exchange
- • Part# 26-671-30 / 2667130
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details

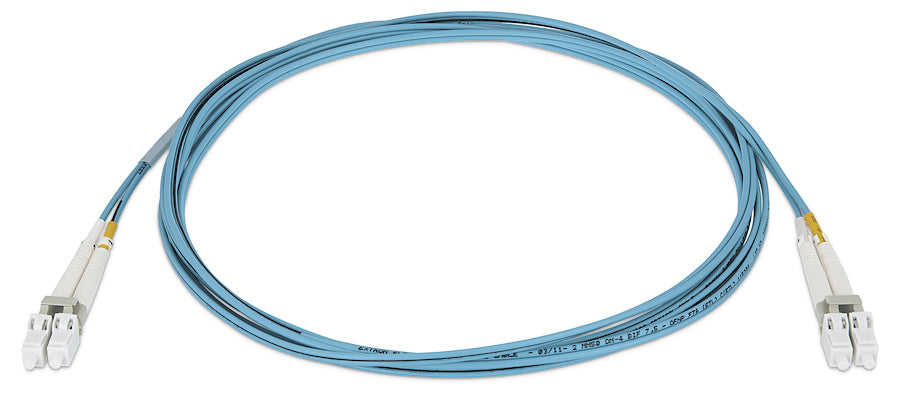

Extron 2LC OM4 MM P/30 (part number 26-671-30) - 30 meters of duplex, plenum-rated OM4 multimode fiber finished with LC connectors.
Thirty meters is the point where a fiber run becomes a floor-level backbone rather than a room cable. One assembly can carry an Extron optical link the length of a large auditorium, across a production floor, or between telecom rooms on the same level. Because the cable arrives factory-terminated and tested, there is no fusion splicing, no field polishing and no connector rework on site - the installer pulls it, dresses it and plugs it in.
Key Capabilities
- 30 m (98.4 ft) continuous run, factory terminated at both ends.
- 50 µm OM4 core with 125 µm cladding, laser-optimized for multimode optics.
- 850 nm attenuation under 3.0 dB per km keeps the loss budget generous at this length.
- Insertion loss under 0.5 dB per 300 m at 850 nm or 1300 nm.
- 2.0 in (50 mm) minimum bend radius during the pull protects the glass.
- ETL/c-ETL OFNP FT6 plenum rating for horizontal ceiling distribution.
Where It Is Used
Runs of this length appear in stadium control rooms, large lecture halls, hospital surgical floors and broadcast production areas, connecting Extron fiber transmitters and receivers across a whole floor plate where plenum-rated jacketing is required by building code.
Specifications at a Glance
- Length: 30 m (98.4 ft)
- Wavelengths: multimode 50 µm (OM4) / 125 µm
- Connectors: LC, UPC polish, 2 fibers
- Jacket and safety: PVC, ETL/c-ETL OFNP FT6 plenum listed
- Temperature rating: 0 to +70 °C
Frequently asked questions about the Extron 2LC OM4 MM P/30 30 m LC-LC OM4 Plenum Fiber Optic Cable
Does Ampronix sell the Extron 2LC OM4 MM P/30 30 m LC-LC OM4 Plenum Fiber Optic Cable?
Yes. Ampronix is an authorized Extron distributor and sells the Extron 2LC OM4 MM P/30 30 m LC-LC OM4 Plenum Fiber Optic Cable (26-671-30). Call Ampronix for a quote.
Does Ampronix offer replacement and exchange for the Extron 2LC OM4 MM P/30 30 m LC-LC OM4 Plenum Fiber Optic Cable?
Yes. Ampronix provides sales, replacement and exchange for the Extron 2LC OM4 MM P/30 30 m LC-LC OM4 Plenum Fiber Optic Cable. Call Ampronix for a quote.
Is the Extron 2LC OM4 MM P/30 30 m LC-LC OM4 Plenum Fiber Optic Cable listed under other names?
Yes. The Extron 2LC OM4 MM P/30 30 m LC-LC OM4 Plenum Fiber Optic Cable is also referenced as Extron 2LCOM4MMP30, 2LC-OM4-MM-P-30, part number 2667130.
What are the key features of the Extron 2LC OM4 MM P/30 30 m LC-LC OM4 Plenum Fiber Optic Cable?
Key points: 30 m (98.4 ft) continuous run, factory terminated at both ends; 50 µm OM4 core with 125 µm cladding, laser-optimized for multimode optics; 850 nm attenuation under 3.0 dB per km keeps the loss budget generous at this length; Insertion loss under 0.5 dB per 300 m at 850 nm or 1300 nm. Call Ampronix to confirm details for your application.
Also referenced as Extron 2LCOM4MMP30, 2LC-OM4-MM-P-30, part number 2667130.
