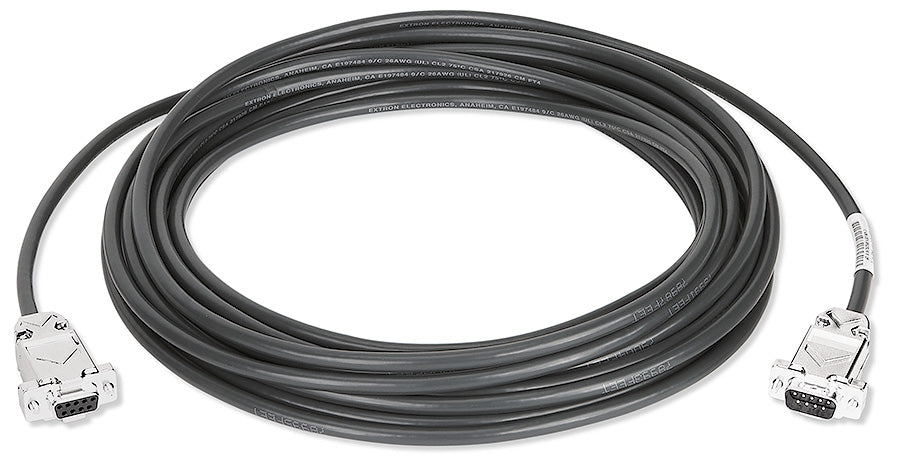

Extron 232/50 (part number 26-433-08) — a 50 ft (15.2 m) 9-pin D male-to-female RS-232 control cable from the Extron 232 Series.

Fifty feet is a building-scale serial run: equipment closet to an adjacent room, rack to a ceiling projector at the far end of an auditorium, control processor to a device on another wall entirely. Extron measures this length tip to tip with the connectors included, so there are no surprises when the cable is dressed into a raceway. Wiring stays straight through across all nine pins, with transmit on 2, receive on 3 and ground on 5, so devices that watch the auxiliary control lines still see them at this distance. The jacket is NEC CM rated for non-plenum spaces.

Key Capabilities

• 50 ft (15.2 m) finished length, measured tip to tip including the connectors.
• 9-pin D male to 9-pin D female termination.
• All nine pins passed straight through, with no crossover.
• Pin 2 transmit, pin 3 receive, pin 5 ground per Extron's cable guide.
• Color-coded conductors, brown on pin 1 through black on pin 9.
• NEC CM rated non-plenum jacket.

Where It Is Used

Control links that leave the room: AV closet to auditorium projector, rack to a remote display wall, head-end to a satellite equipment position. Found in auditoriums, gymnasiums, large lecture halls, worship sanctuaries and hospital conference centers.

Specifications at a Glance

• Length: 50 ft (15.2 m)
• Connectors: 9-pin D male to 9-pin D female
• Pin configuration: all pins passed; Tx on 2, Rx on 3, Gnd on 5
• Jacket rating: NEC CM, non-plenum

Also referenced as Extron 23250, 232-50, part number 2643308.
