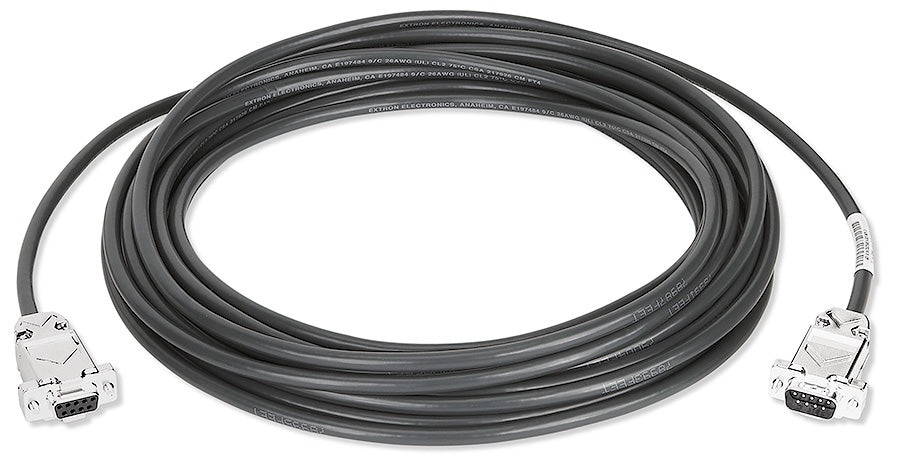

Extron 232/25 (part number 26-433-07) — a 25 ft (7.6 m) 9-pin D male-to-female RS-232 control cable from the Extron 232 Series.

At 25 ft the serial link stops being a rack accessory and becomes part of the room's infrastructure — rack to a far wall, rack to a ceiling-mounted projector, rack to a podium on the other side of a classroom. Extron measures this size tip to tip, connectors included, so the stated length is what you get to work with. All nine pins run straight through, transmit on pin 2 and receive on pin 3 with ground on pin 5, keeping full compatibility with devices that expect the auxiliary lines present. NEC CM rated, non-plenum.

Key Capabilities

• 25 ft (7.6 m) finished length, measured tip to tip including the connectors.
• 9-pin D male to 9-pin D female termination.
• All nine pins passed straight through, pin for pin.
• Pin 2 transmit, pin 3 receive, pin 5 ground per Extron's cable guide.
• Color-coded conductors, brown on pin 1 through black on pin 9.
• NEC CM rated non-plenum jacket.

Where It Is Used

Longer in-room control runs where conduit or raceway is ordinary construction: rack to front-of-house display, control processor to a projector on a ceiling mount, equipment closet to a nearby presentation position in lecture halls, auditoriums, worship venues and hospital classrooms.

Specifications at a Glance

• Length: 25 ft (7.6 m)
• Connectors: 9-pin D male to 9-pin D female
• Pin configuration: all pins passed; Tx on 2, Rx on 3, Gnd on 5
• Jacket rating: NEC CM, non-plenum

Also referenced as Extron 23225, 232-25, part number 2643307.
