Elo 4243L 42" Full HD Open-Frame Touchmonitor Display
Elo 4243L 42" Full HD Open-Frame Touchmonitor Display
Elo 4243L 42" Open-Frame Touchmonitor
- • Elo 4243L | 42 in | 1920 x 1080
- • IntelliTouch | Dual Touch | USB
- • 4000:1 | 178 Degree View | 8 ms
- • VGA + HDMI Video Inputs
- • Slim 65 mm Open Frame | VESA 400
- • Refurbished | E000444 | Free Evaluation
This product has been discontinued by the manufacturer. Contact us for replacement options.
Need service or repair? No matter the age, brand, or manufacturer Ampronix can repair it! Free, no charge for initial evaluations!
Couldn't load pickup availability
Details
Details
Manufacturer: Elo | Model: 4243L | Part number: E000444 (IntelliTouch dual-touch, VGA/HDMI, worldwide), E000445 (IntelliTouch dual-touch, VGA/DVI, Asia), E000447 (no touch, VGA/HDMI)

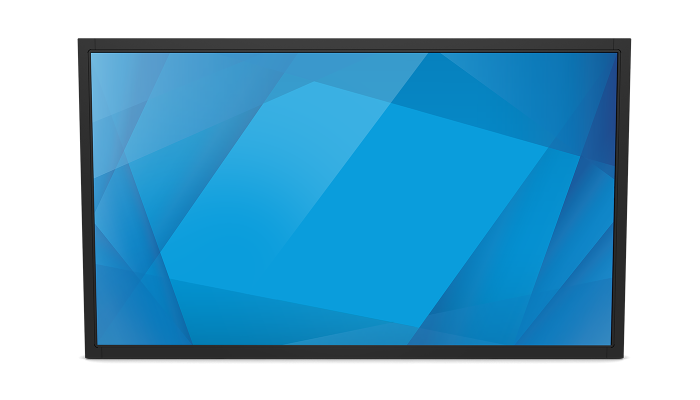

The Elo 4243L is a 42 inch, 16:9 open-frame LCD touchmonitor with LED backlighting, a native 1920 x 1080 Full HD resolution and IntelliTouch dual-touch surface acoustic wave touch over USB. Ampronix supplies the Elo 4243L as a refurbished unit for retail, hospitality, gaming and transportation installations, with sales, service, repair and exchange replacement.
Key capabilities
- 42 inch active matrix TFT LCD with a 931.8 x 524.8 mm active area.
- 1920 x 1080 native resolution with 4000:1 typical contrast and a wide 178 degree viewing angle.
- 500 nit LCD panel brightness, 450 nits typical with IntelliTouch dual-touch.
- IntelliTouch surface acoustic wave dual-touch over USB, with a no-touch version also offered.
- Slim 65.1 mm profile with narrow borders and a water-resistant injection-molded bezel seal.
- Analog VGA plus HDMI (or DVI on Asia models), 400 x 400 mm VESA mounting and side brackets included.
Where it is used
The Elo 4243L is built for retail and hotel kiosks, wayfinding, gaming and transportation installations where a large 42 inch touchscreen is built into a cabinet or wall. The 4243L also serves as a replacement for a failed 4243L in an existing enclosure.
Specifications at a glance
- Model 4243L, part numbers E000444, E000445, E000447
- 42 inch, 1920 x 1080, 16:9, 4000:1 contrast, 178 degree viewing angle
- VGA plus HDMI (VGA and DVI on Asia models), IntelliTouch dual-touch over USB
- 977.8 x 574.7 x 65.1 mm, 20 kg (44 lb) unpackaged
- 104 W typical, 100 to 240 VAC, 50/60 Hz
Frequently asked questions
Is the Elo 4243L available refurbished?
Yes. Ampronix supplies the Elo 4243L as a refurbished unit, subject to availability. Call Ampronix for current stock and pricing.
Does the Elo 4243L support multi-touch?
The Elo 4243L uses IntelliTouch surface acoustic wave touch with dual-touch support over a USB interface. Elo also offered a no-touch version (E000447).
Which video inputs does the Elo 4243L have?
Elo's datasheet lists analog VGA on all models, HDMI on the ET4243L-XXWA models and DVI-D on the ET4243L-XXAA models. Check your unit's model label to confirm which applies.
Which Elo 4243L part numbers does Ampronix cross-reference?
Elo lists E000444 (IntelliTouch dual-touch, VGA and HDMI, worldwide), E000445 (IntelliTouch dual-touch, VGA and DVI, Asia) and E000447 (no touch, VGA and HDMI). Call Ampronix with your label to confirm the exact match.
Does Ampronix repair and exchange the Elo 4243L?
Yes. Ampronix offers sales, service, repair and exchange replacement for the Elo 4243L. Call Ampronix for a free evaluation and quote.
Ampronix supplies the Elo 4243L and offers professional sales, service, repair, and exchange replacement solutions for this product and the broader Elo touchmonitor line.
Also referenced as: ET4243L, Elo4243L, Elo-4243L, Elo ET4243L, 4243L open frame, part numbers E000444, E000445, E000447.
Related: Elo products, Touch Screen Display Monitors.
